Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat armrest to the rear seat back.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the armrest with pass-through bolts to the rear seat armrest.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY)  or SEAT BACK REPLACEMENT - REAR (FOLDING)  .

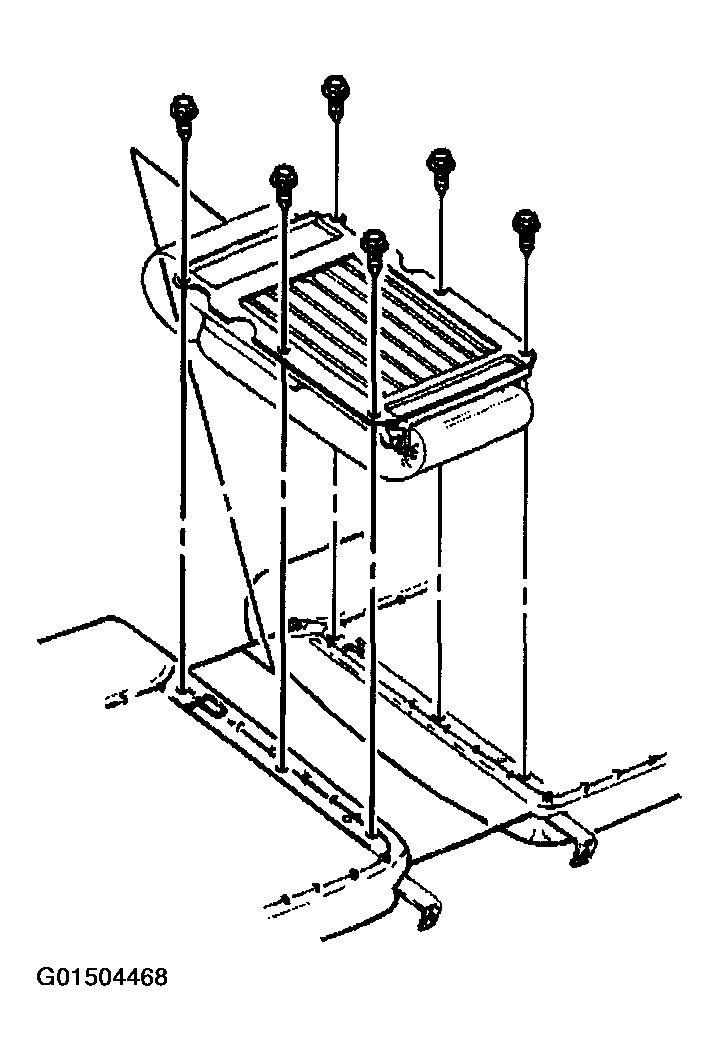

    Fig 1: Installing Rear Seat Armrest To Rear Seat Back
    G01504468Courtesy of GENERAL MOTORS CORP.
