Door Lock/Indicator Schematics (Door Lock Switches)
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

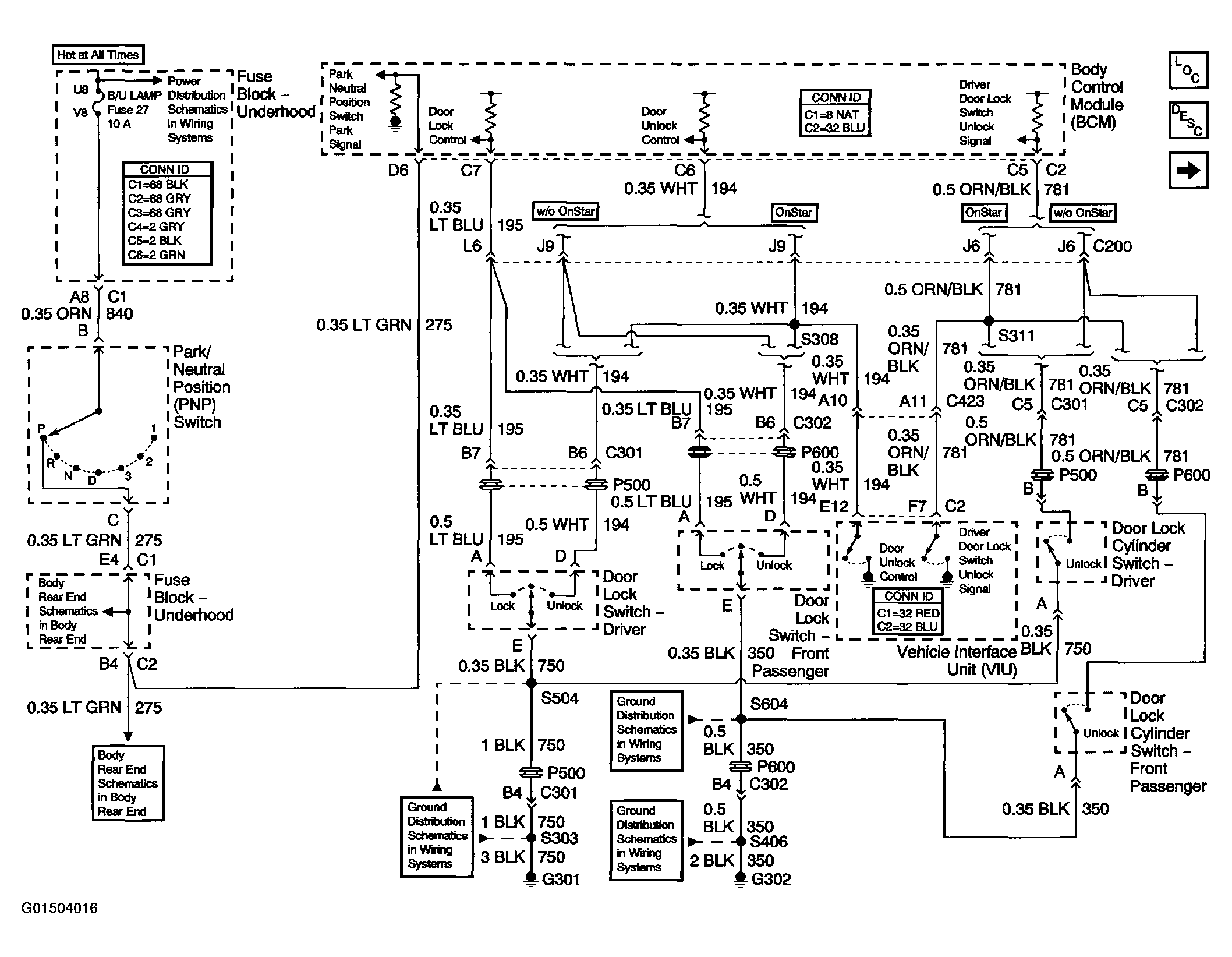

Fig 1: Door Lock/Indicator (Door Lock Switches) Schematics Diagram
Courtesy of GENERAL MOTORS CORP.

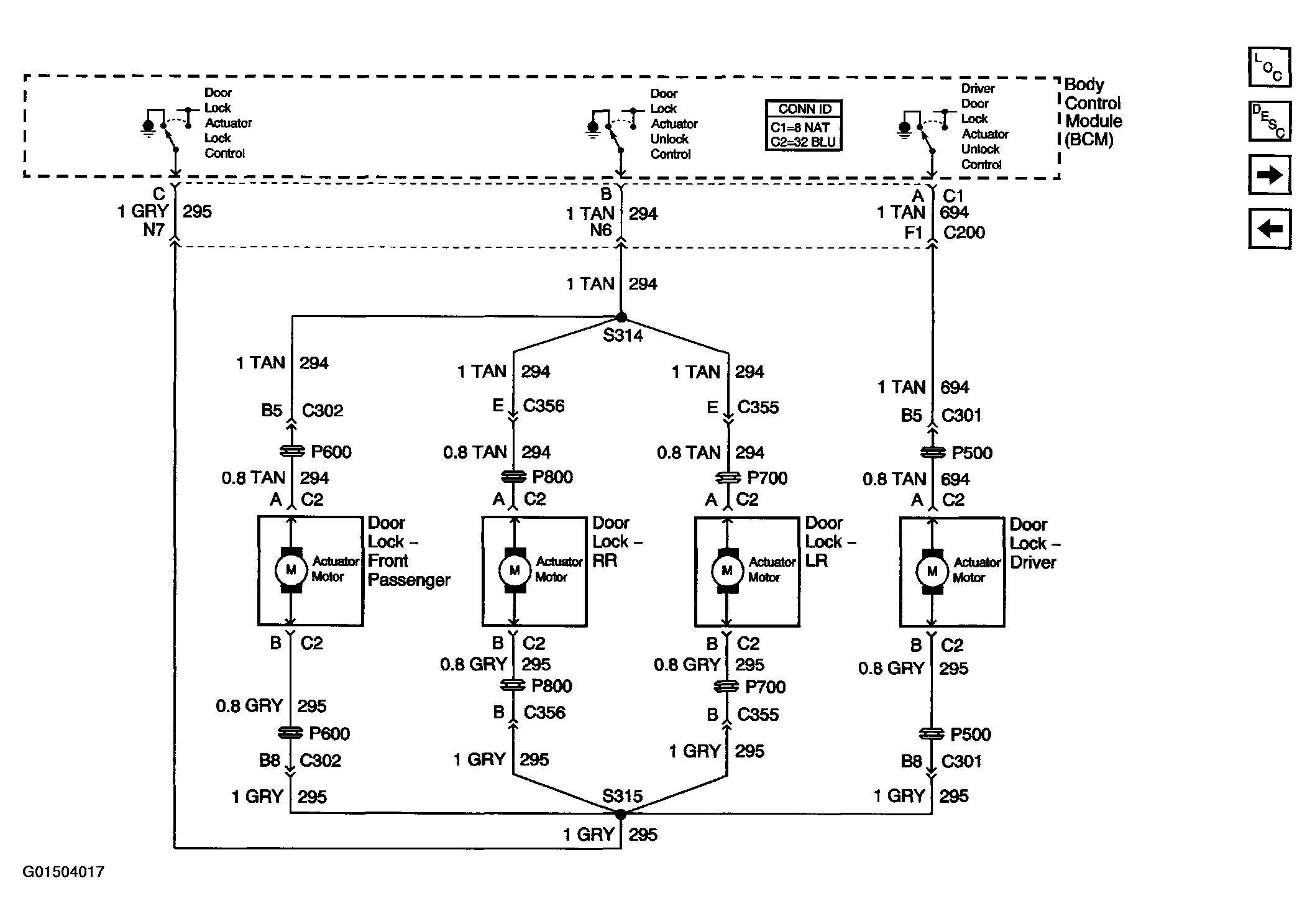

Fig 2: Door Lock/Indicator (Door Lock Actuators) Schematics Diagram
Courtesy of GENERAL MOTORS CORP.

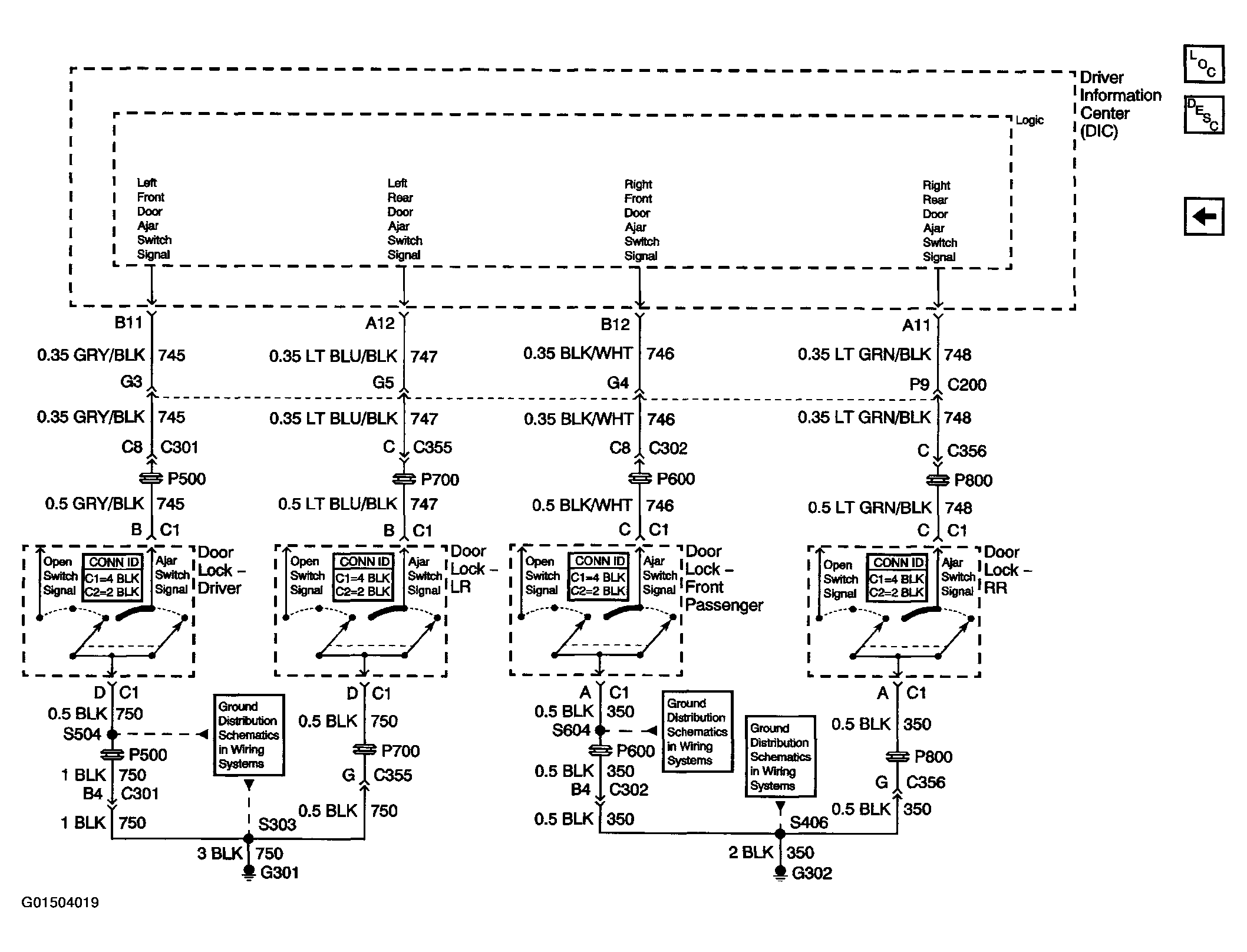

Fig 3: Door Lock/Indicator (Driver Information Center Door Ajar Indicators W/O RPO U40) Schematics Diagram
Courtesy of GENERAL MOTORS CORP.

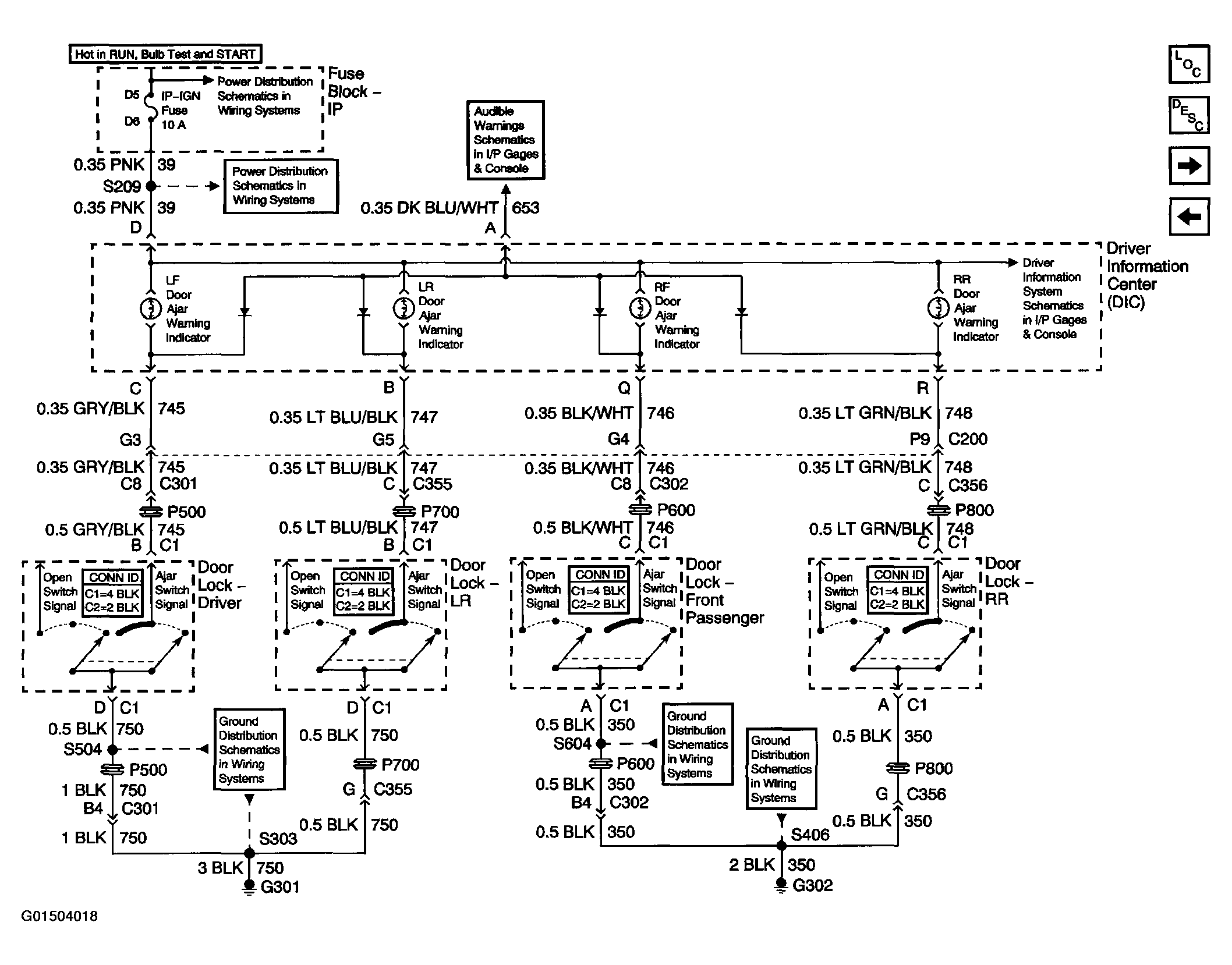

Fig 4: Door Lock/Indicator (Driver Information Center Door Ajar Indicators W/RPO U40) Schematics Diagram
