Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the screw from the front door window run channel.
  4. Pull down to unclip the top edge of the window run channel.
  5. Remove the front door window run channel from the front door.

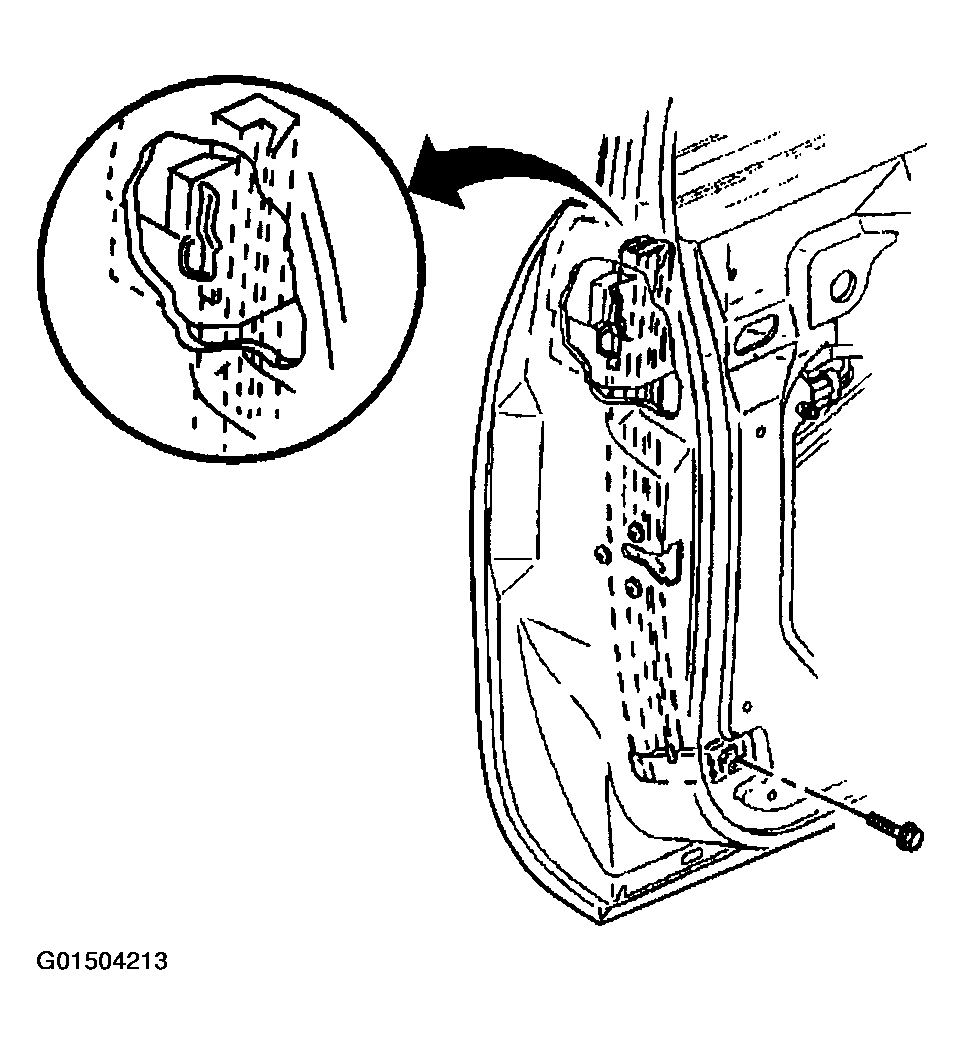

    Fig 1: Removing Front Door Window Run Channel From Front Door
    G01504213Courtesy of GENERAL MOTORS CORP.
