Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the front door inner window belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  4. Remove the window to regulator bolts (2).

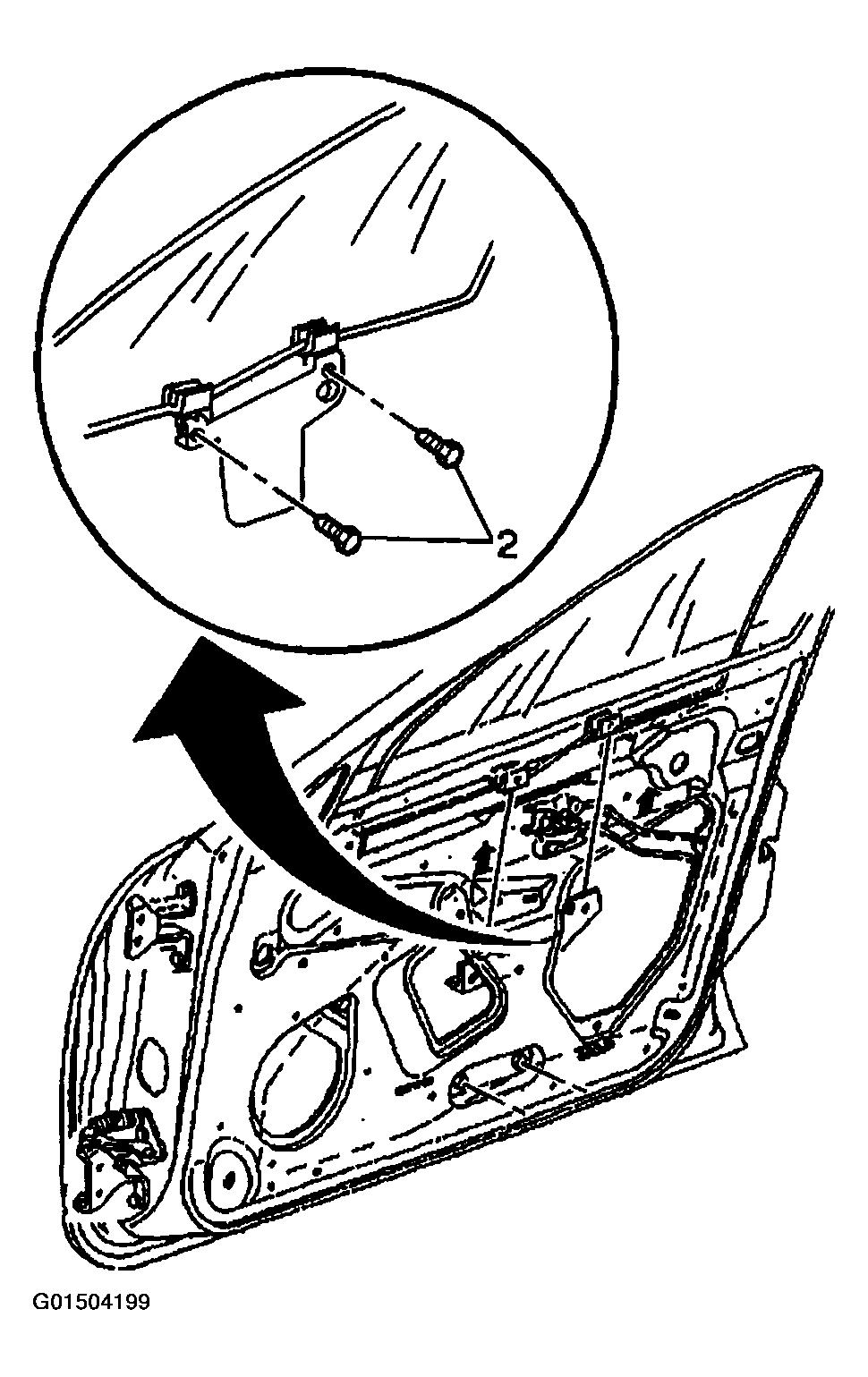

    Fig 1: Removing Bolts From Front Door Window Regulator
    G01504199Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door window from the front door.

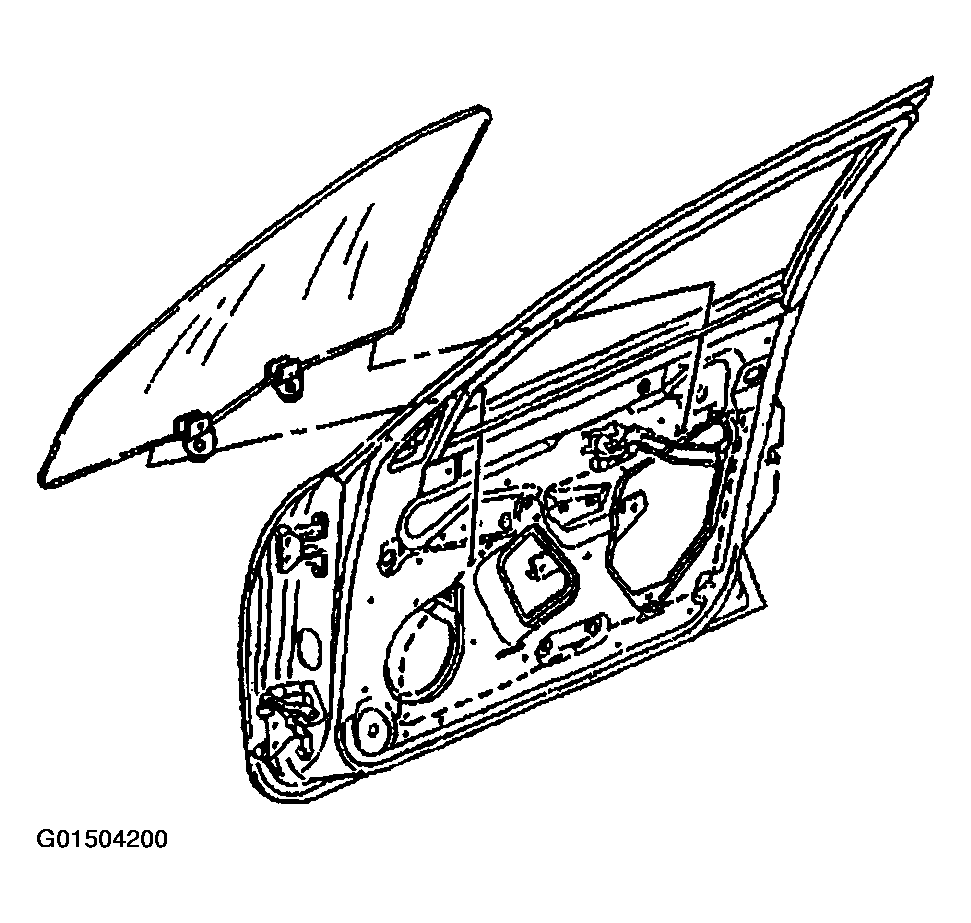

    Fig 2: Removing Front Door Window From Front Door
    G01504200Courtesy of GENERAL MOTORS CORP.
