Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Raise the front door window far enough in order to gain access through the inner door panel to the window to regulator bolts (2).
  4. Remove the bolts from front door window to regulator.
  5. Raise the front door window to the full up position.
  6. Tape the front door window in the full up position.
  7. Disconnect the electrical connector.

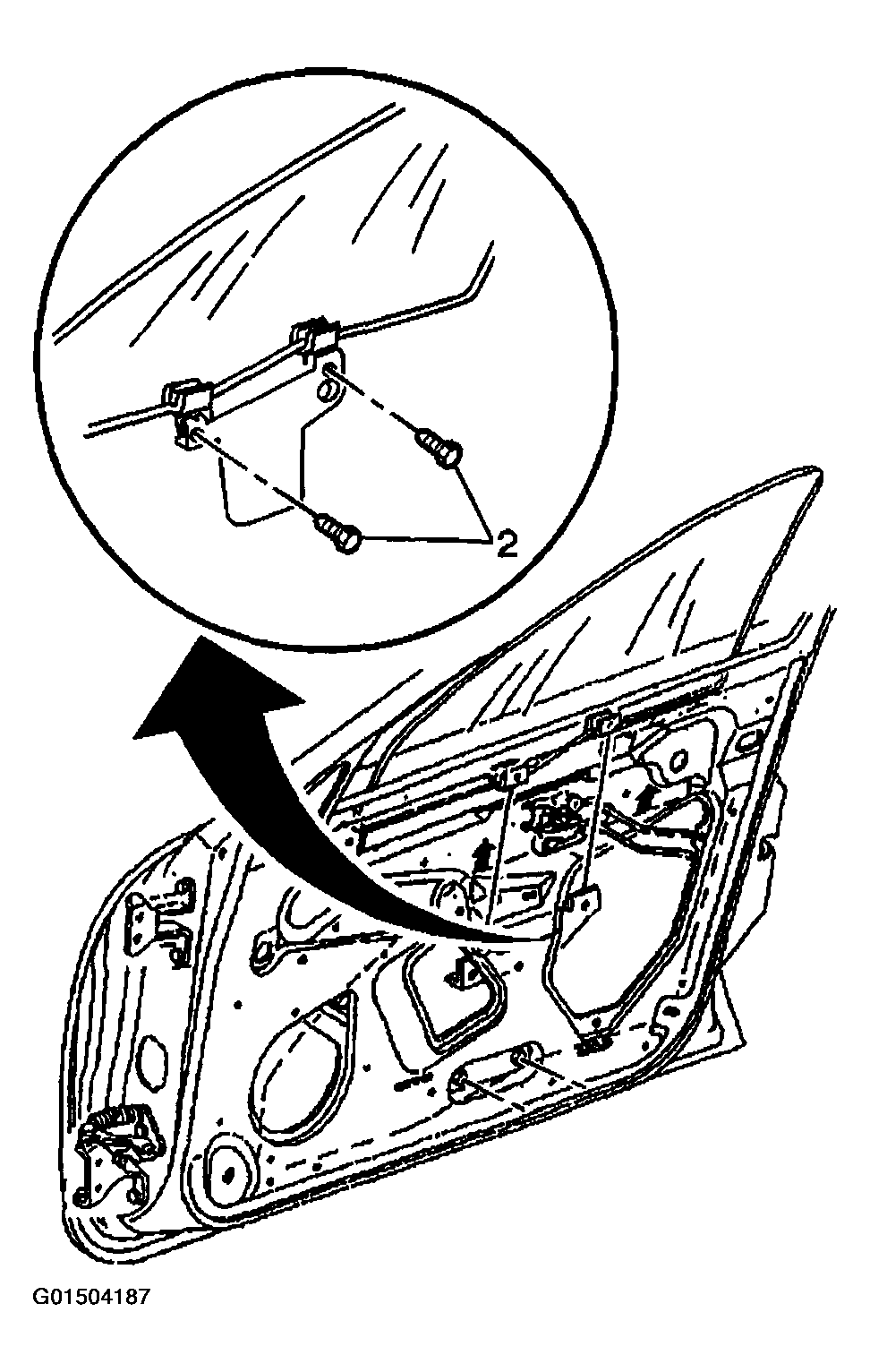

    Fig 1: Removing Front Door Window Regulator
    G01504187Courtesy of GENERAL MOTORS CORP.
  8. Remove the bolts from the front door window regulator and motor.
  9. Remove the front door window regulator from the front door.

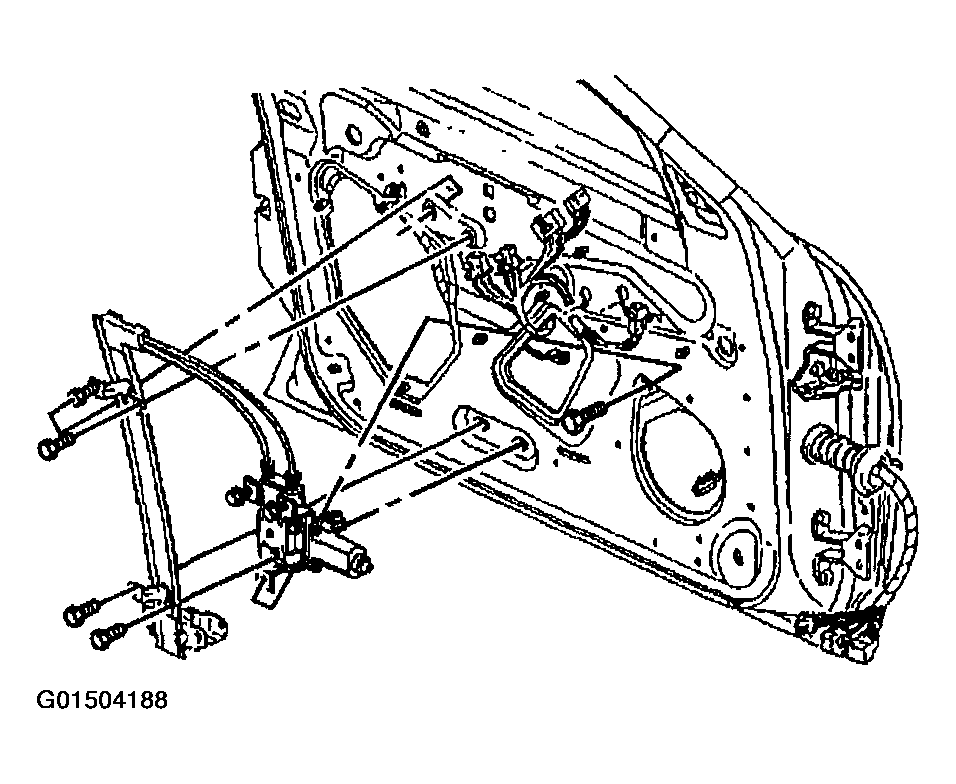

    Fig 2: Removing Front Door Window Regulator From Front Door
    G01504188Courtesy of GENERAL MOTORS CORP.
