Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially remove the upper portion of the rear door frame applique. Refer to DOOR FRAME APPLIQUE REPLACEMENT - REAR  .
  2. Pull down and reposition the rear door window weatherstrip in order to gain access to the screws.
  3. Remove the screws from the window weatherstrip retainer.
  4. Remove the forward screw from the window weatherstrip retainer.
  5. Remove the window weatherstrip retainer from the rear door.

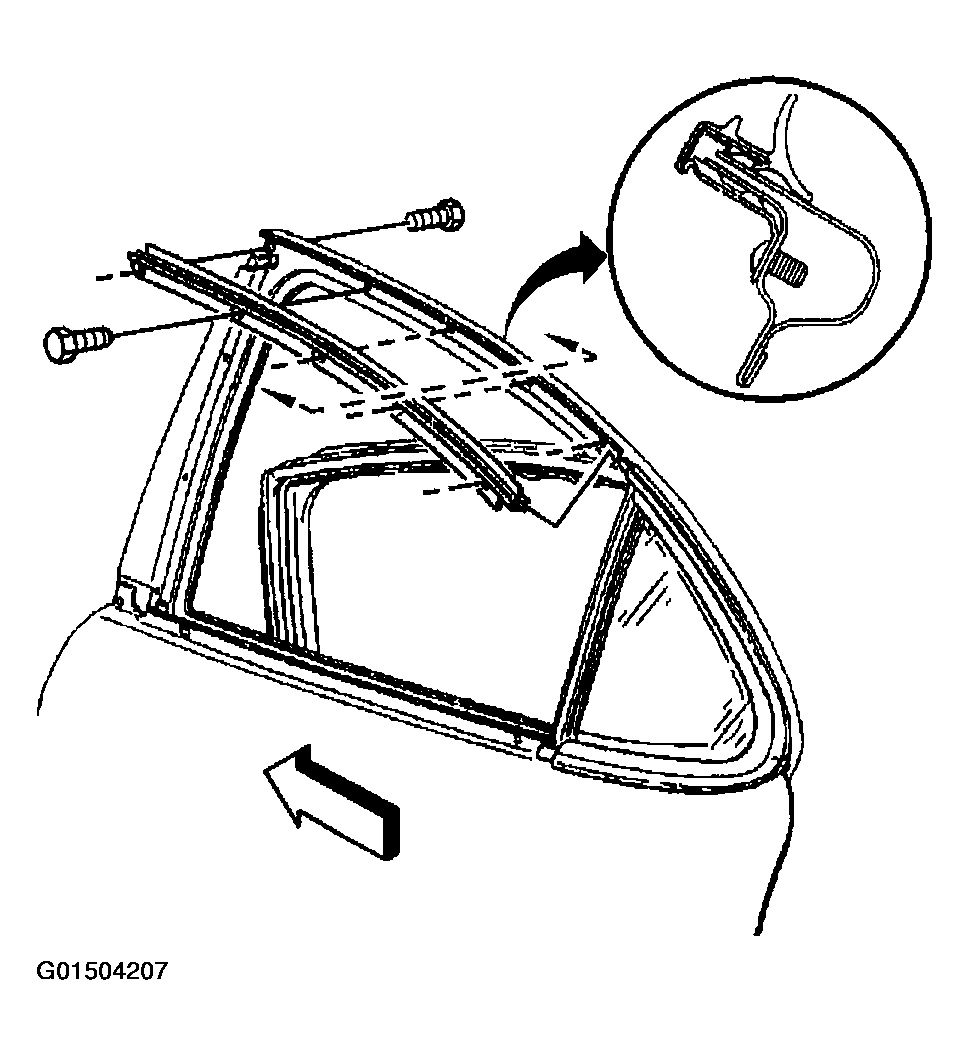

    Fig 1: Removing Rear Door Window Weatherstrip Retainer From Rear Door
    G01504207Courtesy of GENERAL MOTORS CORP.
