Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside mirror. Refer to MIRROR REPLACEMENT - POWER  .
  2. Pull down and reposition the front door window weatherstrip in order to gain access to the screws.
  3. Loosen the front door frame applique screws. Refer to DOOR FRAME APPLIQUE REPLACEMENT - FRONT  .
  4. Remove the screws from the front door window channel retainer.
  5. Remove the front door window channel retainer from the front door.

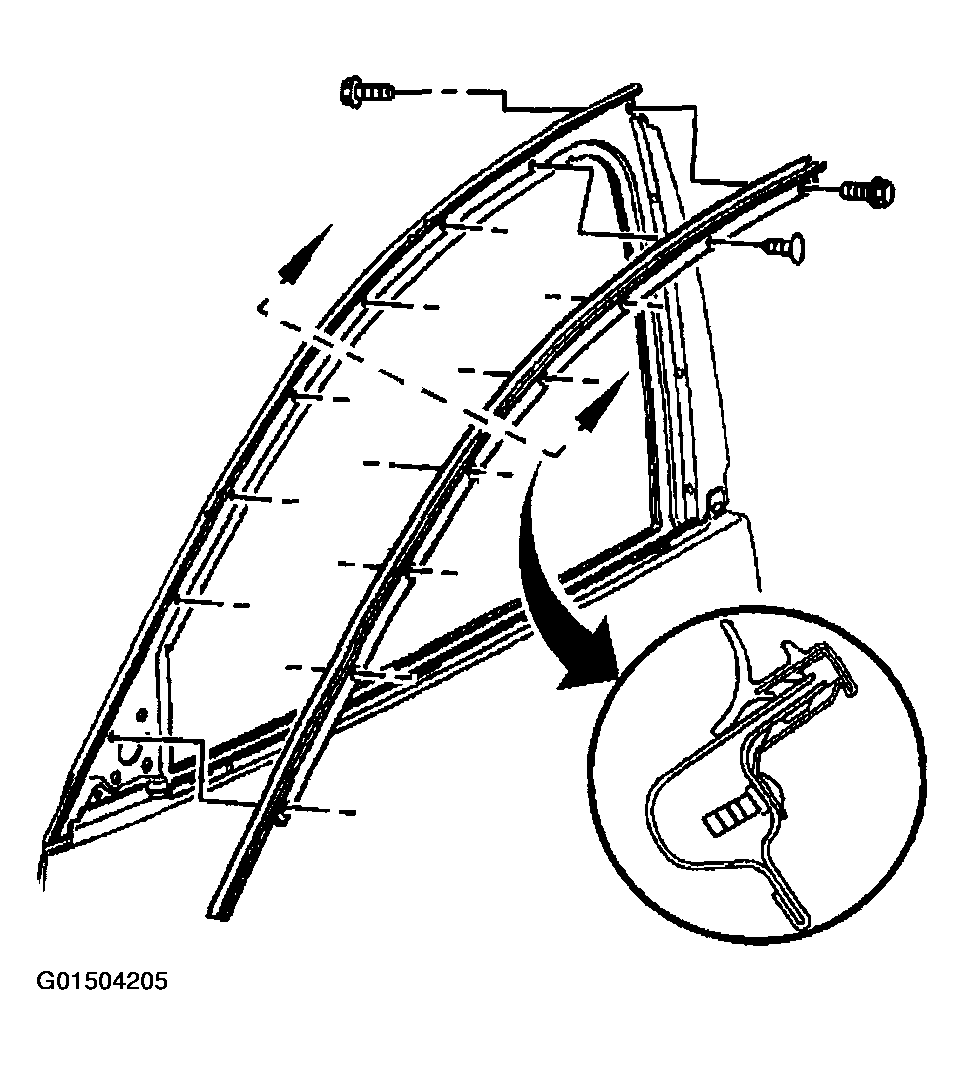

    Fig 1: Removing Front Door Window Channel Retainer From Front Door
    G01504205Courtesy of GENERAL MOTORS CORP.
