Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear carpet retainers. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.
  2. Pull the lower edges of the weatherstrip and retainers away from the door.
  3. Pull the upper edges of the weatherstrip from the door.
  4. Remove the weatherstrip from the door.

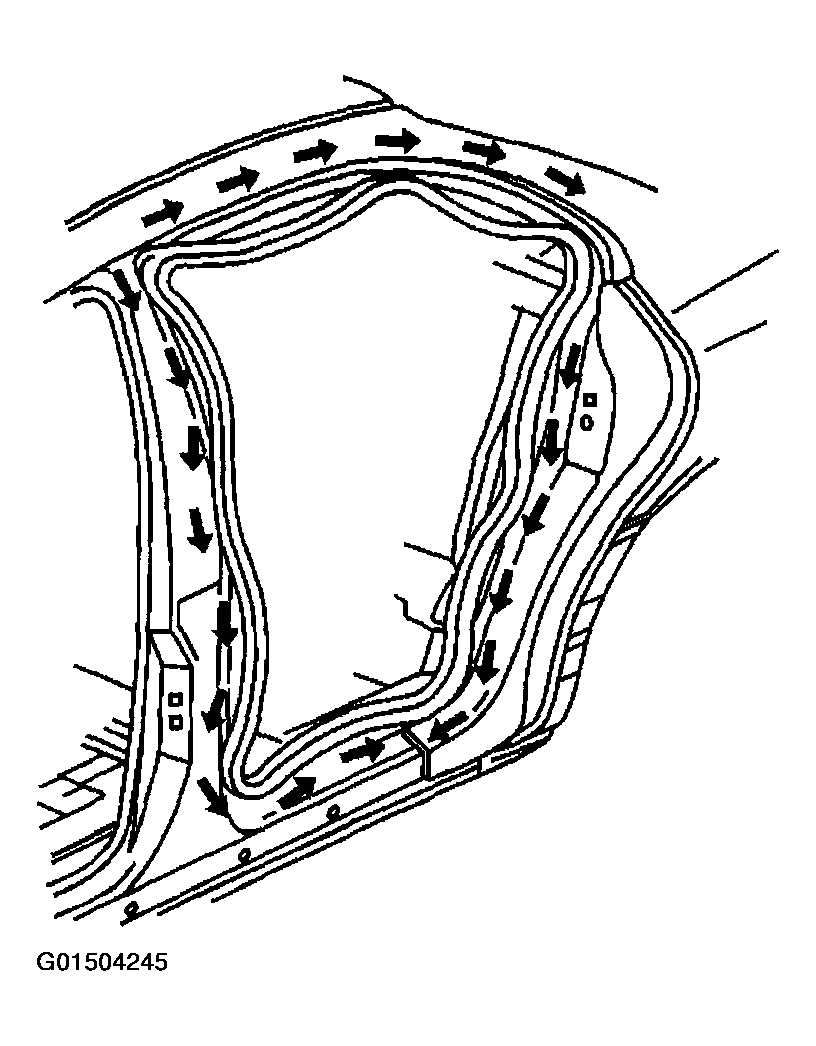

    Fig 1: Removing Rear Door Opening Weatherstrip From Door
    G01504245Courtesy of GENERAL MOTORS CORP.
