Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the carpet retainers. Refer to CARPET RETAINER REPLACEMENT - FRONT .
  3. Only on the sedan, remove the lower center pillar trim panel.
  4. Remove the front door weatherstrip off the pinch-weld flange.

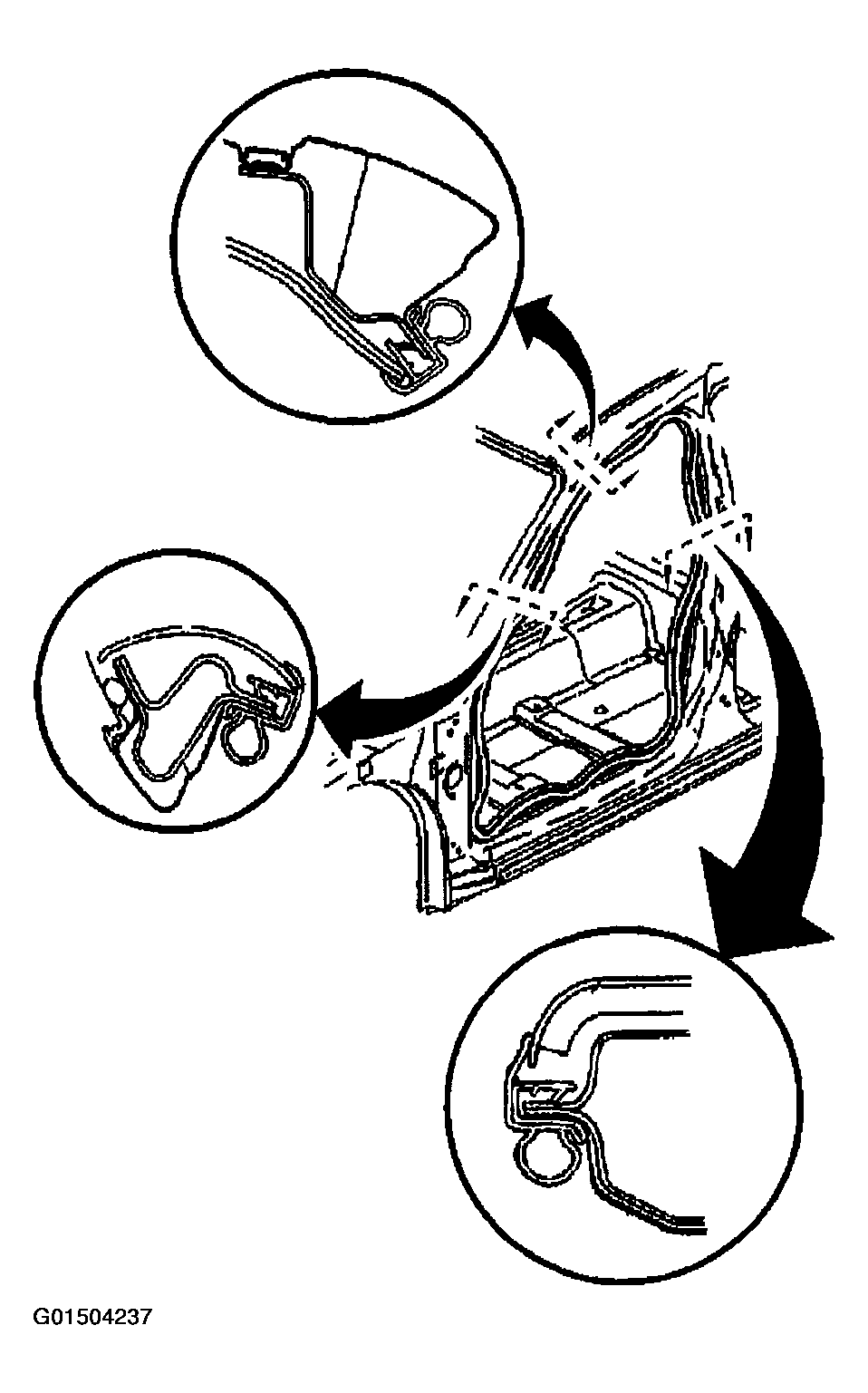

    Fig 1: Removing Front Door Weatherstrip From Pinch-Weld Flange
    G01504237Courtesy of GENERAL MOTORS CORP.
