Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .

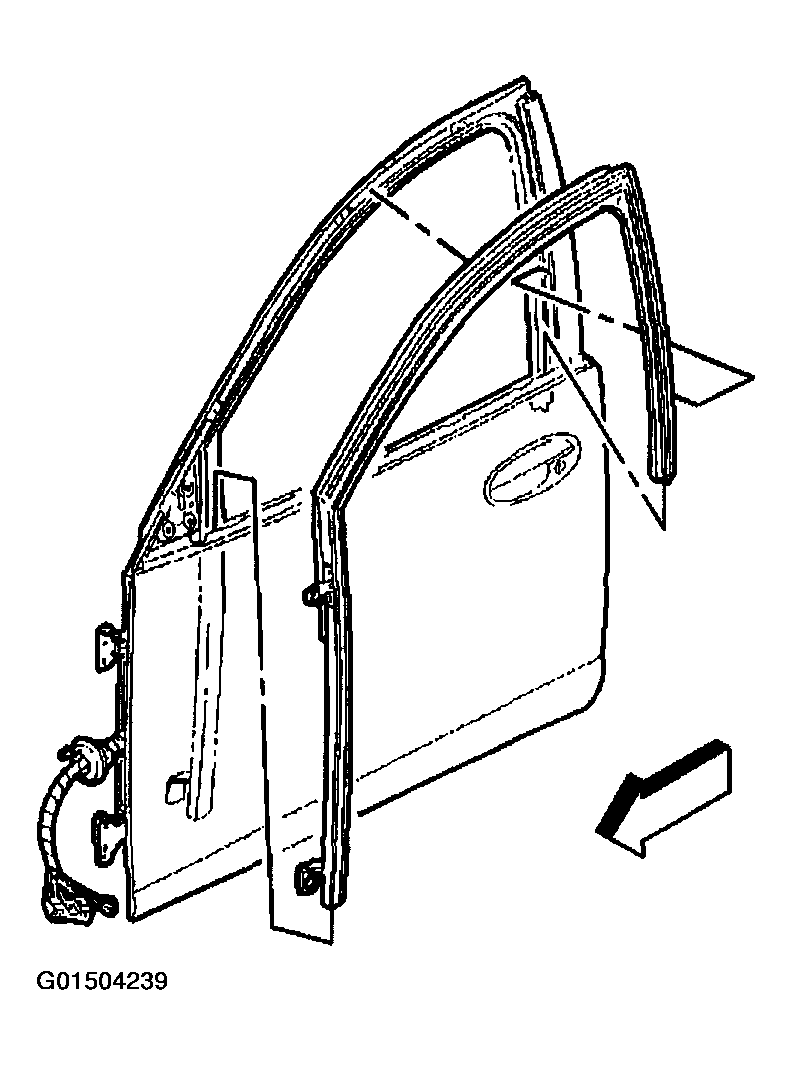

    Fig 1: Removing Bolts From Front Door Window Weatherstrip
    G01504239Courtesy of GENERAL MOTORS CORP.
  3. Remove the outside mirror. Refer to MIRROR REPLACEMENT - POWER  .
  4. Remove the front door window inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  5. Remove the front door window outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  .
  6. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  7. Remove the bolts from the front door window weatherstrip.
  8. Remove the front door window weatherstrip from the front door (3).

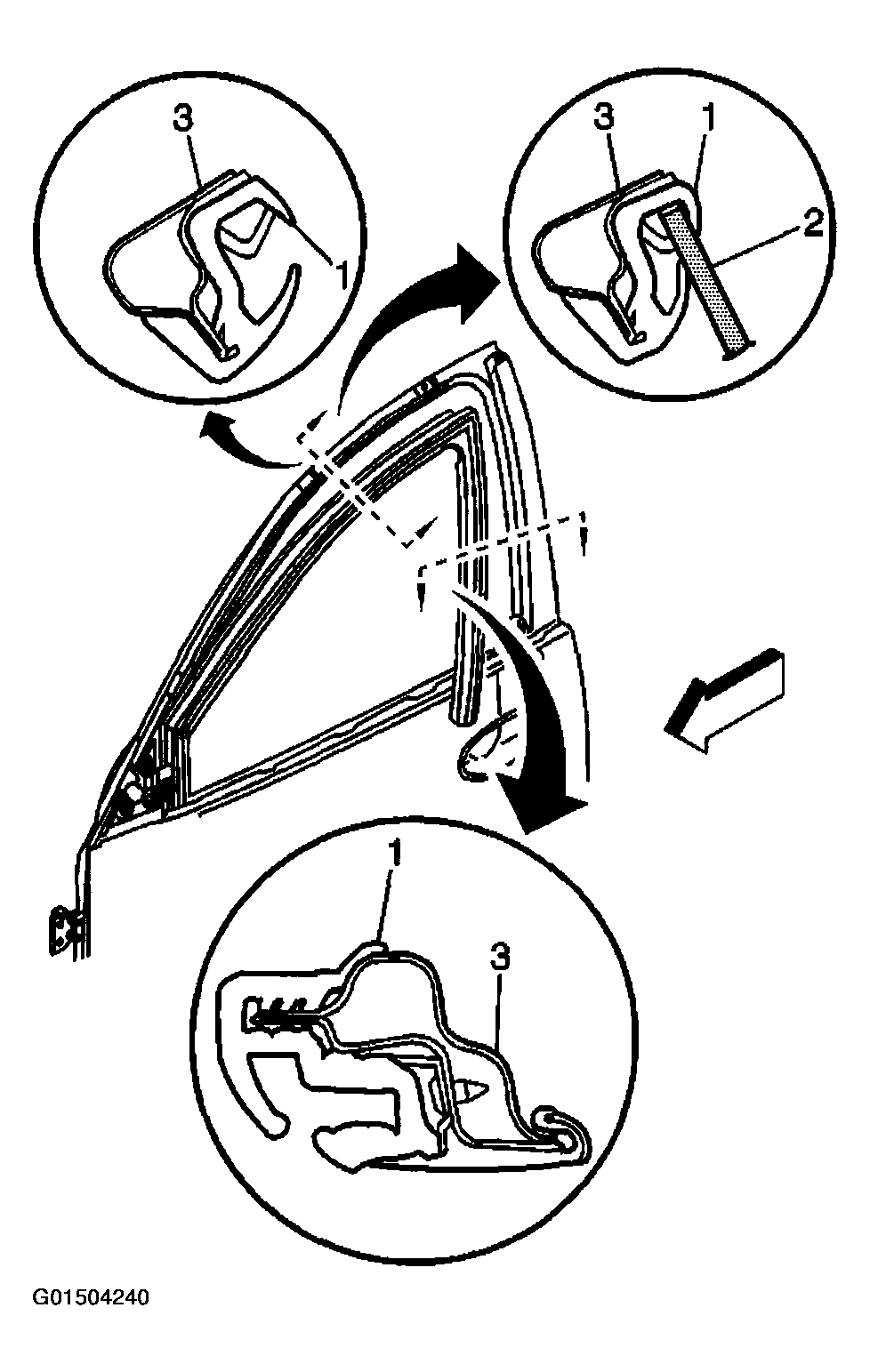

    Fig 2: Removing Front Door Window Weatherstrip From Front Door
    G01504240Courtesy of GENERAL MOTORS CORP.
