Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the door handle water deflector (1).
  3. Carefully peel the rear door water deflector (2) away from the rear door inner panel.

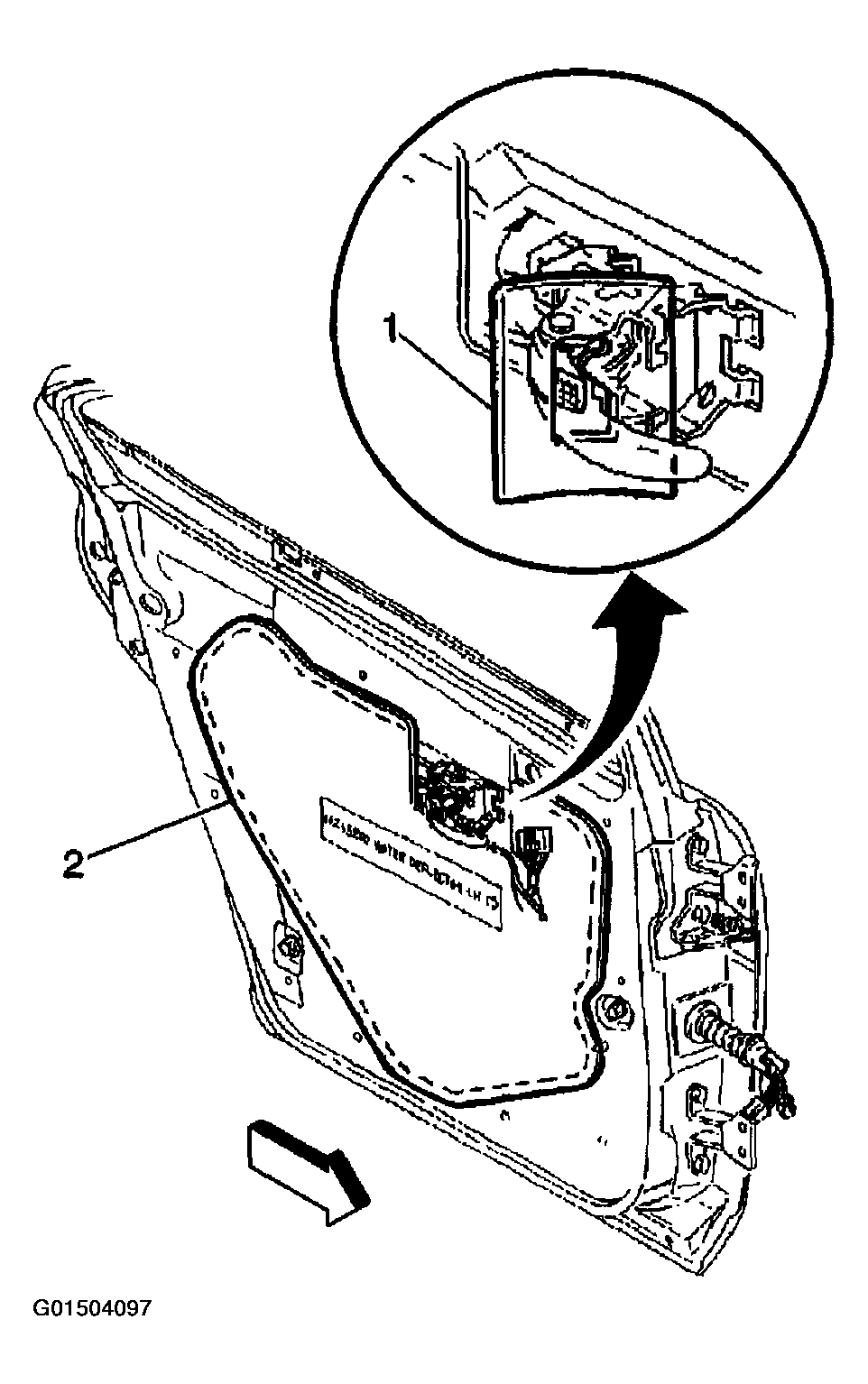

    Fig 1: Removing Door Handle Water Deflector
    G01504097Courtesy of GENERAL MOTORS CORP.
