Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door handle water deflector from the front door handle.
  3. Loosen the front door water deflector by the power mirror.
  4. Disconnect the electric line to the power mirror. Push on the mirror connector to disconnect it from its retainer (it dovetails in).
  5. Remove the water deflector.

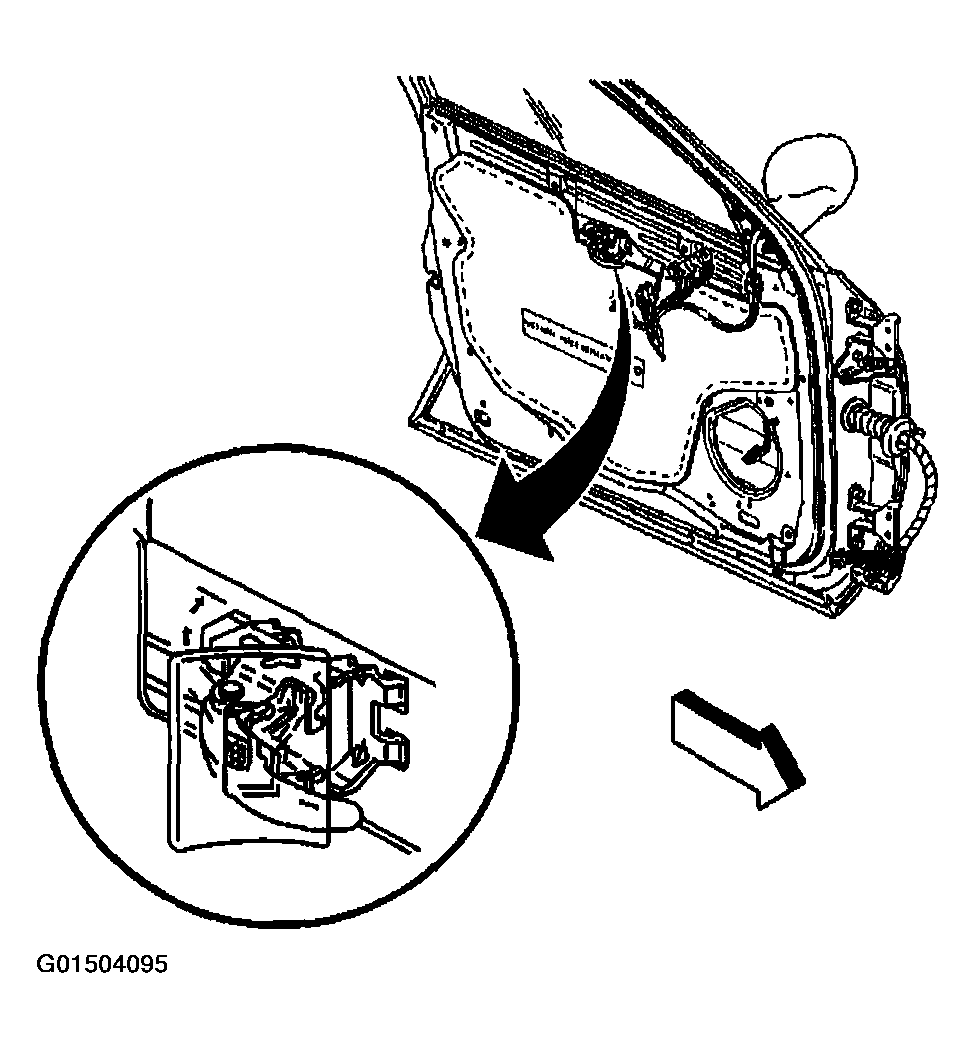

    Fig 1: Removing Front Door Handle Water Deflector From Front Door Handle
    G01504095Courtesy of GENERAL MOTORS CORP.
