Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door power window switch. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
  2. Remove the rear door trim panel plugs from under the pull handle.
  3. Remove the screws from behind the trim plugs.
  4. Beginning at the lower rear of the door, use J 38778  to remove the rear door trim panel from the rear door inner panel.
  5. Remove the rear door trim panel from the vehicle.

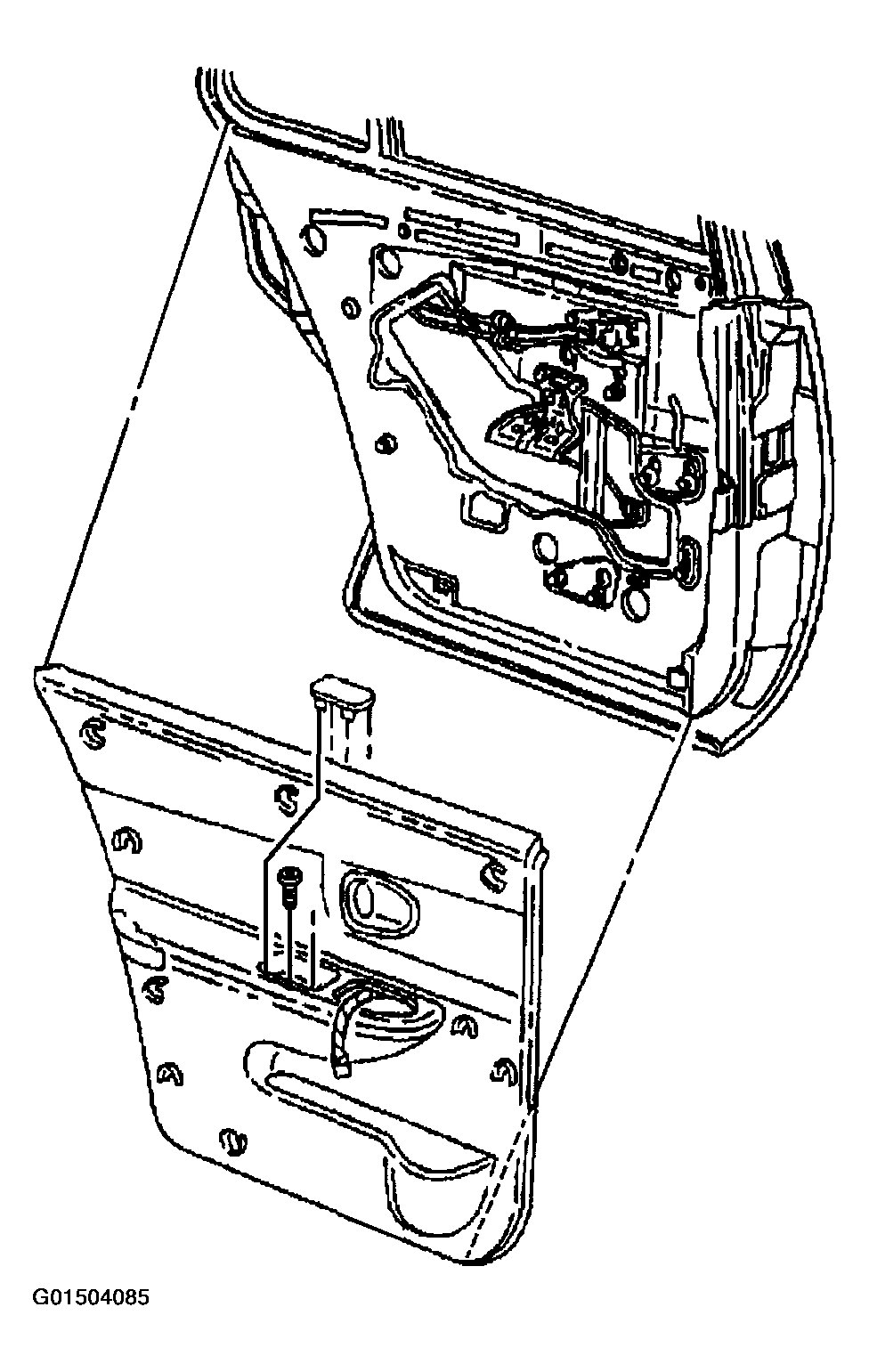

    Fig 1: Removing Rear Door Trim Panel From Vehicle
    G01504085Courtesy of GENERAL MOTORS CORP.
