Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the rear door bottom sealing strip (2) from the door by pull the tabs from the holes in the door (1).

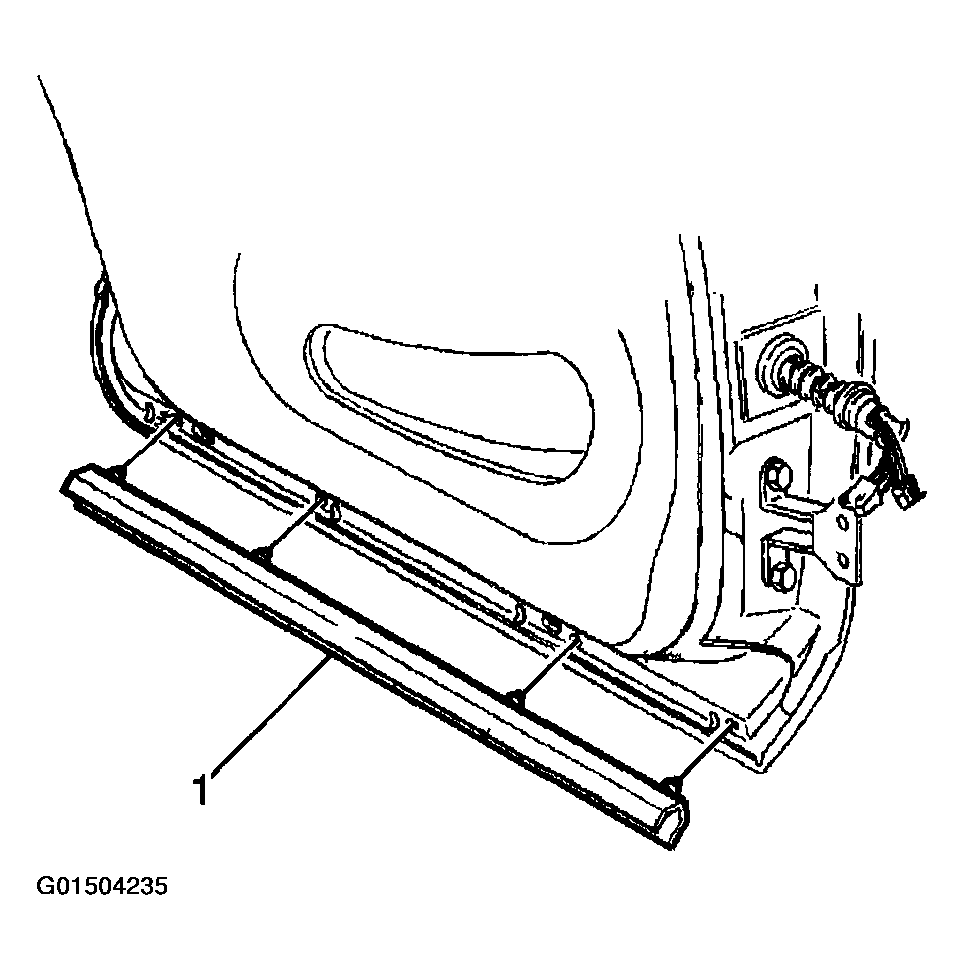

    Fig 1: Removing Rear Door Bottom Auxiliary Sealing Strip From Door
    G01504235Courtesy of GENERAL MOTORS CORP.
