Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rearview mirror. Refer to MIRROR REPLACEMENT - POWER  .
  2. Remove the front door outer belt sealing strip machine screw (1) in the rear position.
  3. Remove the front door outer belt sealing strip self-tapping screw (3) in the front position.
  4. Remove the front door outer belt sealing strip (2).

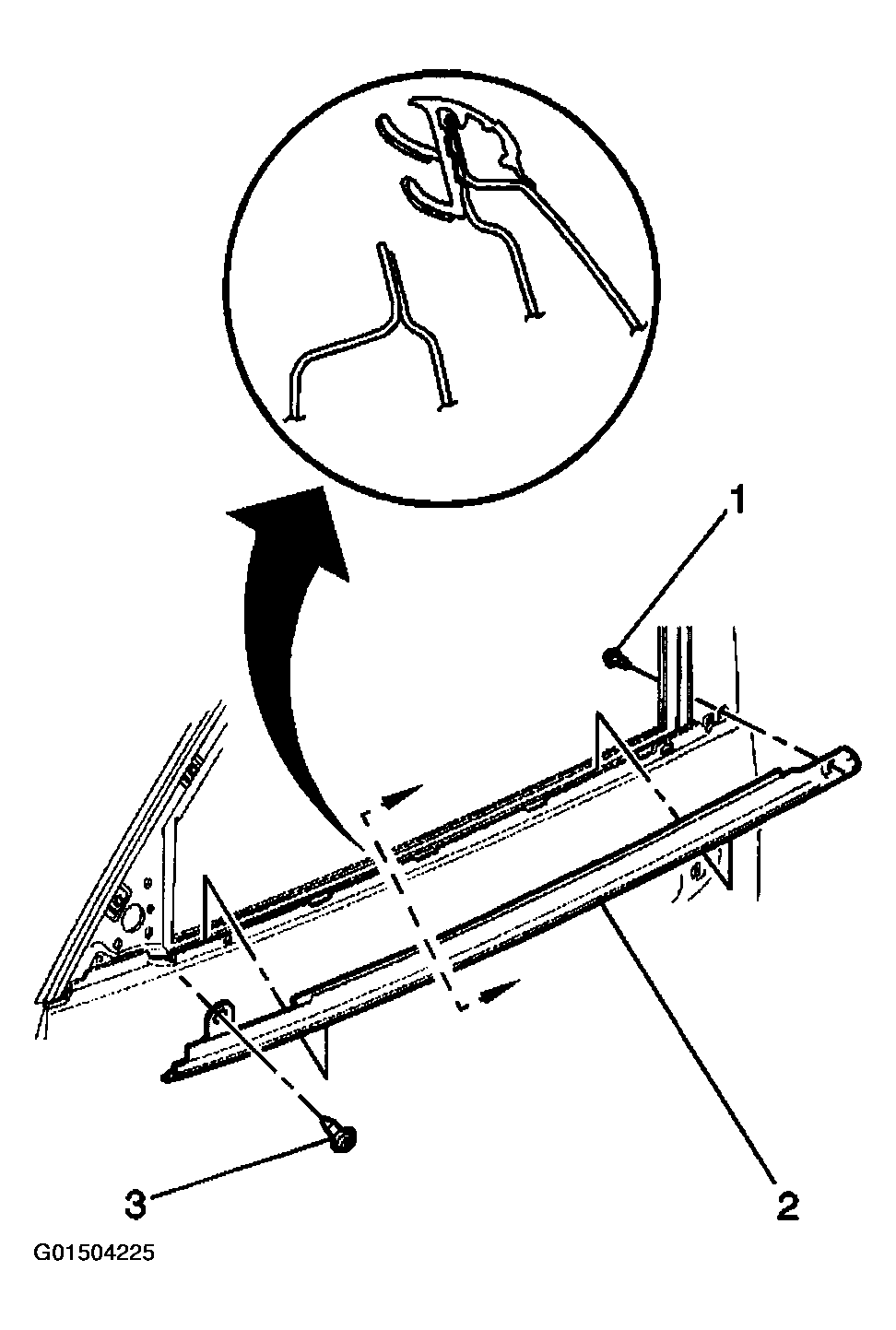

    Fig 1: Removing Front Door Outer Belt Sealing Strip
    G01504225Courtesy of GENERAL MOTORS CORP.
