Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door rubber conduit (1) from the center pillar.
  2. Disconnect the rear door wiring harness electrical connector.
  3. Remove the rear door rubber conduit (1) from the rear door.

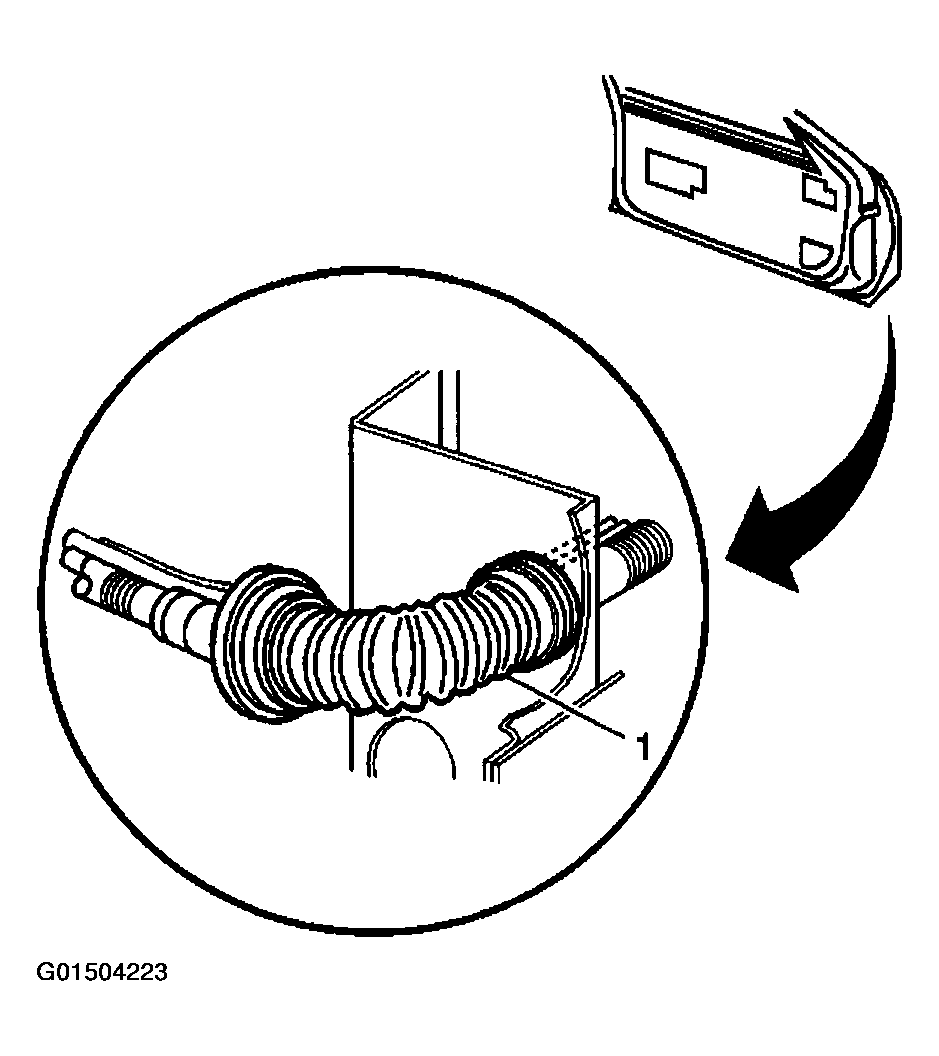

    Fig 1: Removing Rear Door Rubber Conduit From Rear Door
    G01504223Courtesy of GENERAL MOTORS CORP.
