Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door rubber conduit (1) from where it attaches at the front pillar.
  2. Carefully pull the wire harness out from the front pillar to expose the harness connector.
  3. Disconnect the front door wiring harness electrical connector.
  4. Remove the front door rubber conduit from the front door and remove it from the electrical harness.

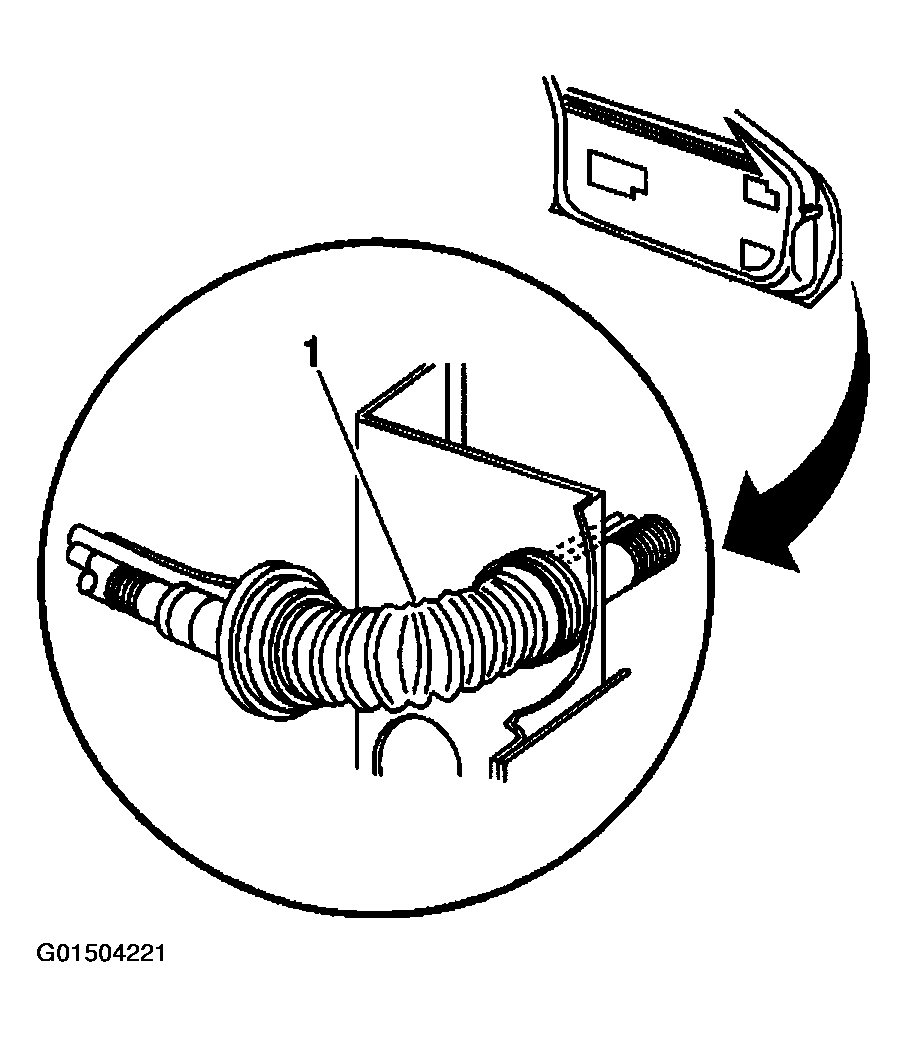

    Fig 1: Removing Front Door Rubber Conduit From Front Door
    G01504221Courtesy of GENERAL MOTORS CORP.
