Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. If equipped, disconnect the electrical connector (1) to the warning reflector light.
  4. Remove the warning reflector (3) from the front door trim panel using a small, flat-bladed tool, pressing on the tabs on the ends of the warning reflector.

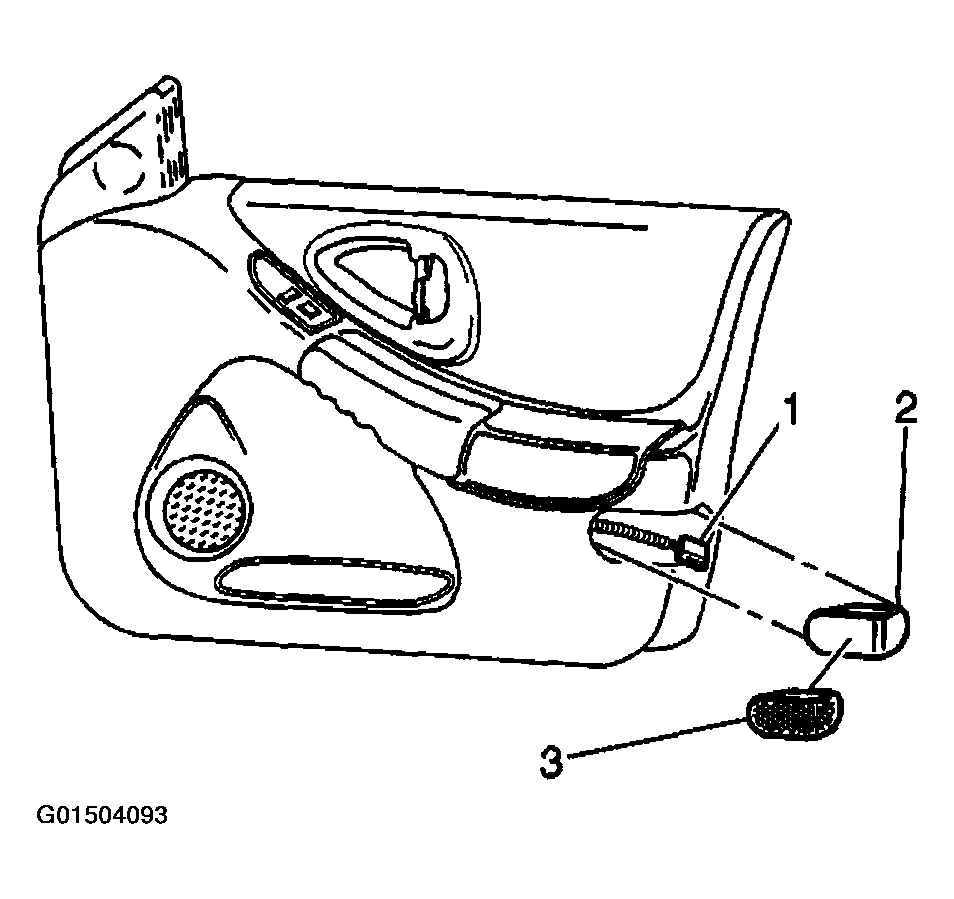

    Fig 1: Removing Front Door Warning Reflector From Front Door Trim Panel
    G01504093Courtesy of GENERAL MOTORS CORP.
