Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the electrical connector to the mirror wire harness.
    CAUTION: Refer to EYE PROTECTION CAUTION in Cautions and Notices.
  3. Remove the mirror face. Refer to MIRROR FACE REPLACEMENT  .

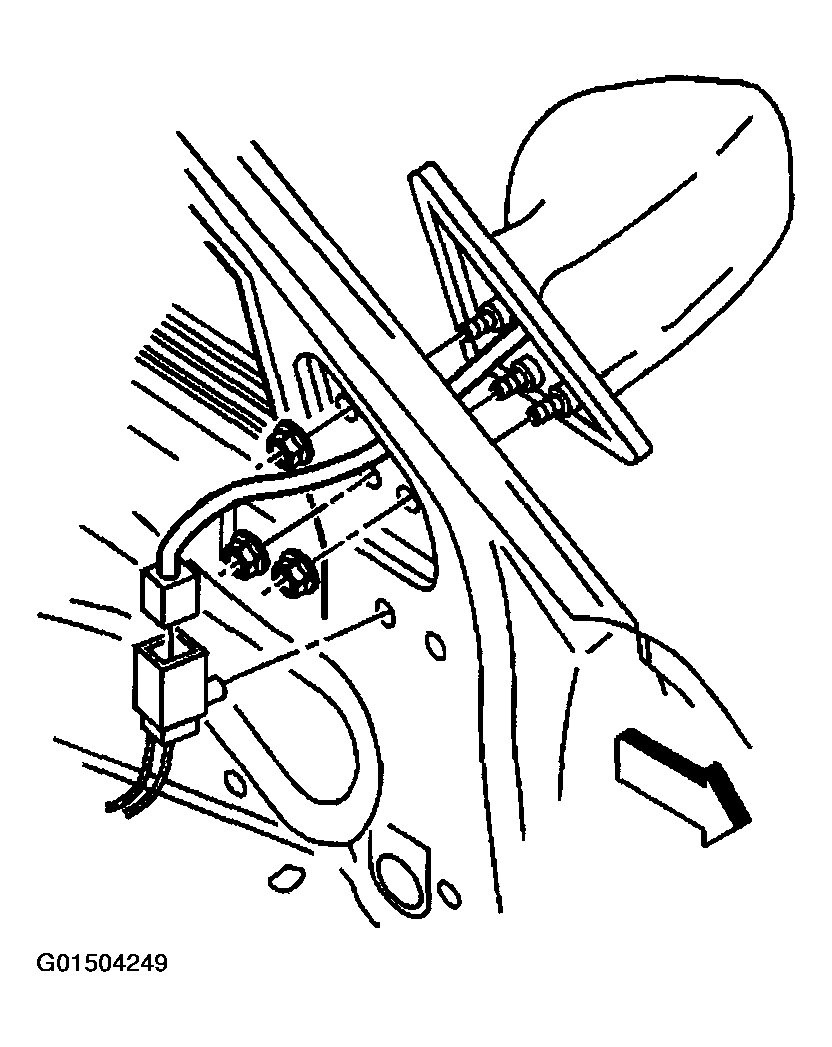

    Fig 1: Disconnecting Electrical Connector From Mirror Wire Harness
    G01504249Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws from the mirror motor.
  5. Pull the motor electrical harness through the mirror housing.
  6. Remove the motor from the mirror housing.

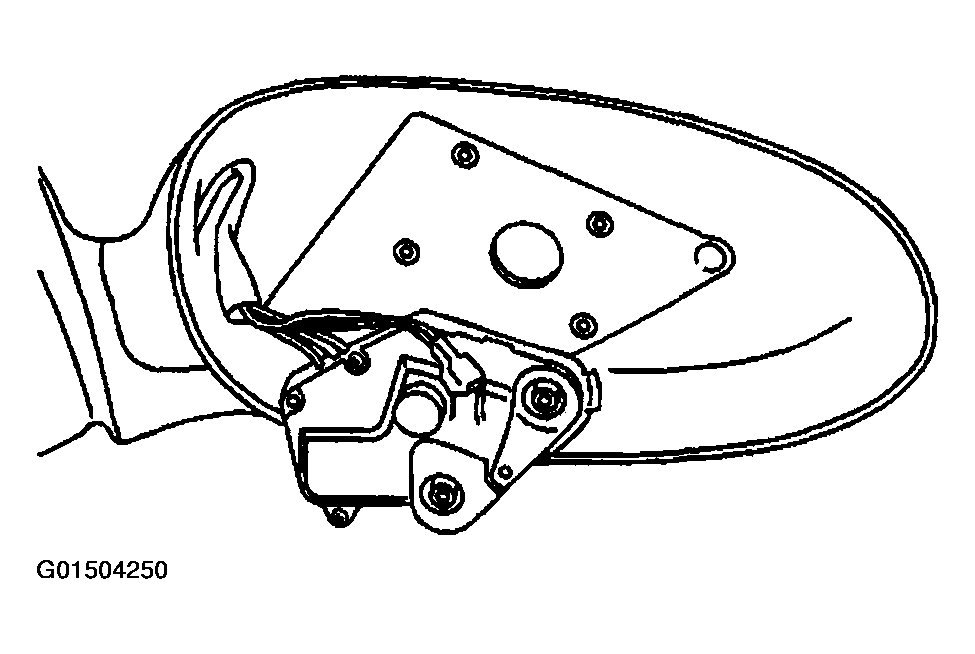

    Fig 2: Removing Motor From Mirror Housing
    G01504250Courtesy of GENERAL MOTORS CORP.
