Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not attempt repairs in order to correct lock cylinder discrepancies. Replace the lock cylinder.

Remove the front door outside door handle. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE .
Remove the lock cylinder retainer clip (2).
Remove the lock cylinder from the outside door handle.

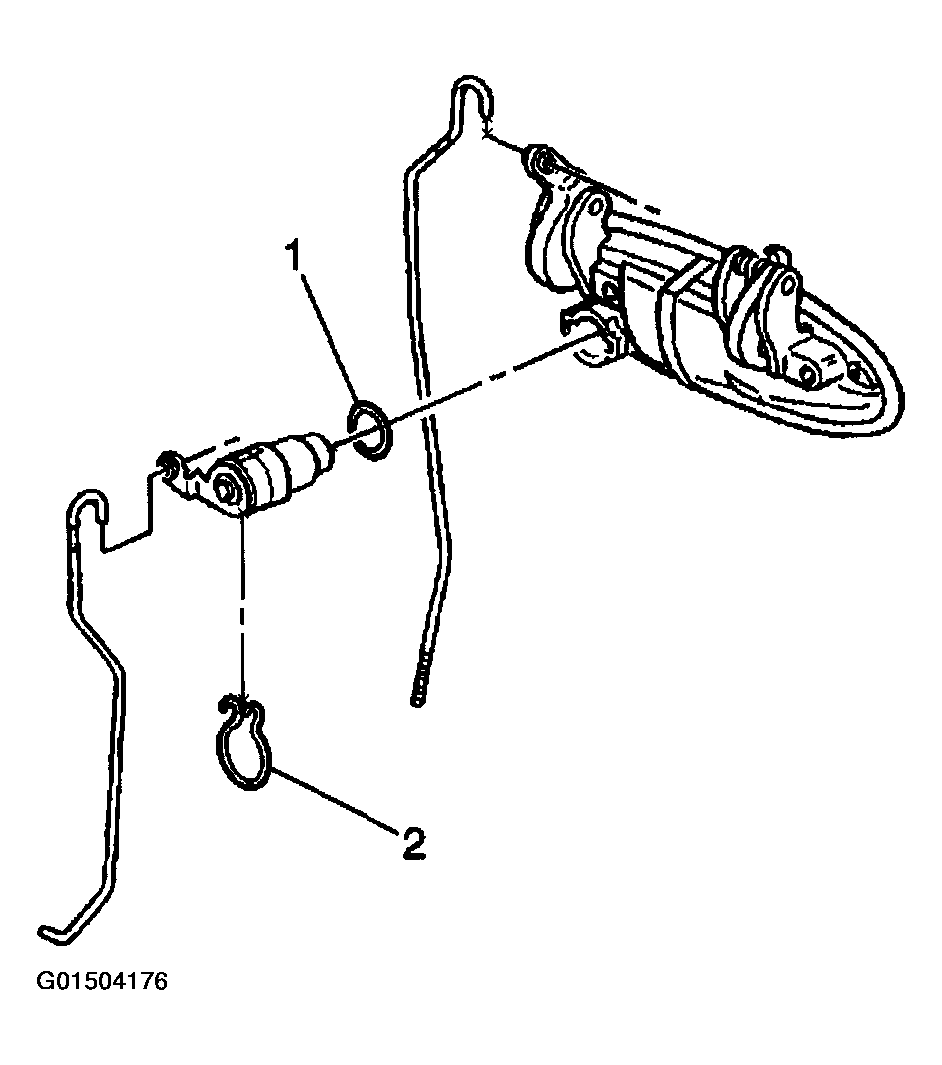

Fig 1: Removing Lock Cylinder From Outside Door Handle
Courtesy of GENERAL MOTORS CORP.
