Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door lock. Refer to LOCK REPLACEMENT - FRONT DOOR  .
  2. Remove the inside handle rod from the lock.

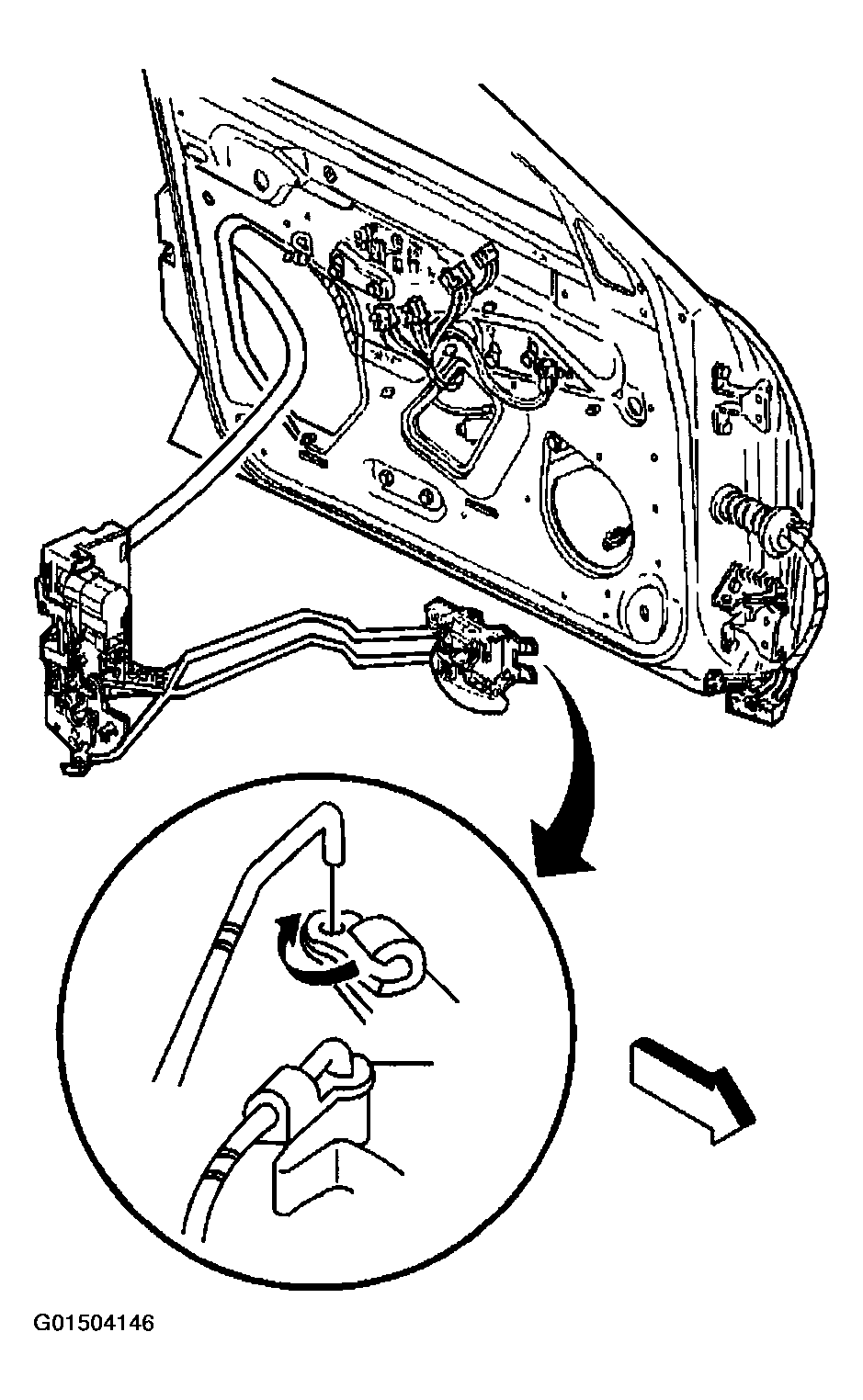

    Fig 1: Removing Front Door Inside Handle Rod From Lock
    G01504146Courtesy of GENERAL MOTORS CORP.
