Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Disconnect the retainer clips from the front door inner energy absorber pad to the front door.
  5. Remove the front door inner energy absorber pad from the front door.

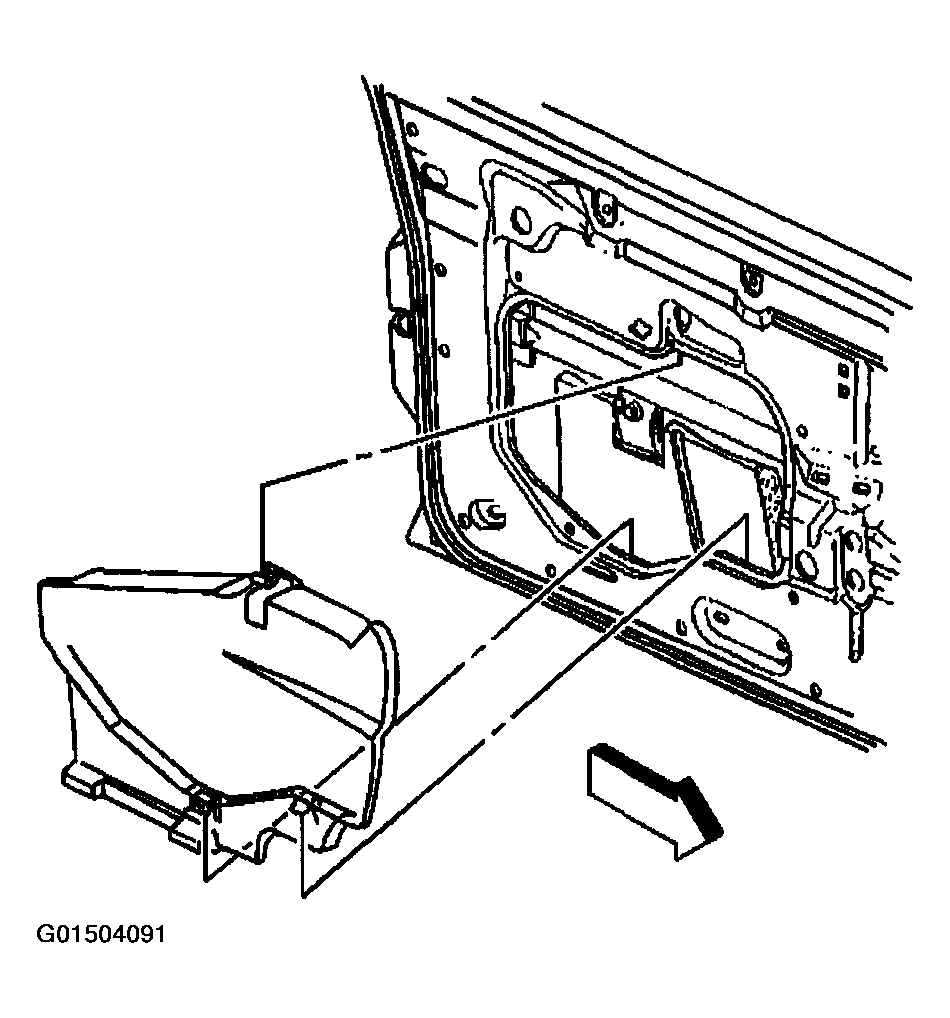

    Fig 1: Removing Front Door (Coupe) Inner Energy Absorber Pad From Front Door
    G01504091Courtesy of GENERAL MOTORS CORP.
