Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel.
  2. Remove the rear door inner energy absorber pad. Refer to ENERGY ABSORBER PAD REPLACEMENT - INNER REAR  .
  3. Remove the rear door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  4. Remove the rear door outer energy absorber pad. Refer to ENERGY ABSORBER PAD REPLACEMENT - OUTER REAR  .
  5. Remove the rear door inner window sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT INNER  .

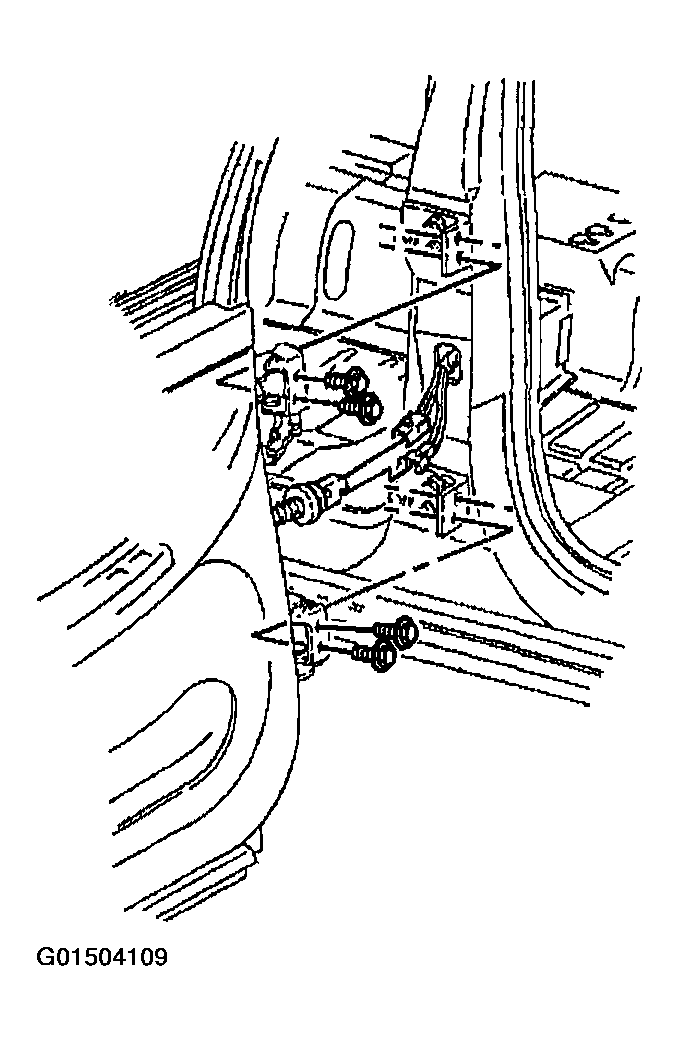

    Fig 1: Removing Rear Door
    G01504109Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear door stationary window molding. Refer to WINDOW MOLDING REPLACEMENT - REAR DOOR STATIONARY  .
  7. Remove the rear door frame applique. Refer to DOOR FRAME APPLIQUE REPLACEMENT - REAR  .
  8. Remove the rear door window. Refer to WINDOW REPLACEMENT - REAR DOOR  .
  9. Remove the rear door outside door handle. Refer to DOOR HANDLE REPLACEMENT - REAR OUTSIDE  .
  10. Remove the rear door inside door handle. Refer to DOOR HANDLE REPLACEMENT - REAR INSIDE  .
  11. Remove the rear door lock. Refer to LOCK REPLACEMENT - REAR DOOR  .
  12. Remove the rear door window weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW
  13. Remove the rear door window regulator. Refer to WINDOW REGULATOR REPLACEMENT - REAR DOOR  .
  14. Disconnect the wiring harness.
  15. Remove the rear door bottom auxiliary sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR BOTTOM AUXILIARY  .
  16. Remove the rear door rubber conduit. Refer to RUBBER CONDUIT REPLACEMENT - REAR DOOR  .
  17. Remove the rear door side molding. Refer to MOLDING REPLACEMENT - BODY SIDE in Exterior Trim.
  18. Remove the rear door lower finish panel. Refer to FINISH PANEL REPLACEMENT - DOOR LOWER in Exterior Trim.
  19. Support the rear door.
  20. Remove the intermediate rear door hinge bolts.
  21. Remove the rear door, with an assistant.
