Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the front door speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR .
  4. Disconnect the electrical connectors.
  5. Remove the front door window belt inner sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  6. Remove the front door outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  .
  7. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  8. Remove the front door window weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FRONT DOOR WINDOW  .
  9. Remove the front door window regulator. Refer to WINDOW REGULATOR REPLACEMENT - FRONT DOOR  .
  10. Remove the front door outside door handle. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE  .
  11. Remove the front door inside handle. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE  .
  12. Remove the front door lock. Refer to LOCK REPLACEMENT - FRONT DOOR  .

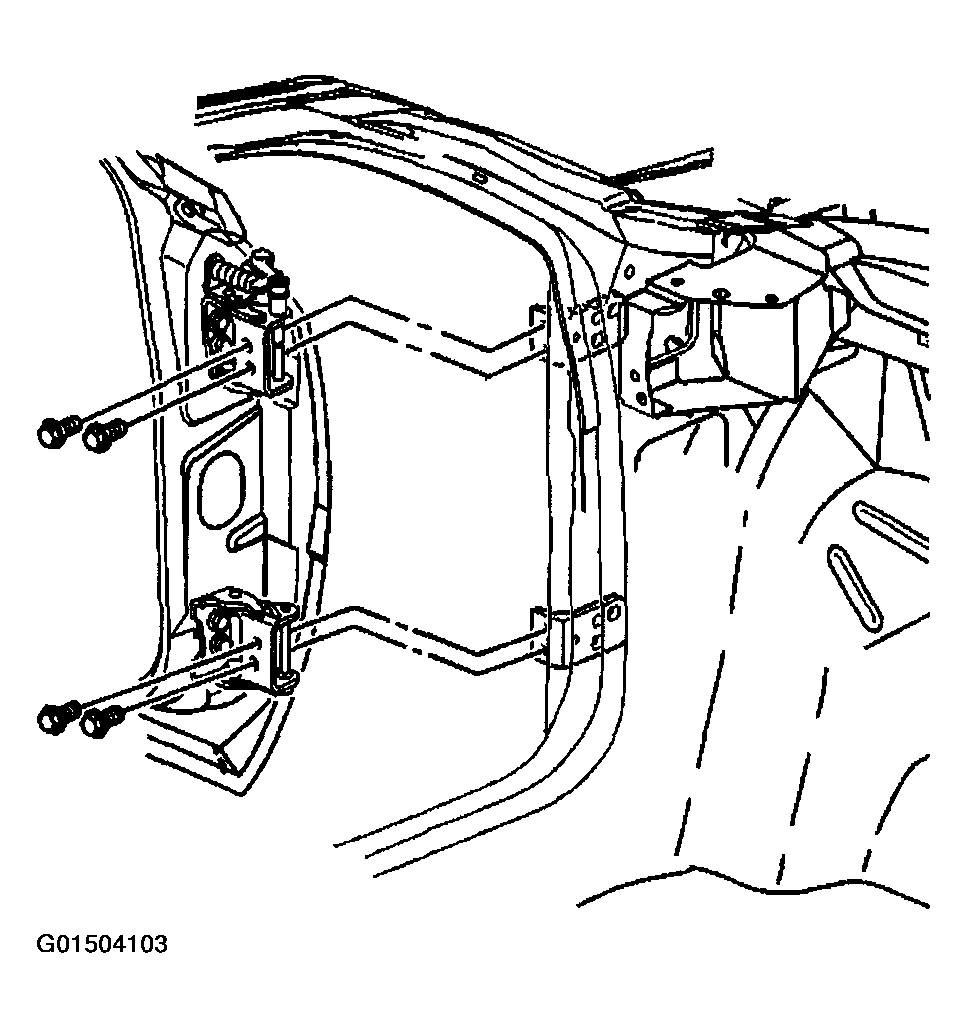

    Fig 1: Removing Front Door
    G01504103Courtesy of GENERAL MOTORS CORP.
  13. Remove the front door bottom auxiliary sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR BOTTOM AUXILIARY  .
  14. Remove the front door side molding. Refer to MOLDING REPLACEMENT - BODY SIDE in Exterior Trim.
  15. Remove the front door lower finish panel. Refer to FINISH PANEL REPLACEMENT - DOOR LOWER in Exterior Trim.
  16. Remove the front door rubber conduit. Refer to RUBBER CONDUIT REPLACEMENT - FRONT DOOR  .
  17. Support the front door.
  18. Remove the intermediate front door hinge bolts.
  19. Remove the front door, with an assistant.
