Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the water deflector as needed. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Use side cutters in order to cut the clip that connects the outside handle rod from the lock.
  4. Unscrew the remainder of the clip from the outside handle rod.
  5. Discard the clip.

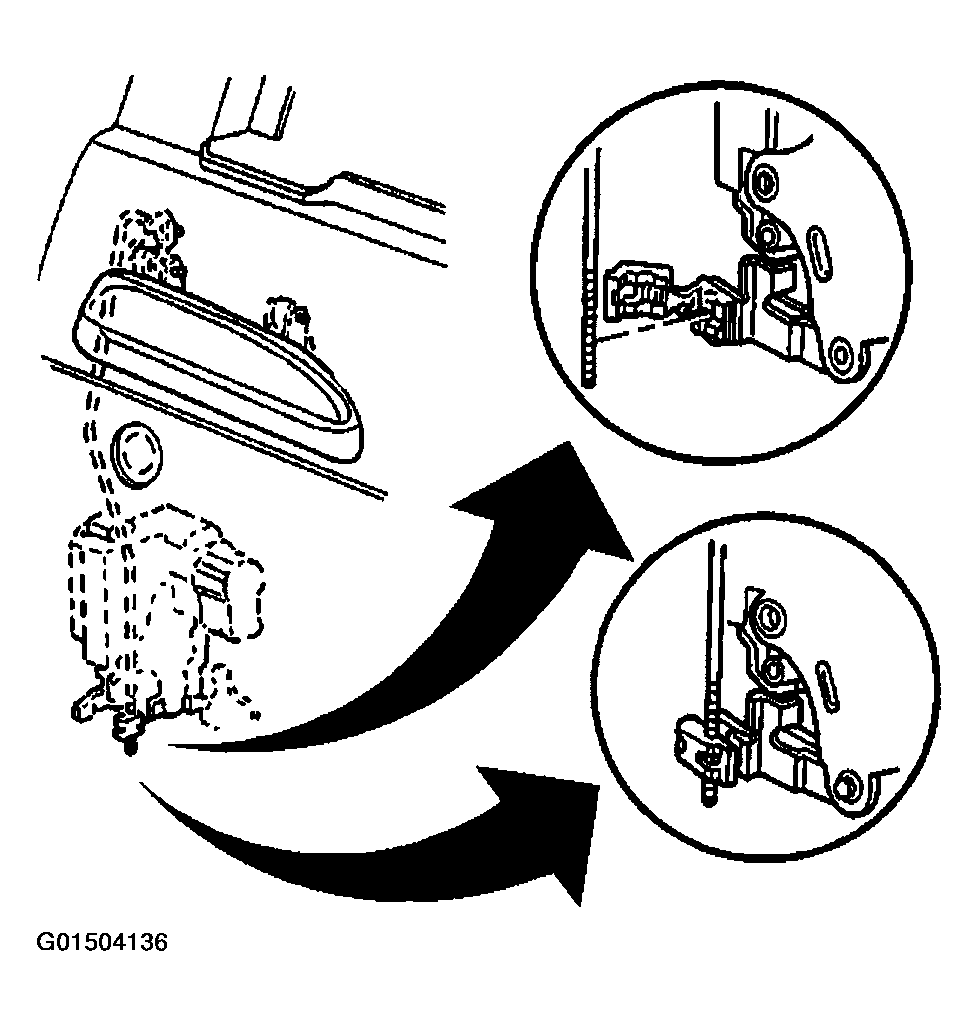

    Fig 1: Removing clip that connects outside handle rod to lock
    G01504136Courtesy of GENERAL MOTORS CORP.
