Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear door window to the down position.
  2. Pull the rear door window weatherstrip away from the applique.
  3. Loosen the rear door window channel retainer. Refer to WINDOW CHANNEL RETAINER REPLACEMENT - REAR DOOR  .
  4. Remove the screws from the rear door frame applique.
  5. Pull the applique away from the channel retainer, slide the applique up to remove it from the door.

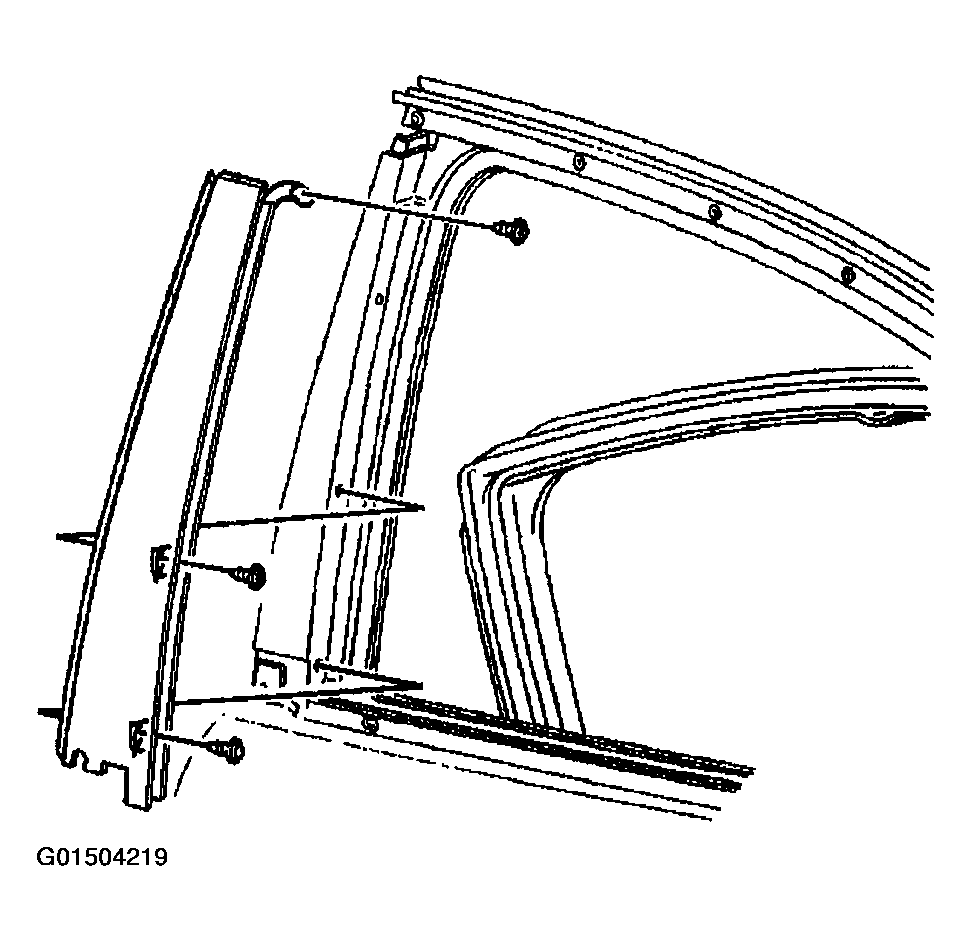

    Fig 1: Removing Rear Door Frame Applique From Rear Door
    G01504219Courtesy of GENERAL MOTORS CORP.
