Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down and reposition the front door weatherstrip in order to gain access to the applique screws.
  2. Remove the screws from the front door frame applique.
  3. Remove the front door frame applique from the front door.

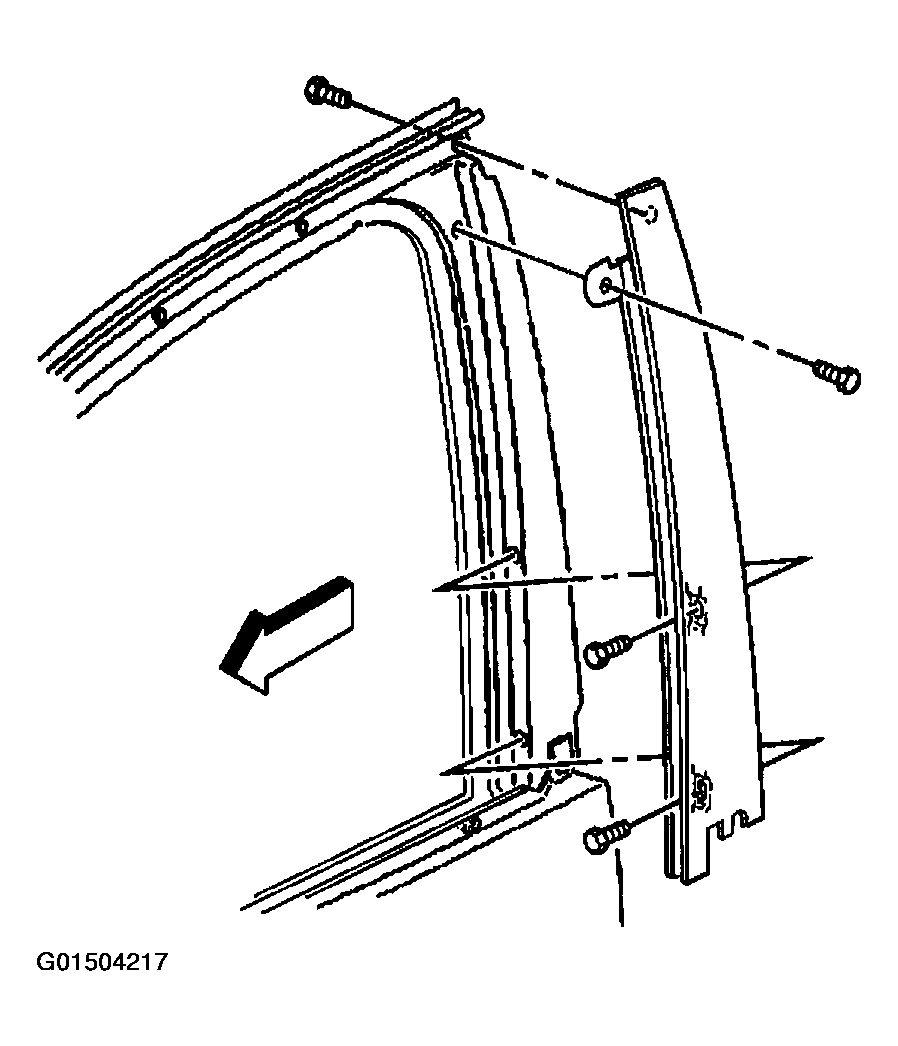

    Fig 1: Removing Front Door Frame Applique From Front Door
    G01504217Courtesy of GENERAL MOTORS CORP.
