Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood insulator push-in retainers.
  3. Remove the hood insulator from the hood.

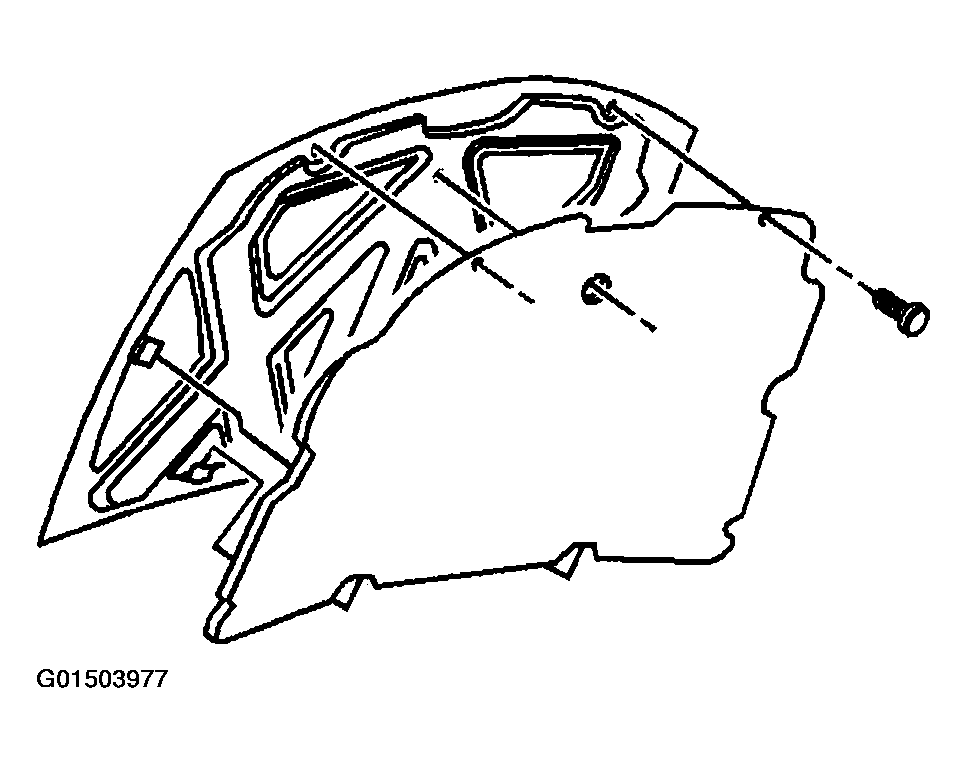

    Fig 1: Removing Hood Insulator From Hood
    G01503977Courtesy of GENERAL MOTORS CORP.
