Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the adjustable front hood bumper (1) to the radiator support by rotating clockwise.
    Fig 1: Installing Adjustable Front Hood Bumper To Radiator Support
    G01503947Courtesy of GENERAL MOTORS CORP.
  2. Install the hood side bumper (1) to the fender.
  3. Adjust the hood height by rotating the front hood bumpers clockwise/counterclockwise until the hood is flush with the front fender.

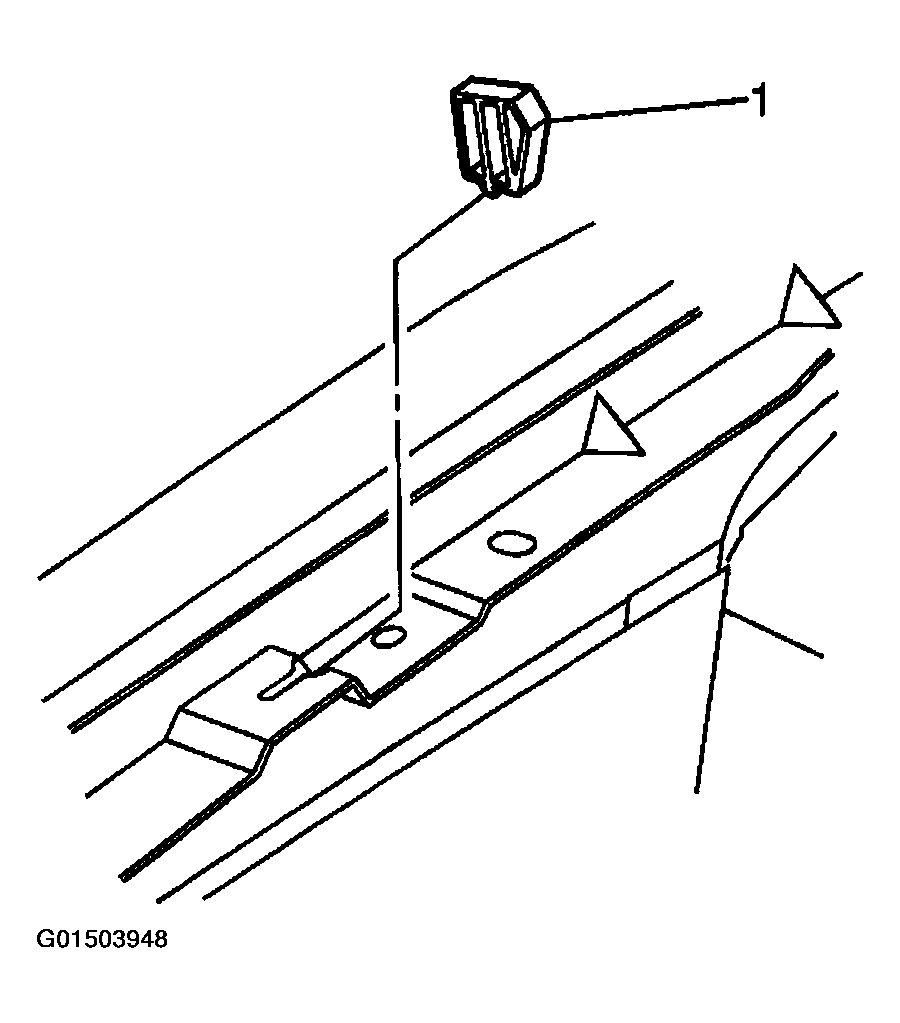

    Fig 2: Installing Hood Side Bumper To Fender
    G01503948Courtesy of GENERAL MOTORS CORP.
