Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood air extractor nuts from the water management tray and discard the nuts.

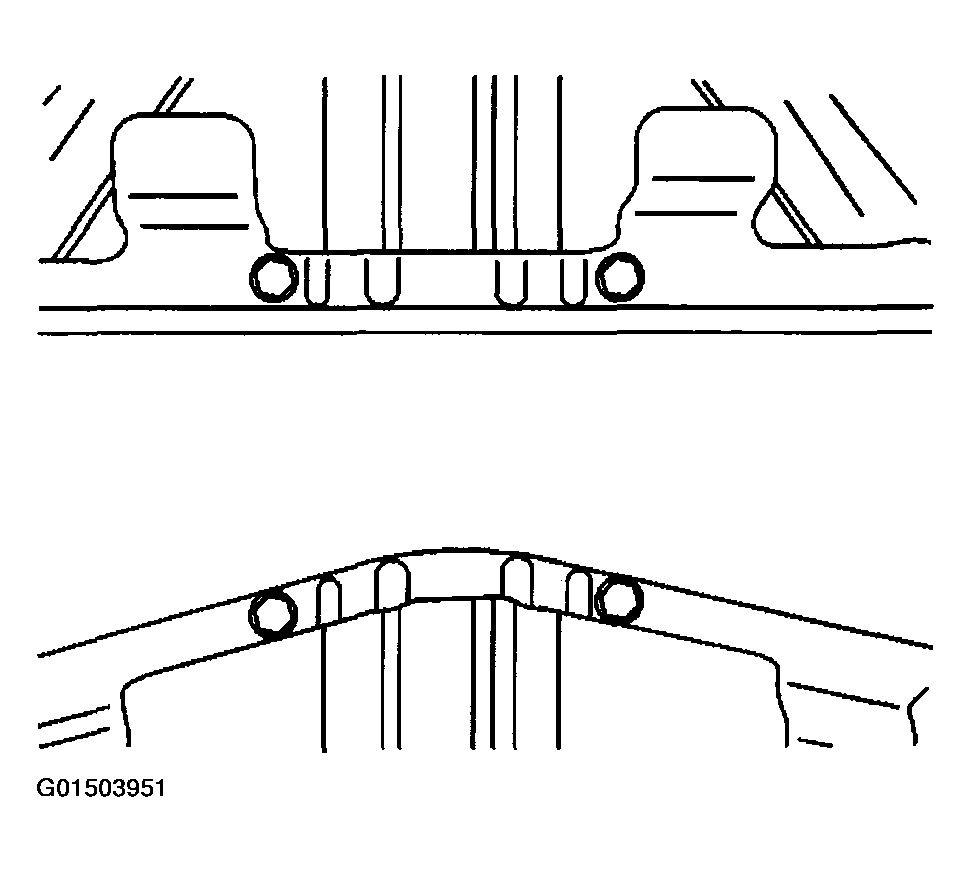

    Fig 1: View of Hood Air Extractor Nuts
    G01503951Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood air extractor from the hood using a small plastic flat-bladed tool.
    Fig 2: Removing Hood Air Extractor From Hood
    G01503952Courtesy of GENERAL MOTORS CORP.
  4. Remove all adhesive from the body panel using 3M™ Scotch Brite molding adhesive remover disk 3M™ P/N 07501 or equivalent.

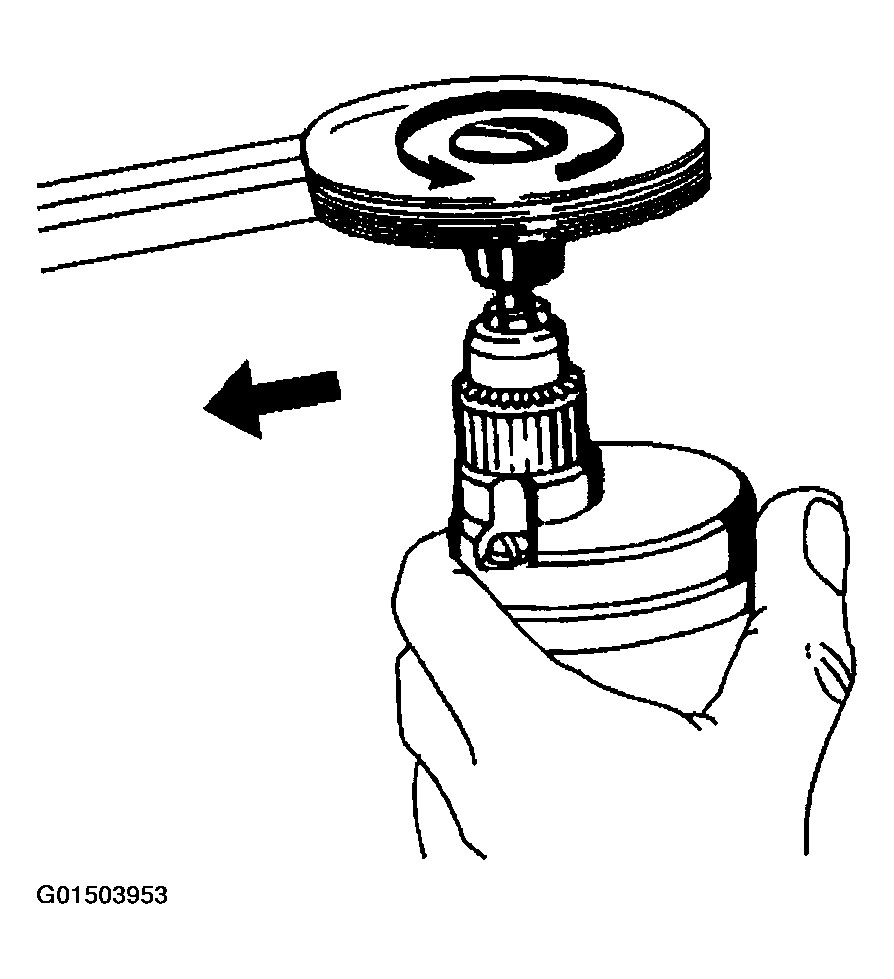

    Fig 3: Removing Adhesive From Body Panel
    G01503953Courtesy of GENERAL MOTORS CORP.
