Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender upper diagonal brace.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts to the front fender upper diagonal brace at the radiator support.

    Tighten

    Tighten the bolts to 47 N.m (35 Ib ft).

  3. Install the front fender diagonal brace-to-inner fender bolt.

    Tighten

    Tighten the bolt to 47 N.m (35 Ib ft).

  4. Close the hood.

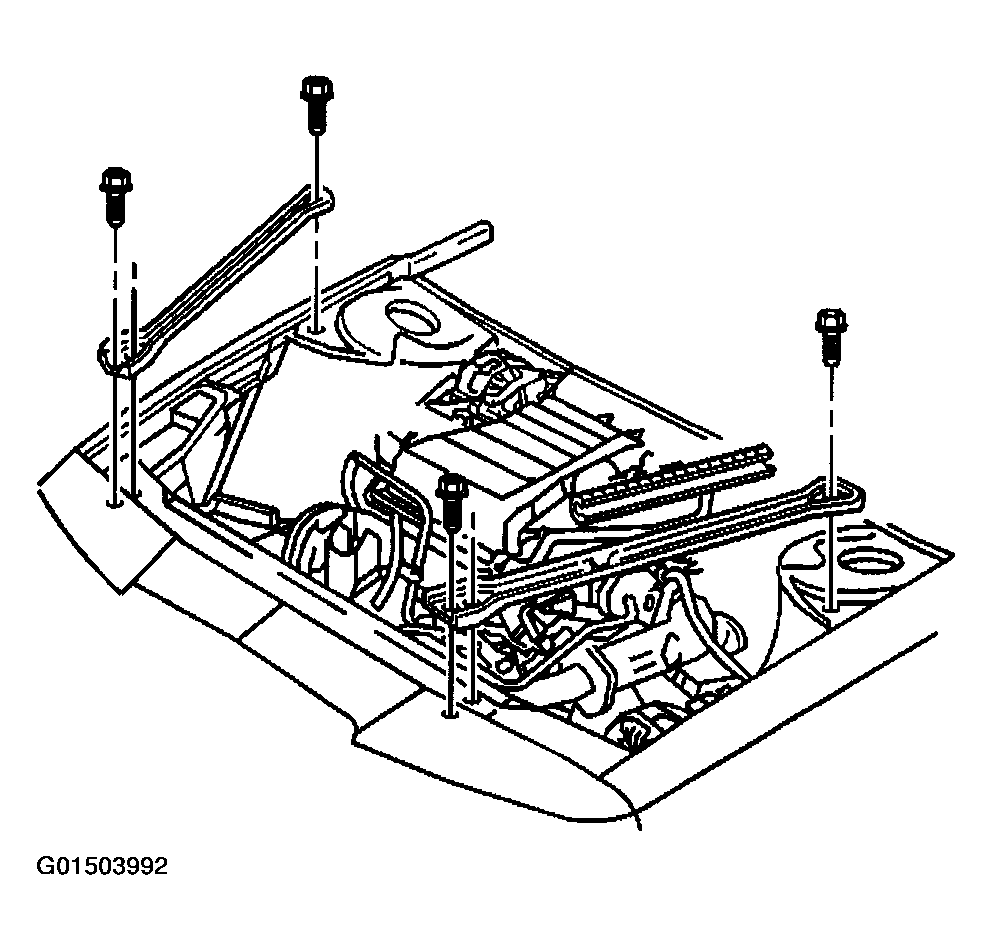

    Fig 1: Installing Front Fender Upper Diagonal Brace
    G01503992Courtesy of GENERAL MOTORS CORP.
