Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  3. Remove the windshield washer hose from the air inlet grille.

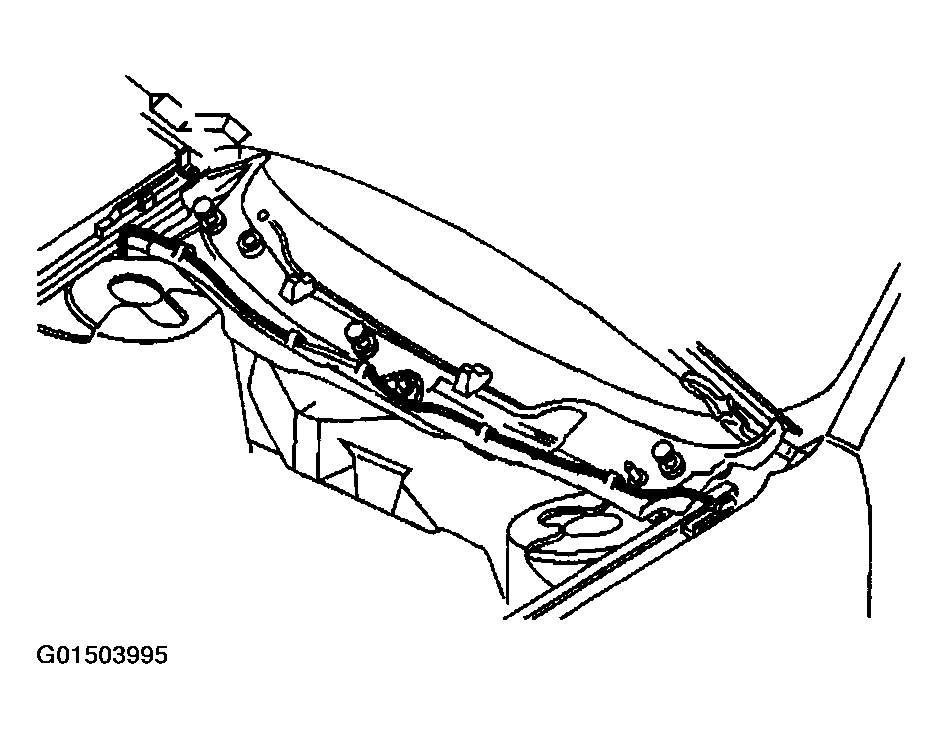

    Fig 1: Removing Windshield Washer Hose From Air Inlet Grille
    G01503995Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-in retainers from the air inlet grille, using the J 38778.
  5. Remove the screw from the air inlet grille.
  6. Remove the air inlet grille from the vehicle.

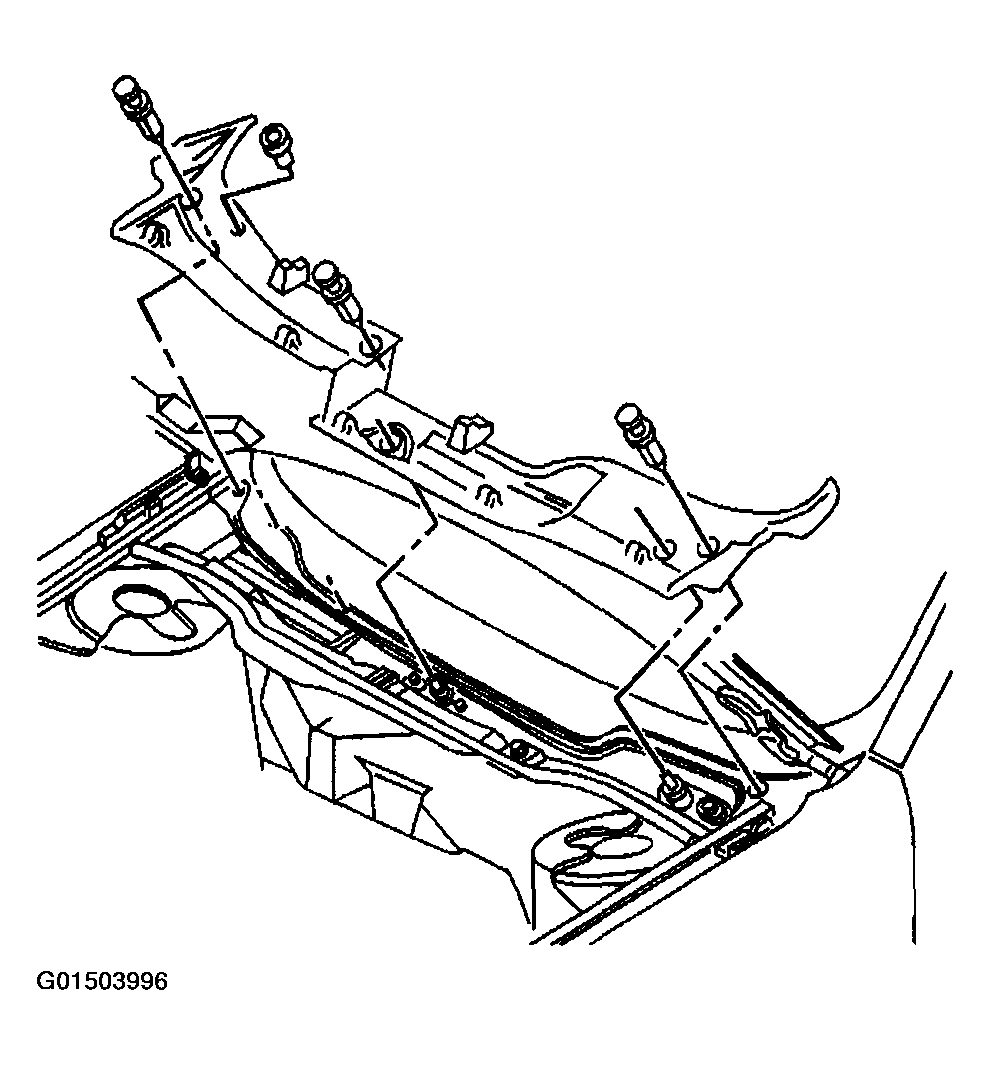

    Fig 2: Removing Air Inlet Grille
    G01503996Courtesy of GENERAL MOTORS CORP.
