Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet grille.
  2. Install the push-in retainers to the air inlet grille.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screw to the air inlet grille.

    Tighten

    Tighten the air inlet grille screw to 2 N.m (18 Ib in).

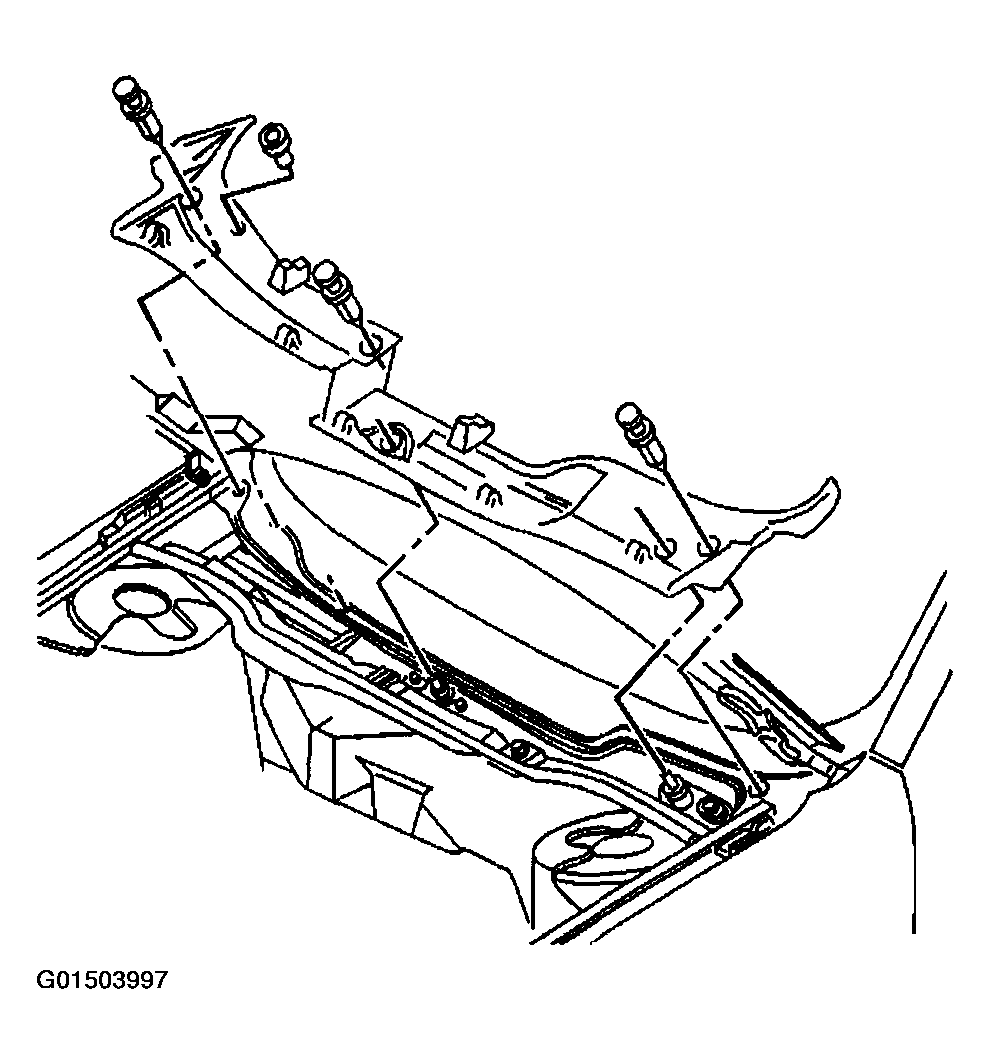

    Fig 1: Installing Air Inlet Grille
    G01503997Courtesy of GENERAL MOTORS CORP.
  4. Install the windshield washer hose to the air inlet grille.
  5. Install the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  6. Close the hood.

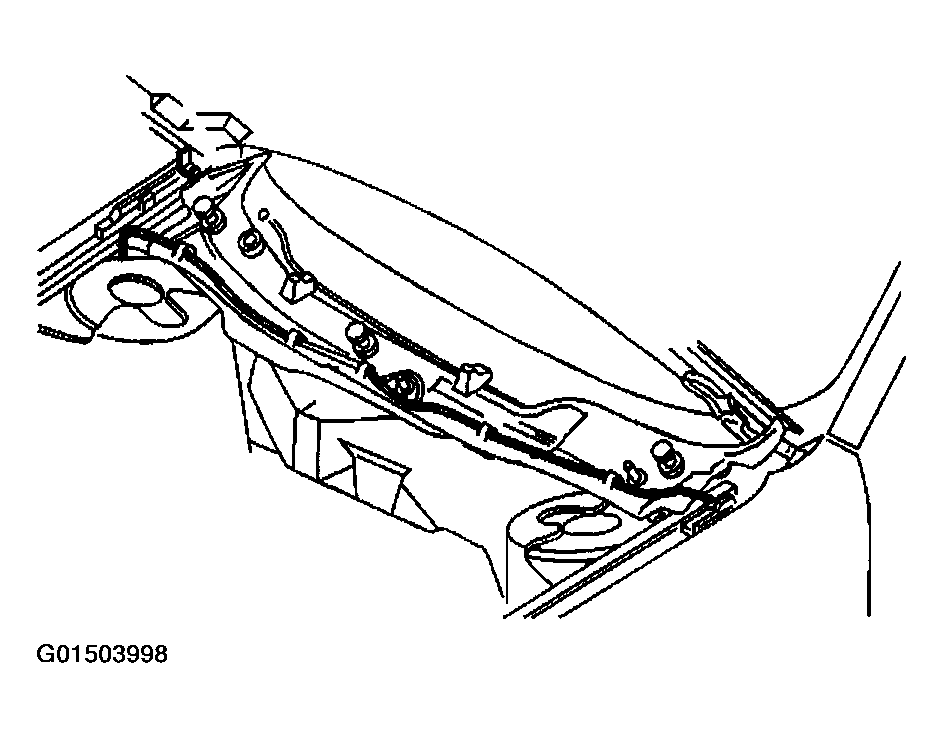

    Fig 2: Installing Windshield Washer Hose To Air Inlet Grille
    G01503998Courtesy of GENERAL MOTORS CORP.
