Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front license cover to the front bumper fascia.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the front license cover.

    Tighten

    Tighten the license plate cover screws to 2 N.m (18 lb in).

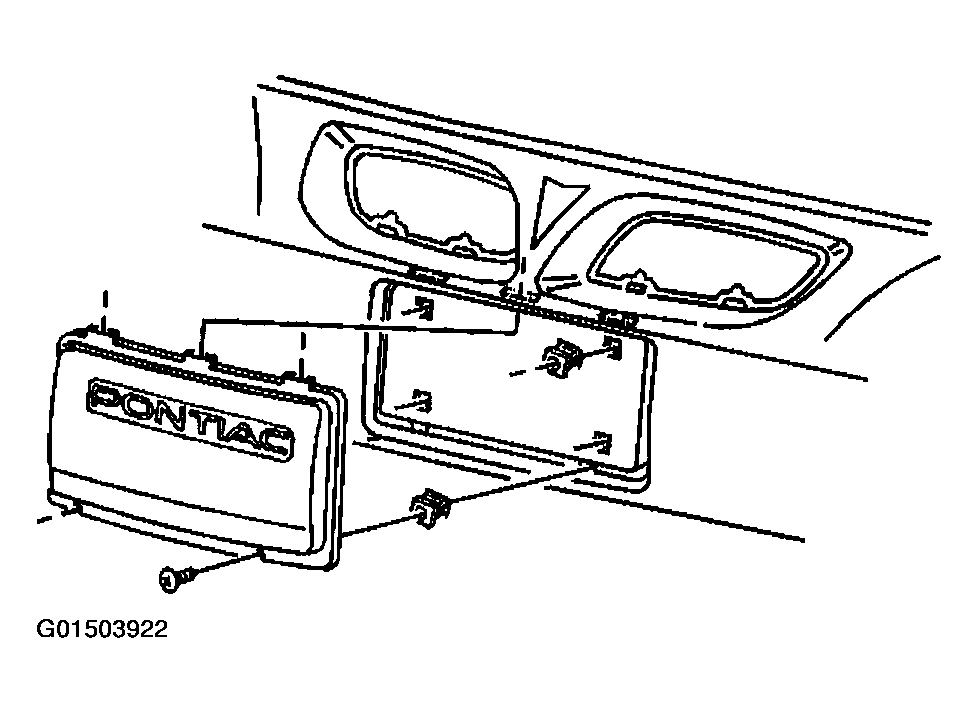

    Fig 1: Installing Front License Cover To Front Bumper Fascia
    G01503922Courtesy of GENERAL MOTORS CORP.
