Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER  .
  2. Remove the rear bumper energy absorber. Refer to ENERGY ABSORBER REPLACEMENT - REAR  .
  3. Remove the bolts from the rear bumper impact bar.
  4. Remove the rear bumper impact bar from the vehicle.

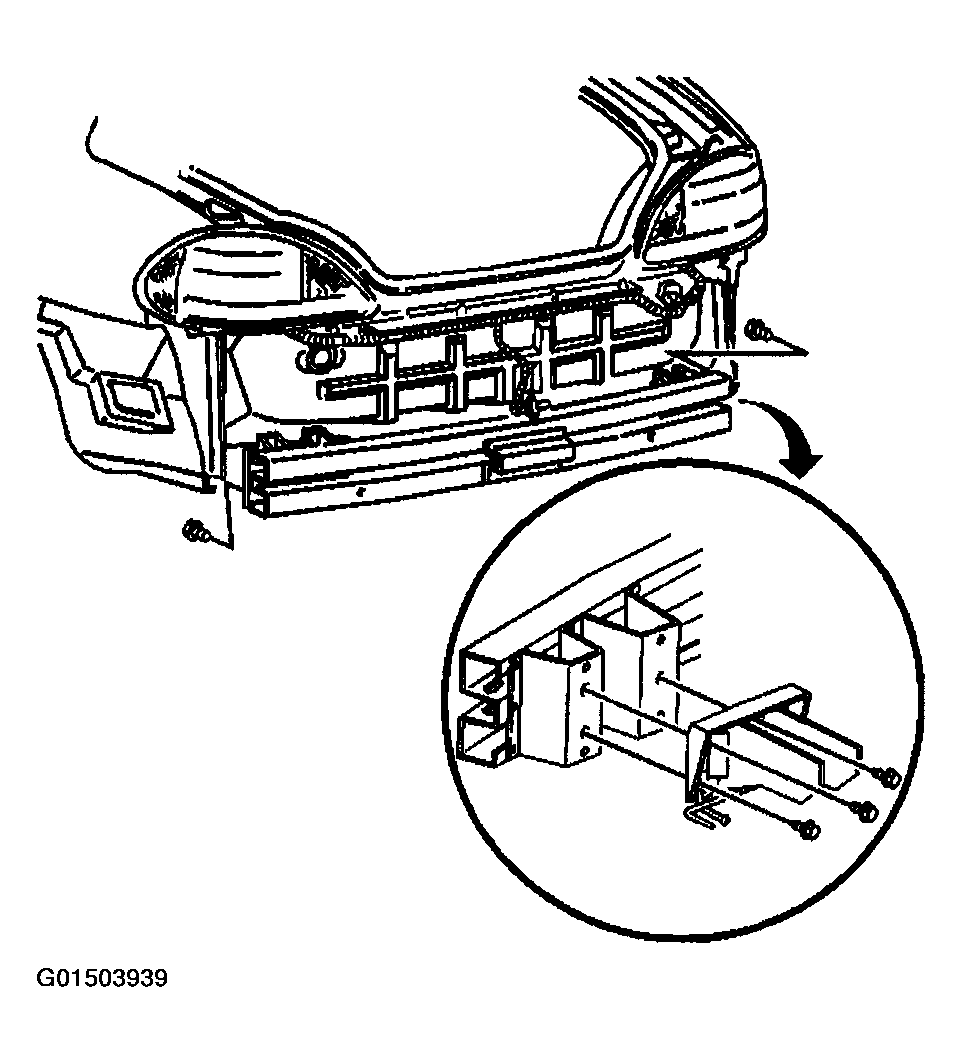

    Fig 1: Removing Rear Bumper Impact Bar
    G01503939Courtesy of GENERAL MOTORS CORP.
