Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .
  2. Remove the front bumper energy absorber. Refer to ENERGY ABSORBER REPLACEMENT - FRONT  .
  3. Remove the wiring harness from the rear of the front bumper impact bar.
  4. Remove the horn bracket and set aside. Refer to HORN REPLACEMENT in Horns.
  5. Remove the bolts from the front bumper impact bar.
  6. Remove the front bumper impact bar from the vehicle.

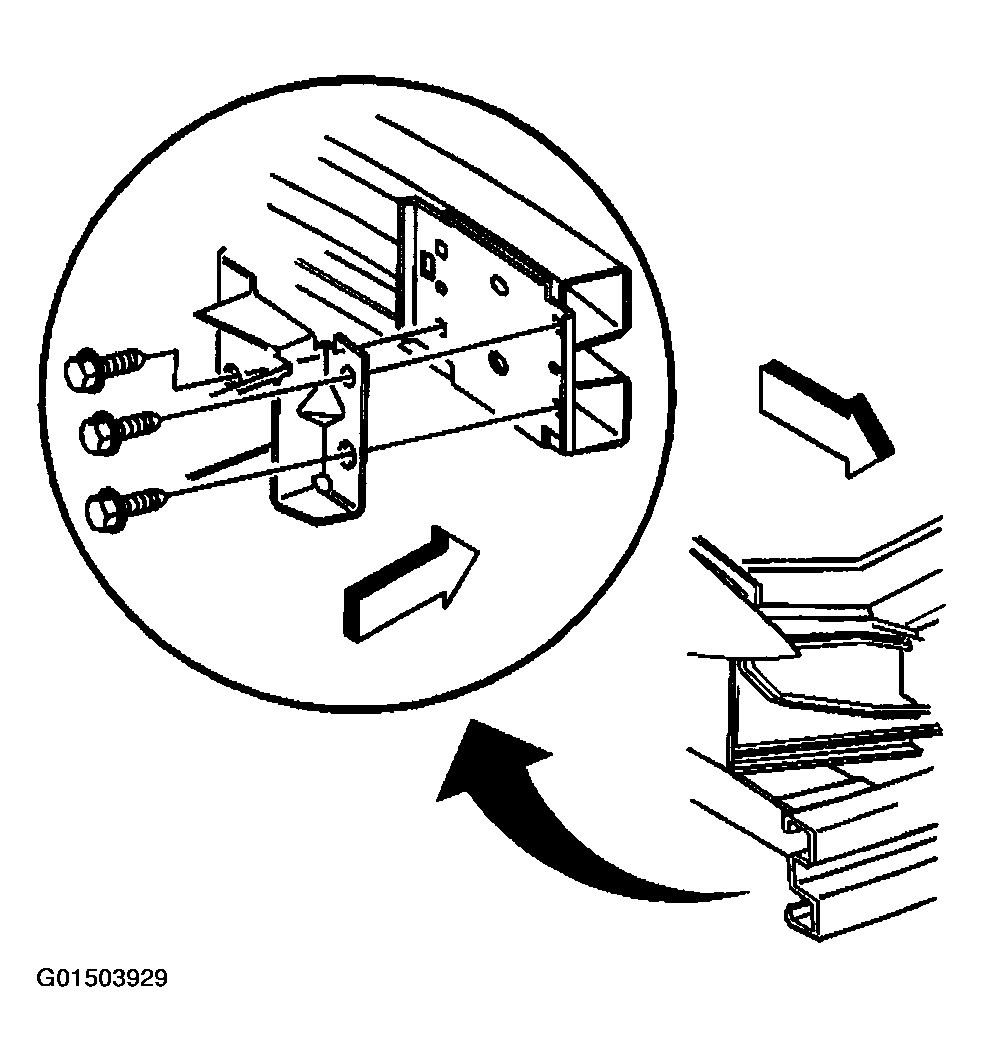

    Fig 1: Removing Front Bumper Impact Bar
    G01503929Courtesy of GENERAL MOTORS CORP.
