Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  1. Apply tape to the corners of the hood and the adjacent surfaces.
  2. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  3. Remove the headlight assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT in Lighting Systems.
  4. Remove the fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT in Lighting Systems, if equipped.
  5. Remove the push-in retainers from the front bumper fascia to radiator air baffle using J 38778.
  6. Remove the front bumper fascia to front bumper fascia upper support center bolt.
  7. Remove the screws from the front bumper fascia to the front fender liner.
  8. Remove the bolt from the front bumper fascia to the front fender.
  9. Remove the push-in retainers from the front bumper fascia using J 38778.
  10. Remove the front bumper fascia from the vehicle.

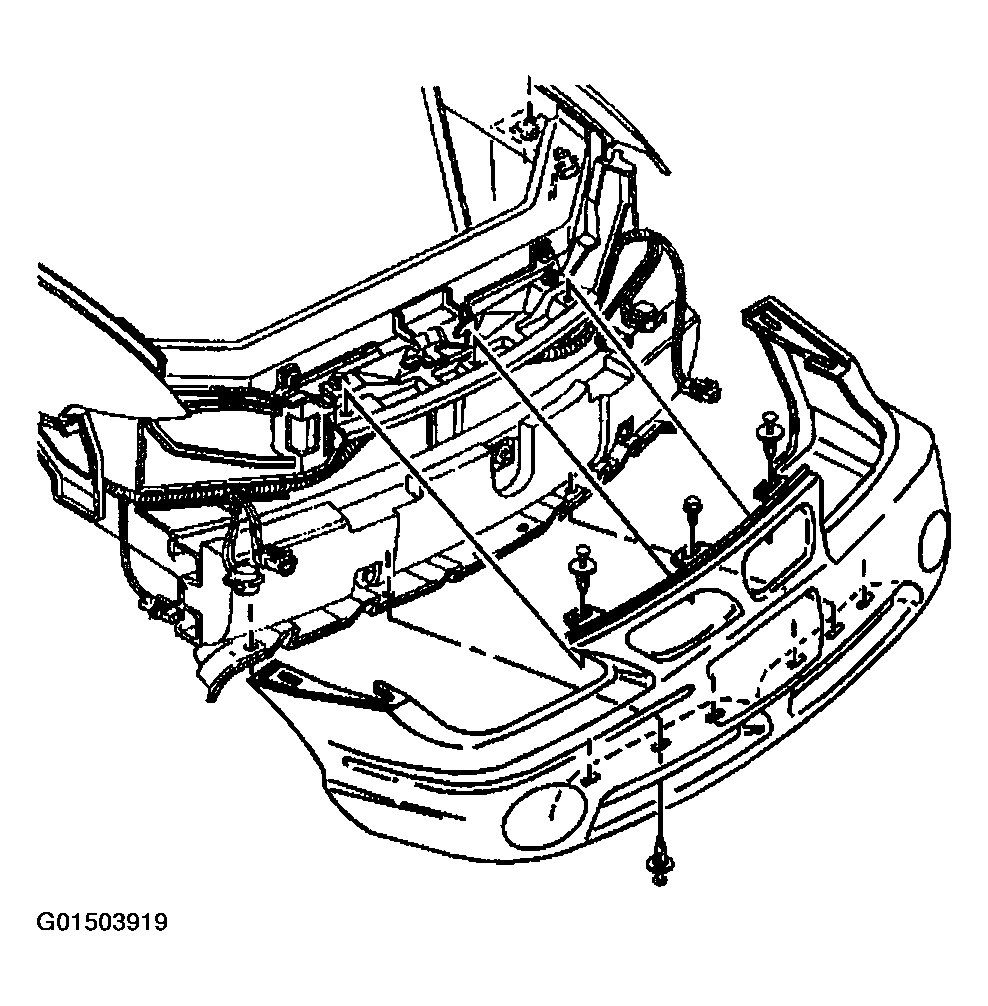

    Fig 1: Removing Front Bumper Fascia From Vehicle
    G01503919Courtesy of GENERAL MOTORS CORP.
