Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear bumper energy absorber to the rear bumper impact bar.
    IMPORTANT: Route the tail lamp wiring through the cutout in the rear bumper energy absorber.
  2. Install the push-in retainers to the rear bumper energy absorber.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER  .

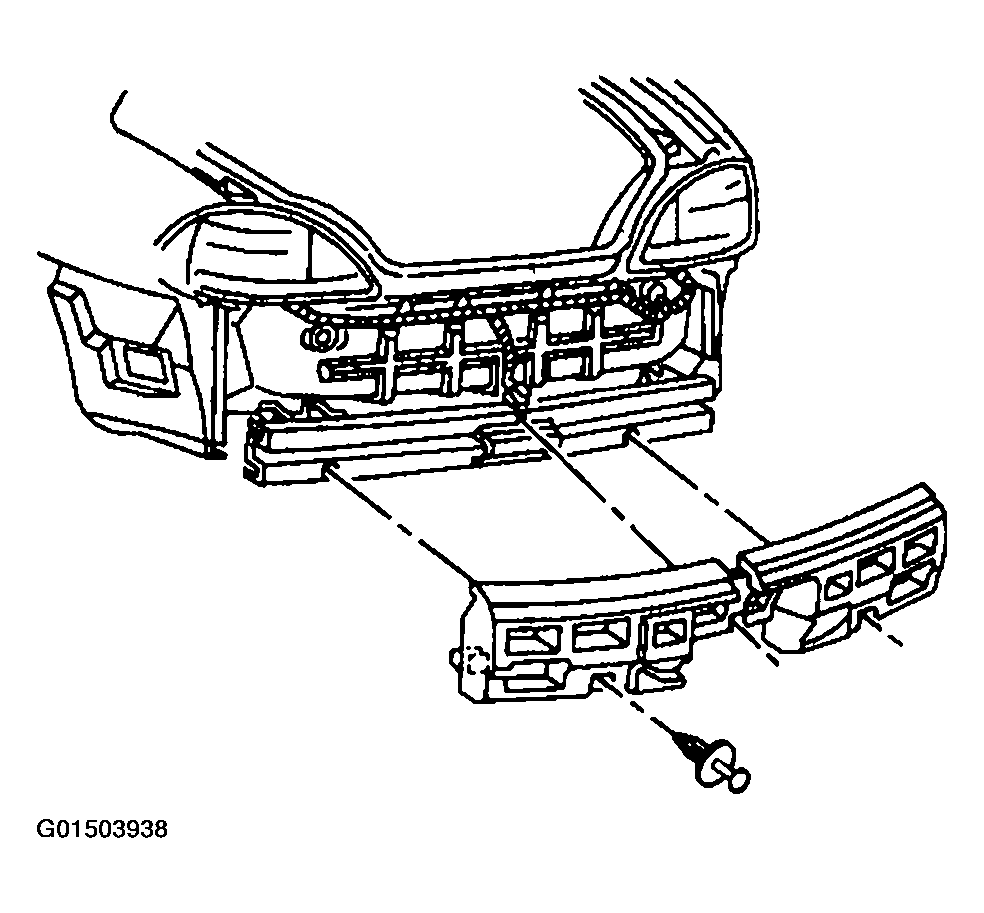

    Fig 1: Installing Rear Bumper Energy Absorber To Rear Bumper Impact Bar
    G01503938Courtesy of GENERAL MOTORS CORP.
