Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .
  2. Remove the push-in retainers from the front bumper energy absorber using J 38778.
  3. Remove the front bumper energy absorber from the front bumper impact bar.

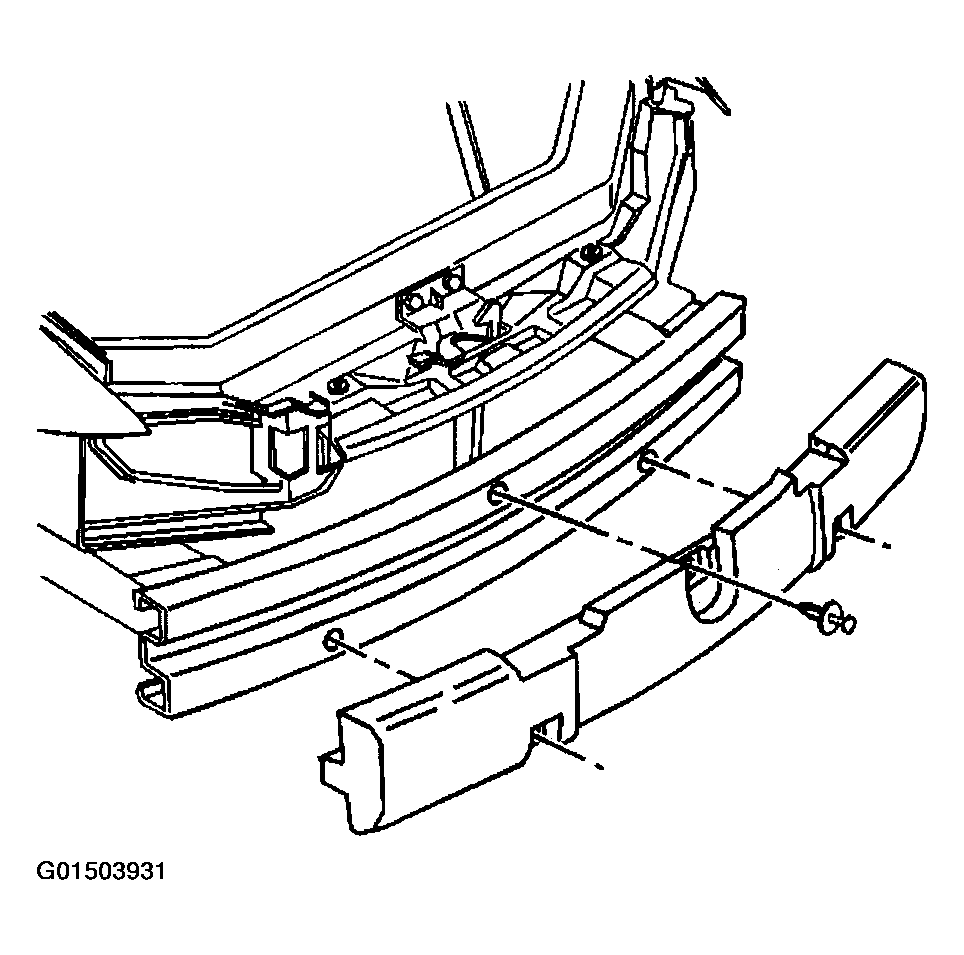

    Fig 1: Removing Front Bumper Energy Absorber From Front Bumper Impact Bar
    G01503931Courtesy of GENERAL MOTORS CORP.
