Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT in Lighting Systems.
  3. Disconnect the horn electrical connector.

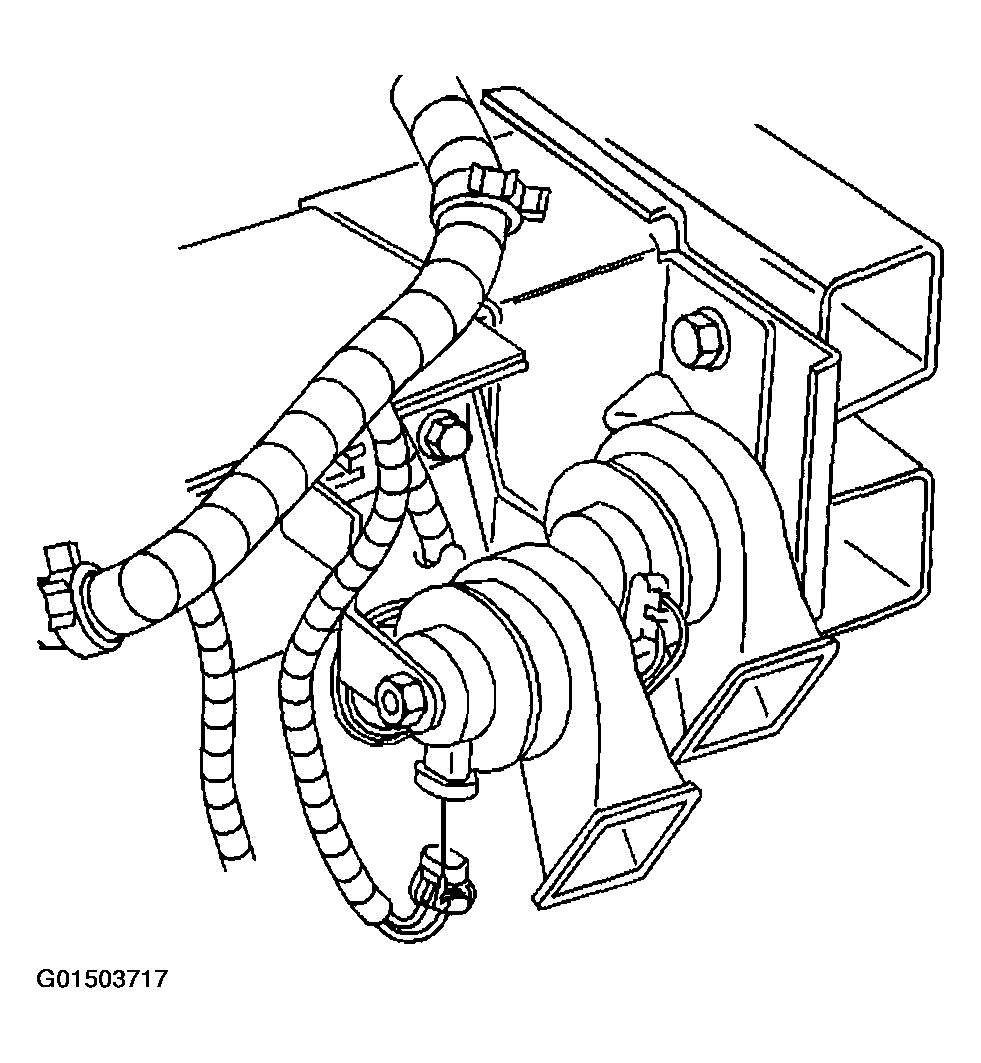

    Fig 1: Disconnecting Horn Electrical Connector
    G01503717Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn bracket bolt.
  5. Remove the horn from the front frame rail extension.

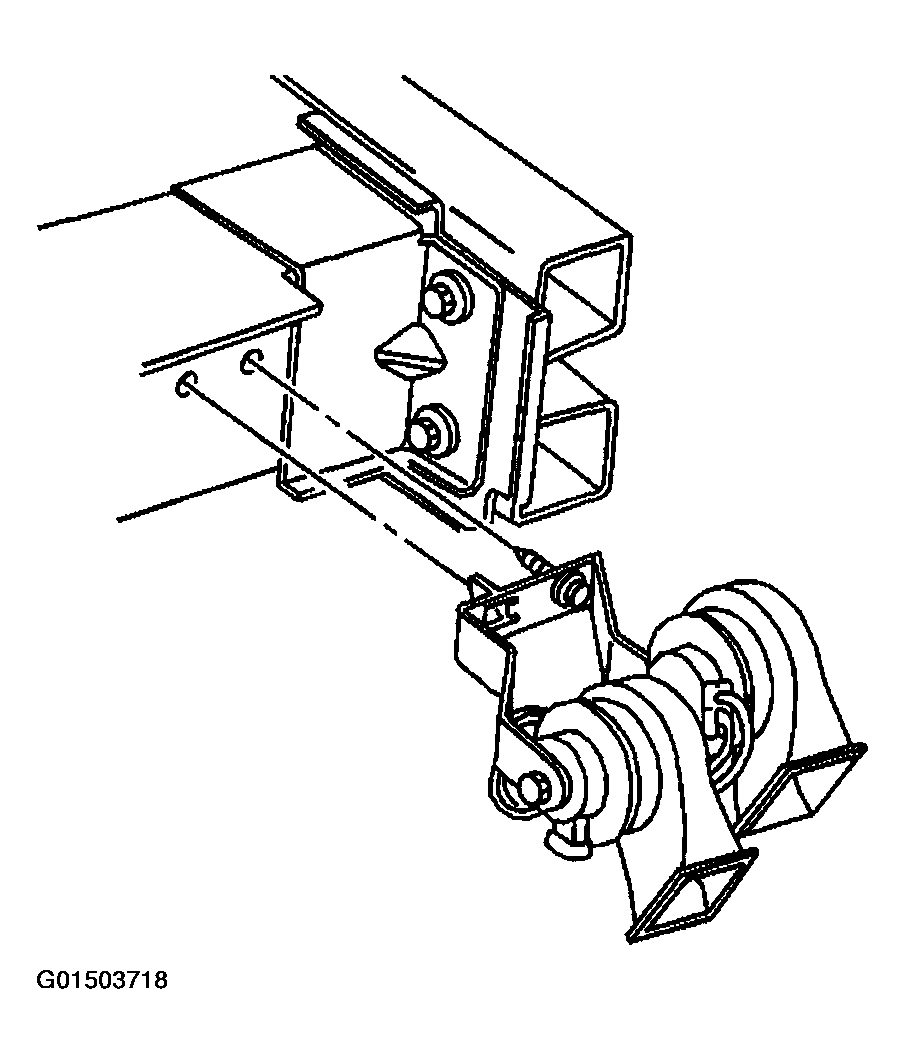

    Fig 2: Removing Horn From Front Frame Rail Extension
    G01503718Courtesy of GENERAL MOTORS CORP.
