Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn to the front frame rail extension; insert the horn anti-rotation tab into the slot on the frame rail extension.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the horn bracket bolt.

    Tighten

    Tighten the bolt to 15 N.m (11 Ib. ft).

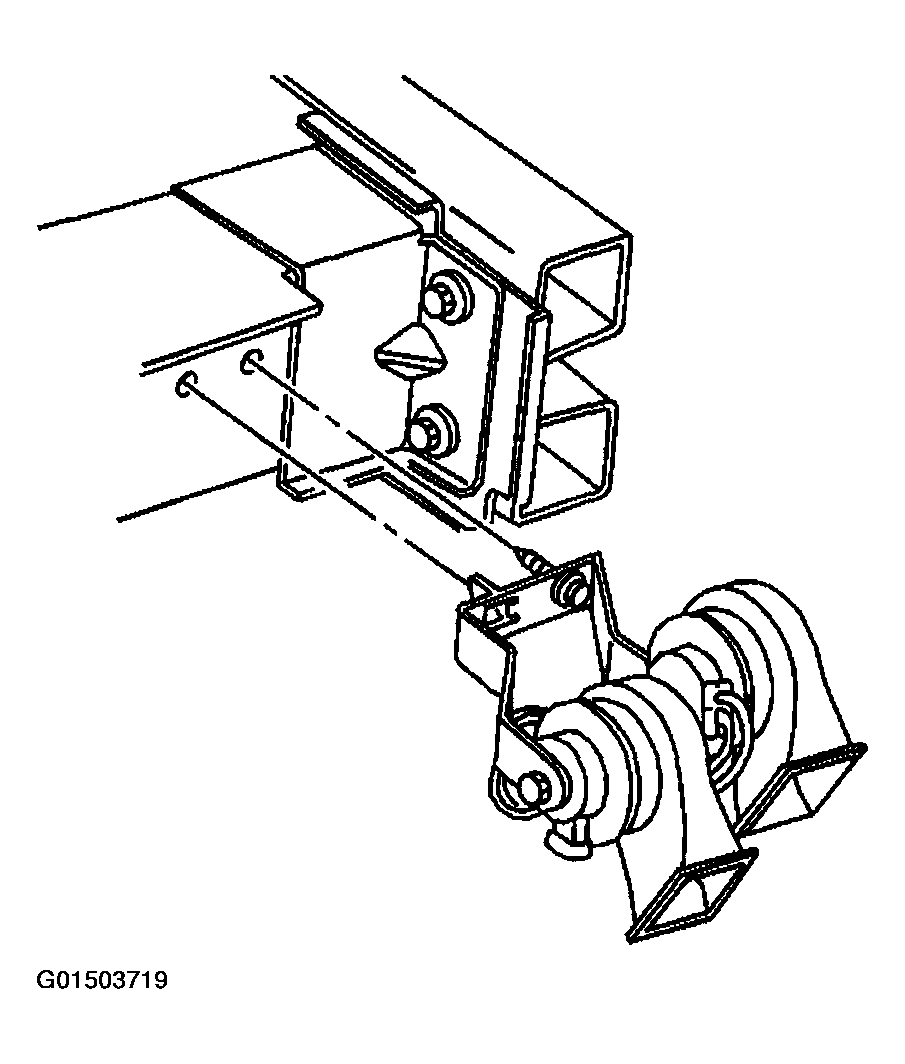

    Fig 1: Positioning Horn To Front Frame Rail Extension
    G01503719Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn electrical connector.
  4. Install the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT in Lighting Systems.
  5. Close the hood.

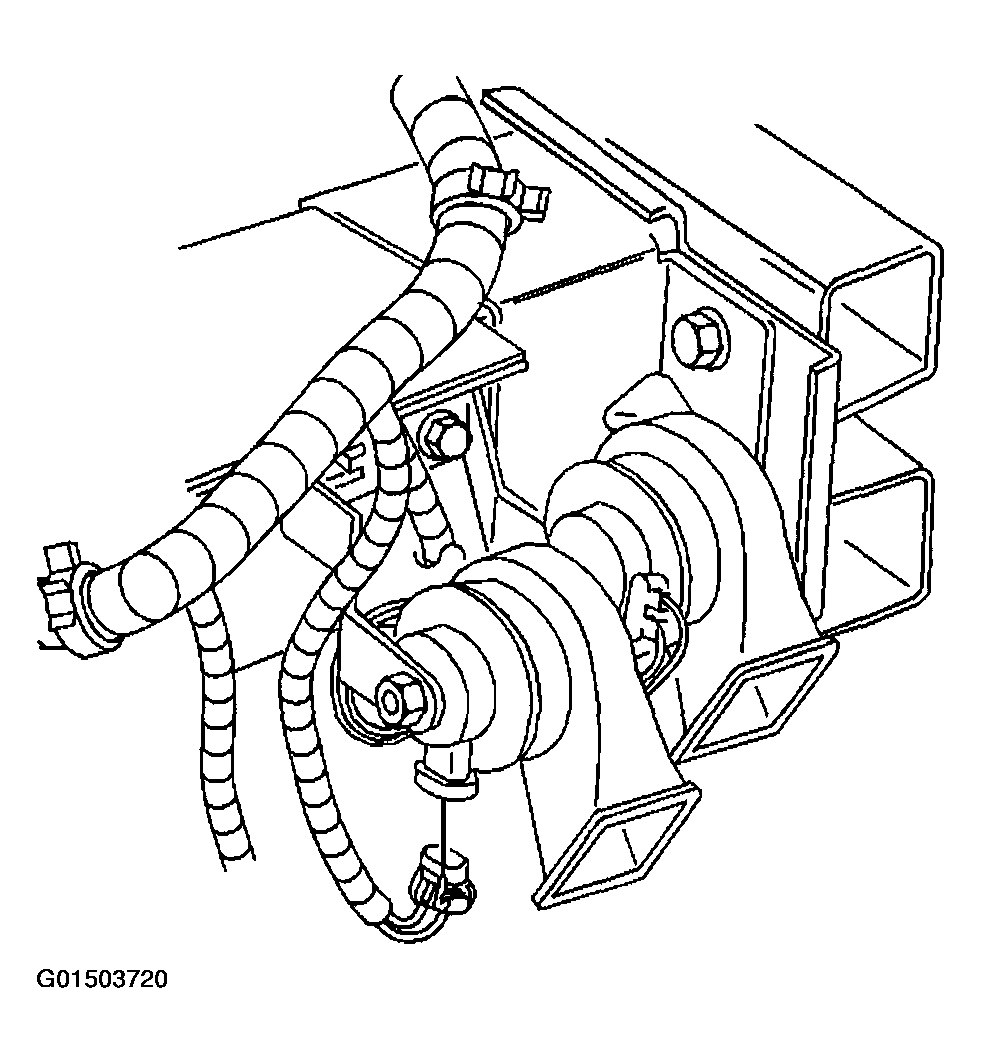

    Fig 2: Connecting Horn Electrical Connector
    G01503720Courtesy of GENERAL MOTORS CORP.
