Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake.
  2. Position the transaxle selector in the low range.
  3. Raise the front floor console armrest.
  4. Remove the front floor console storage compartment.
  5. Remove the mat from the storage compartment.
  6. Open the console cup holder.

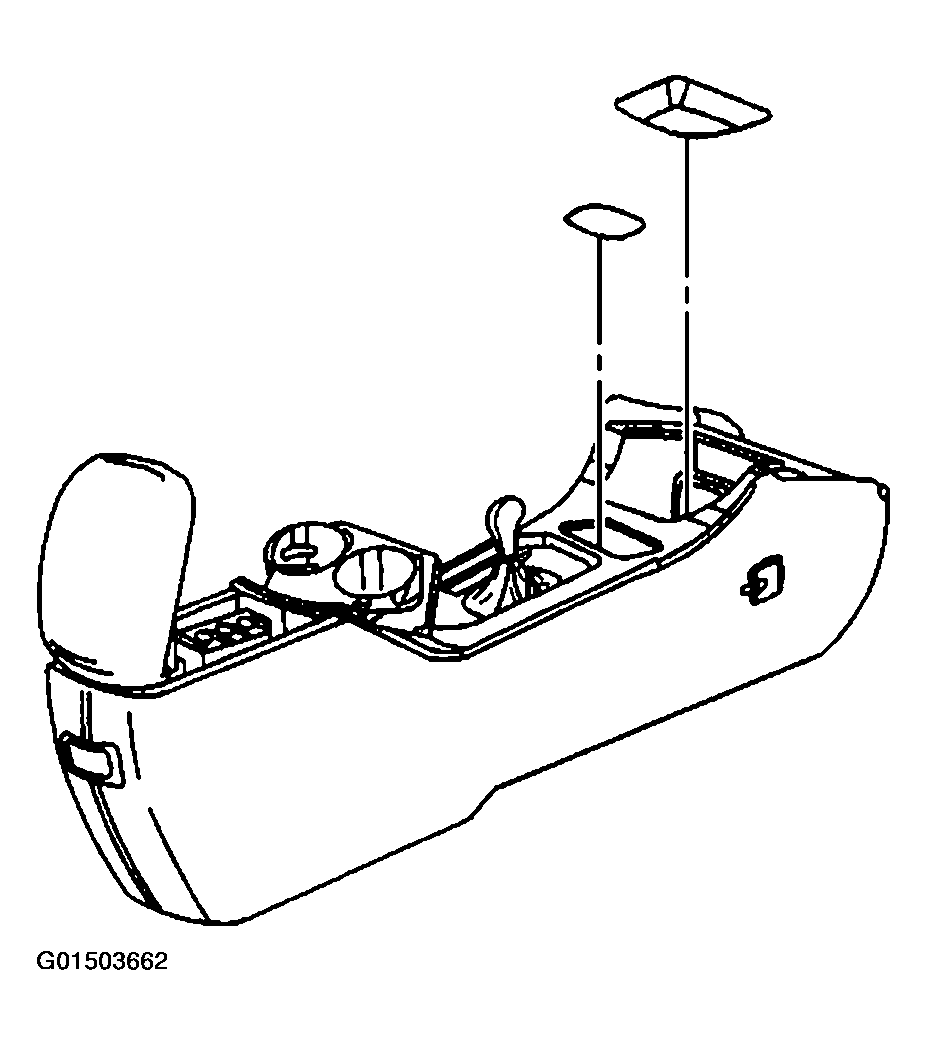

    Fig 1: Removing Mat From Storage Compartment
    G01503662Courtesy of GENERAL MOTORS CORP.
  7. Remove the console trim plate, starting at the rear and pulling up, working forward in order to release the retainers.
  8. Remove the console trim plate from the front floor console.

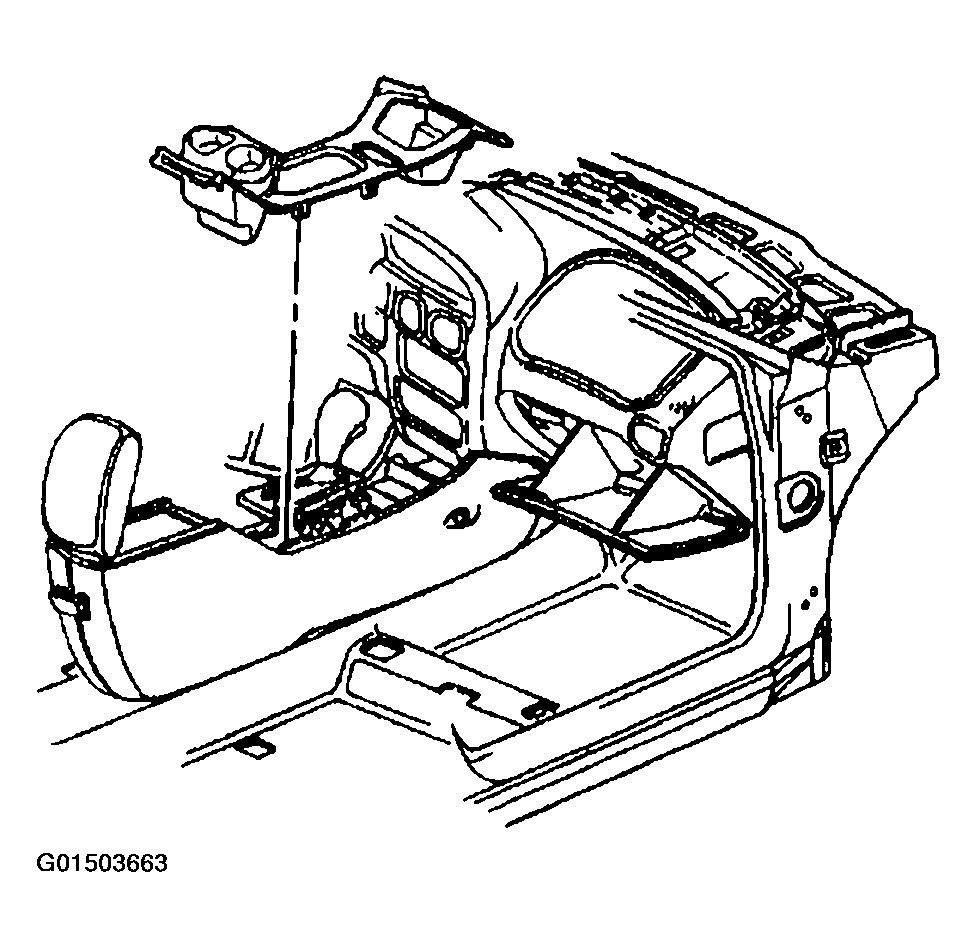

    Fig 2: Removing Console Trim Plate From Front Floor Console
    G01503663Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the electrical connector from the driver's seat heater switch, if equipped.

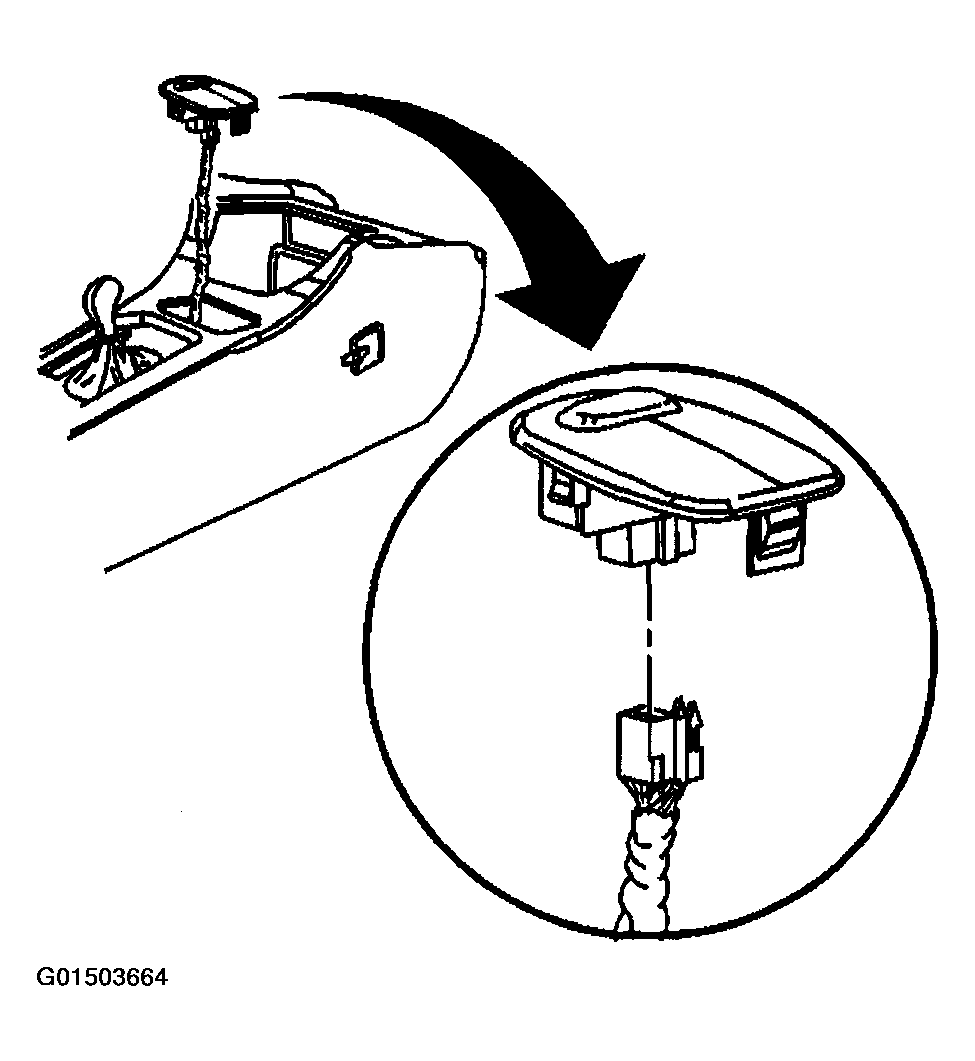

    Fig 3: Disconnecting Electrical Connector From Driver's Seat Heater Switch
    G01503664Courtesy of GENERAL MOTORS CORP.
