Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the driver's seat heater switch, if equipped.

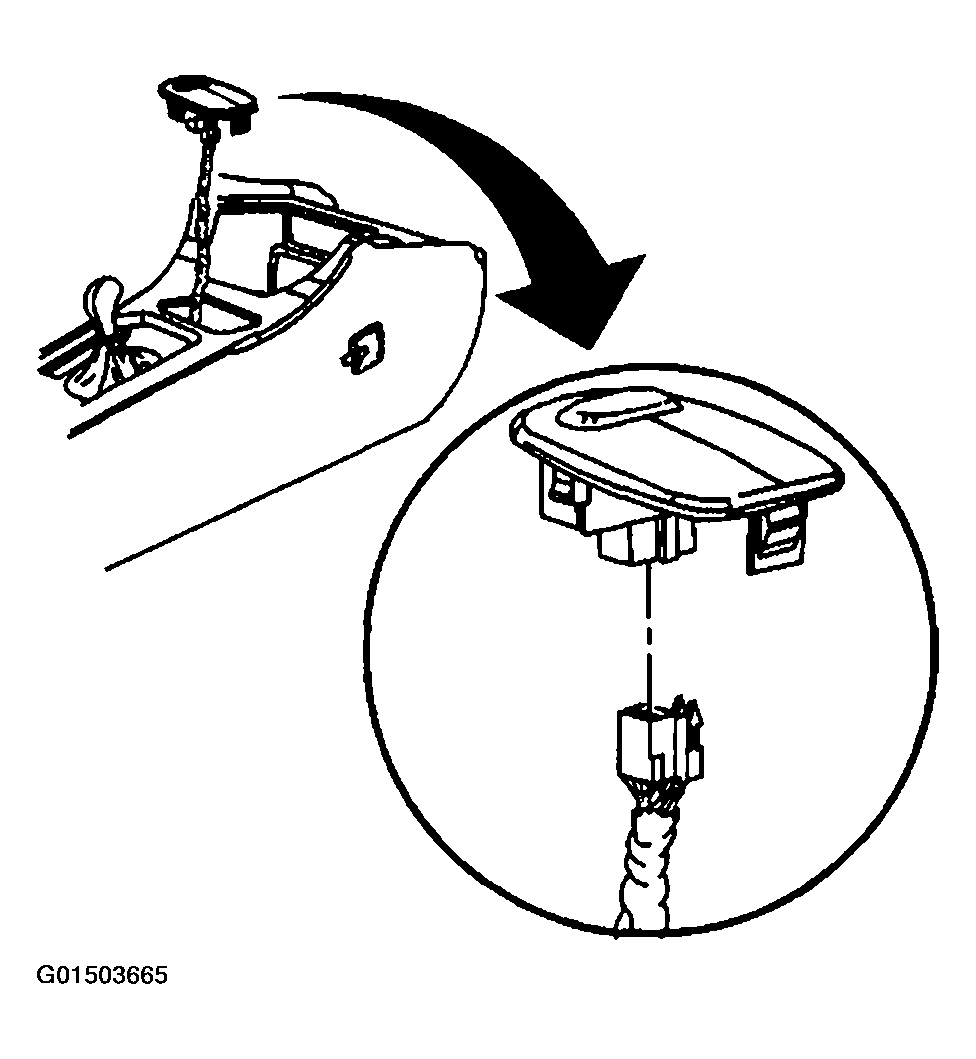

    Fig 1: Connecting Electrical Connectors To Driver's Seat Heater Switch
    G01503665Courtesy of GENERAL MOTORS CORP.
  2. Install the trim plate to the front floor console by pressing down firmly until fully seated.
  3. Reposition the transaxle selector into PARK.
  4. Close the console cup holder.
  5. Install the console storage compartment.
  6. Lower the console armrest.

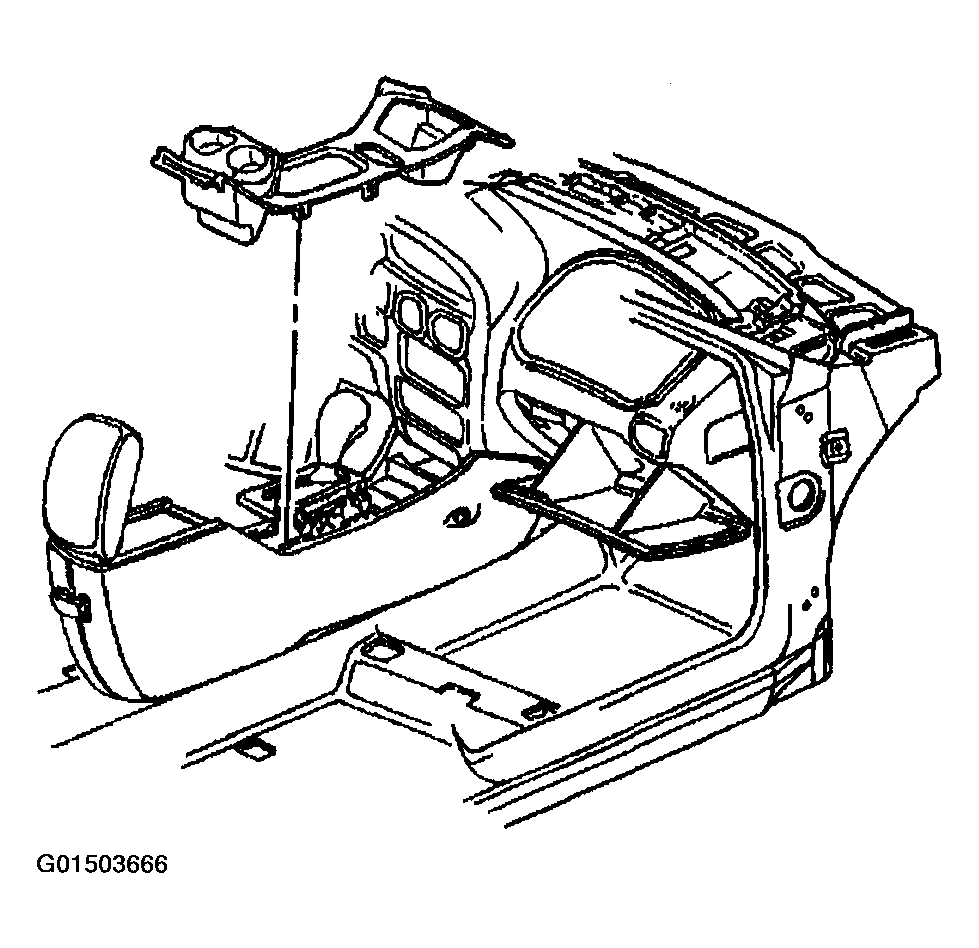

    Fig 2: Installing Trim Plate To Front Floor Console
    G01503666Courtesy of GENERAL MOTORS CORP.
  7. Install the console storage compartment mat to the console storage compartment.
  8. Release the park brake.

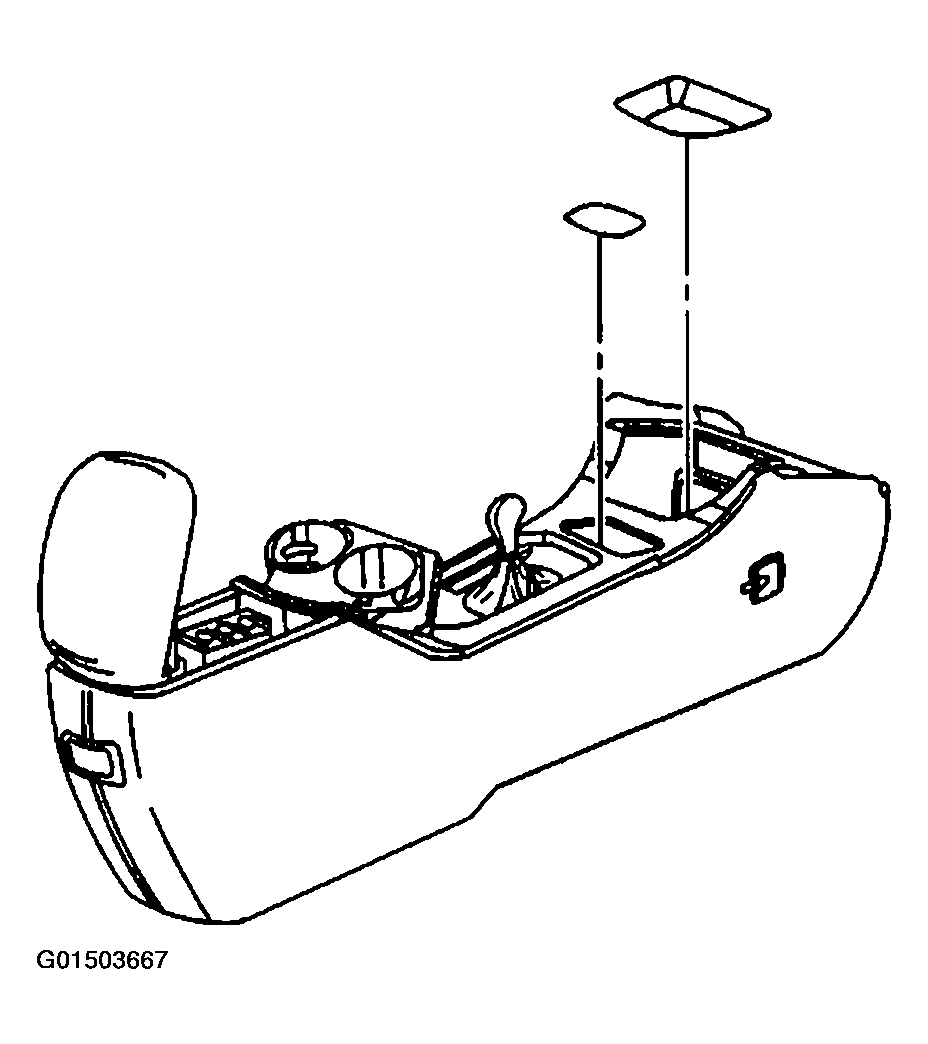

    Fig 3: Installing Console Storage Compartment Mat To Console Storage Compartment
    G01503667Courtesy of GENERAL MOTORS CORP.
