Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake.
  2. Shift the transaxle shift lever from Park to 1.
  3. Remove the left instrument panel (I/P) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .
  4. Remove the steering column filler. Refer to STEERING COLUMN FILLER REPLACEMENT  .
  5. Tilt the steering wheel to the lowest position.
  6. Grasp the edge of the I/P cluster trim plate. Pull rearward to disengage the retainers.
  7. Disconnect the electrical connector from the fog lamp switch.
  8. Remove the I/P cluster trim plate.

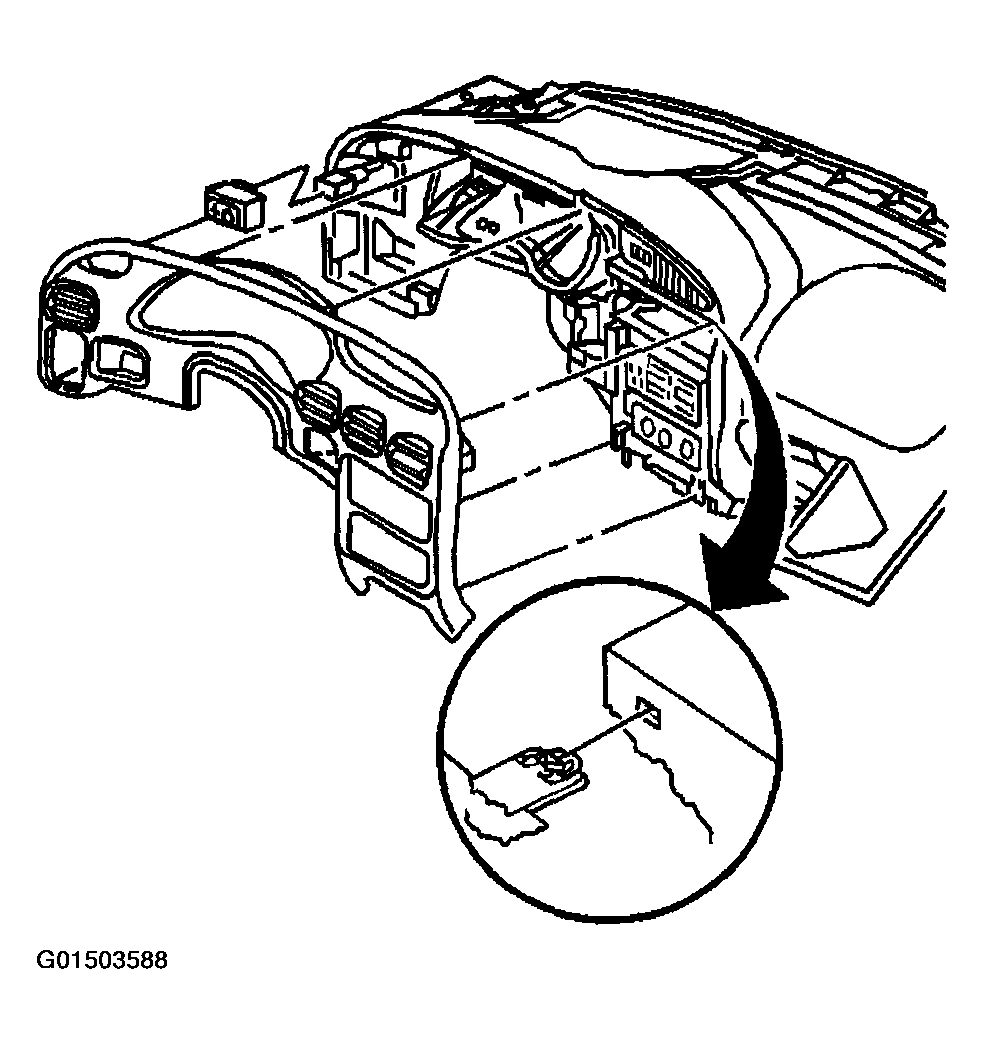

    Fig 1: Removing Instrument Panel Cluster Trim Plate
    G01503588Courtesy of GENERAL MOTORS CORP.
