Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .
  2. Remove the bolts from the bottom of the steering column filler.
  3. Pull the steering column filler rearward and upward in order to unsnap the filler from the IP.
  4. Remove the connector from the low tire reset switch, if equipped.

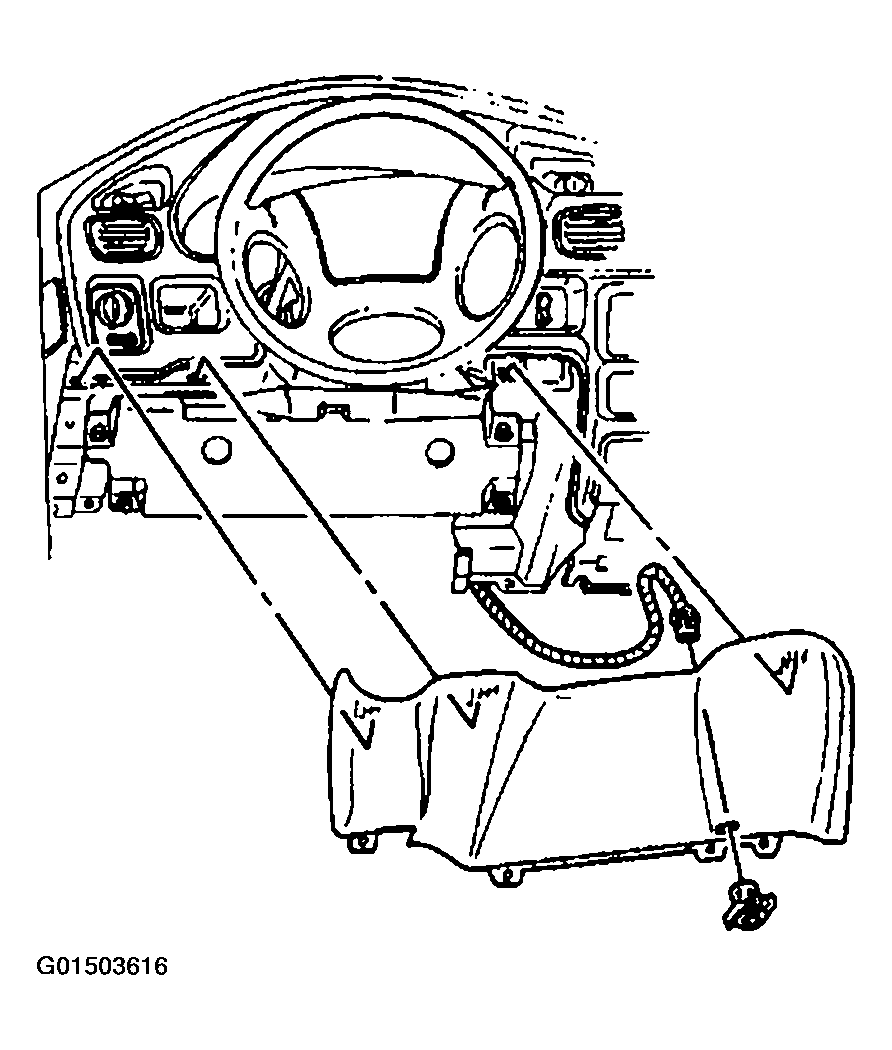

    Fig 1: Removing Left Instrument Panel Insulator
    G01503616Courtesy of GENERAL MOTORS CORP.
