Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the IP compartment latch with the IP compartment door.

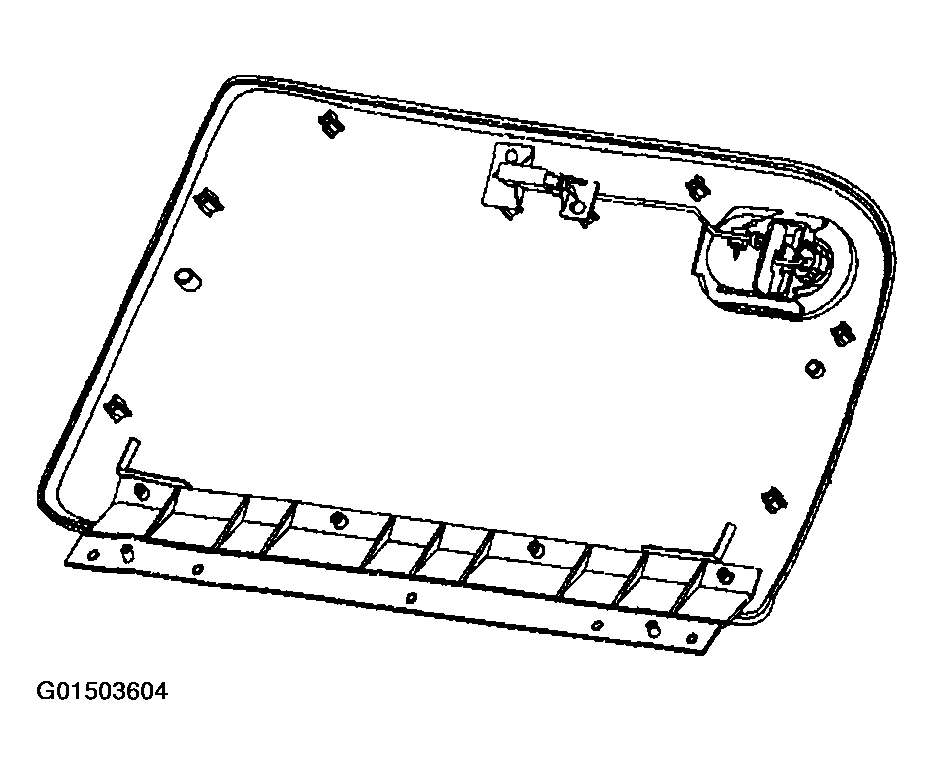

    Fig 1: Installing Instrument Panel Compartment Door Latch
    G01503604Courtesy of GENERAL MOTORS CORP.
  2. Slide the retainer clip onto the IP compartment latch.
  3. Route the lock rod into the IP latch.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the IP compartment latch screws.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

  5. Close the IP compartment door.

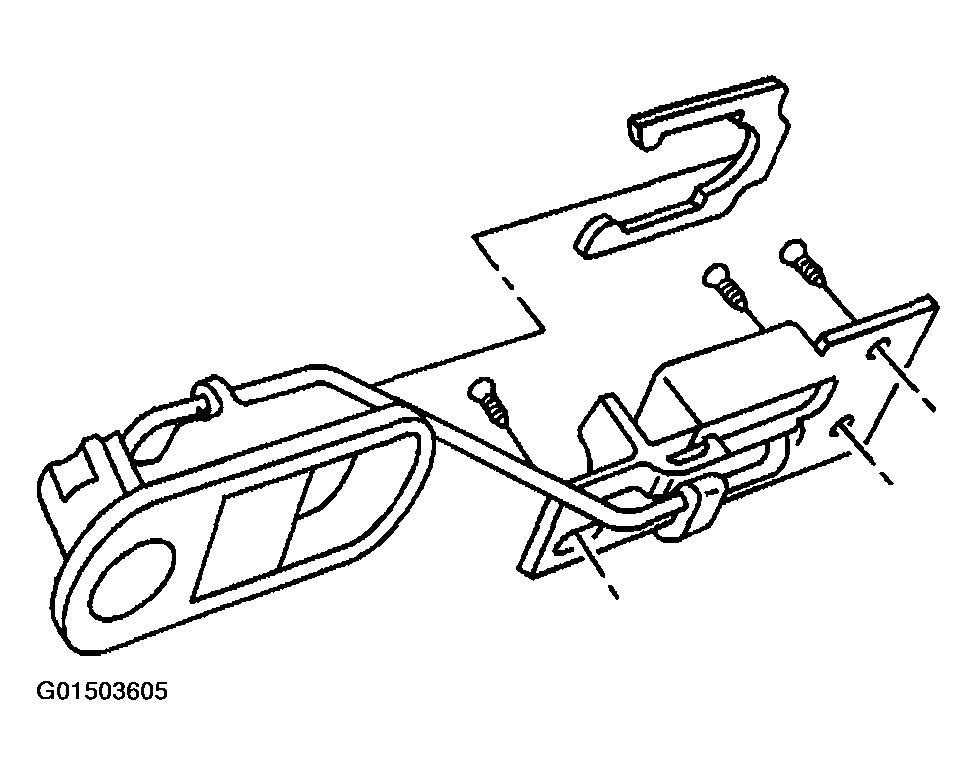

    Fig 2: Installing Instrument Panel Compartment Door Latch Screws
    G01503605Courtesy of GENERAL MOTORS CORP.
