Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IPC) cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the IPC screws.
  3. Rotate the IPC rearward and lift up on the top of the cluster in order to disengage the locating pins.

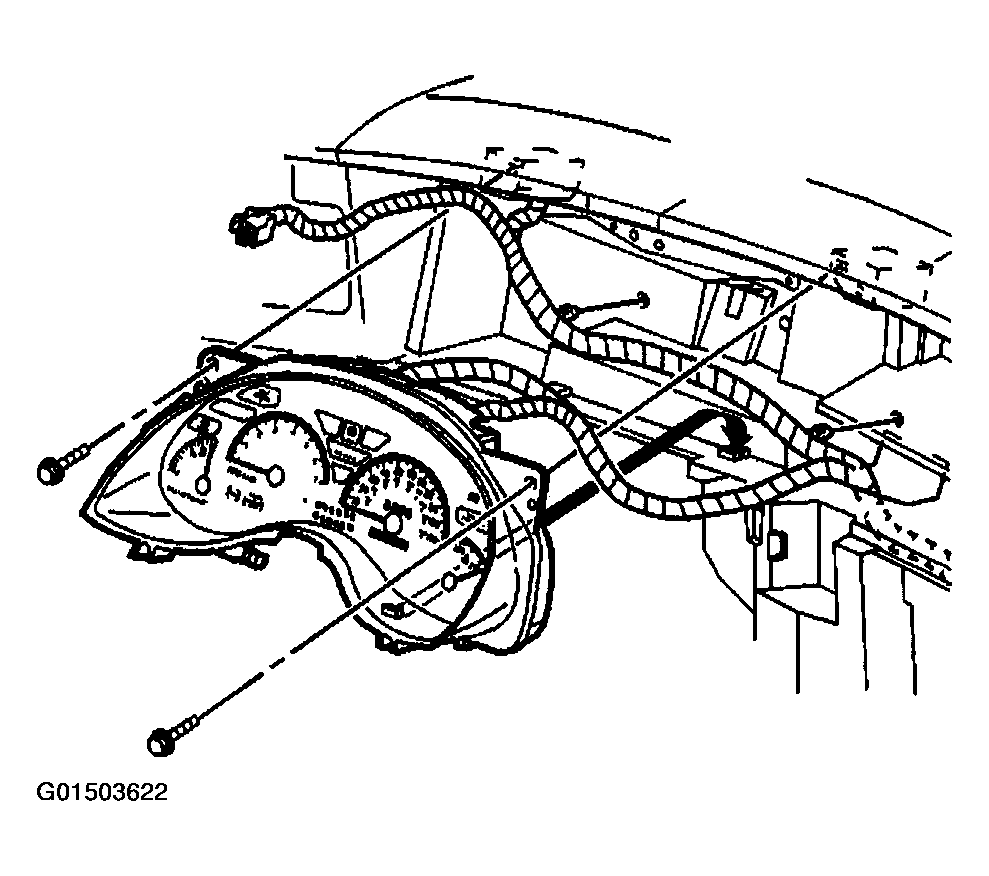

    Fig 1: Removing Instrument Panel Cluster Screws
    G01503622Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors from the IPC:
    • The black electrical connector (1)
    • The natural electrical connector (2)
  5. Remove the IPC.

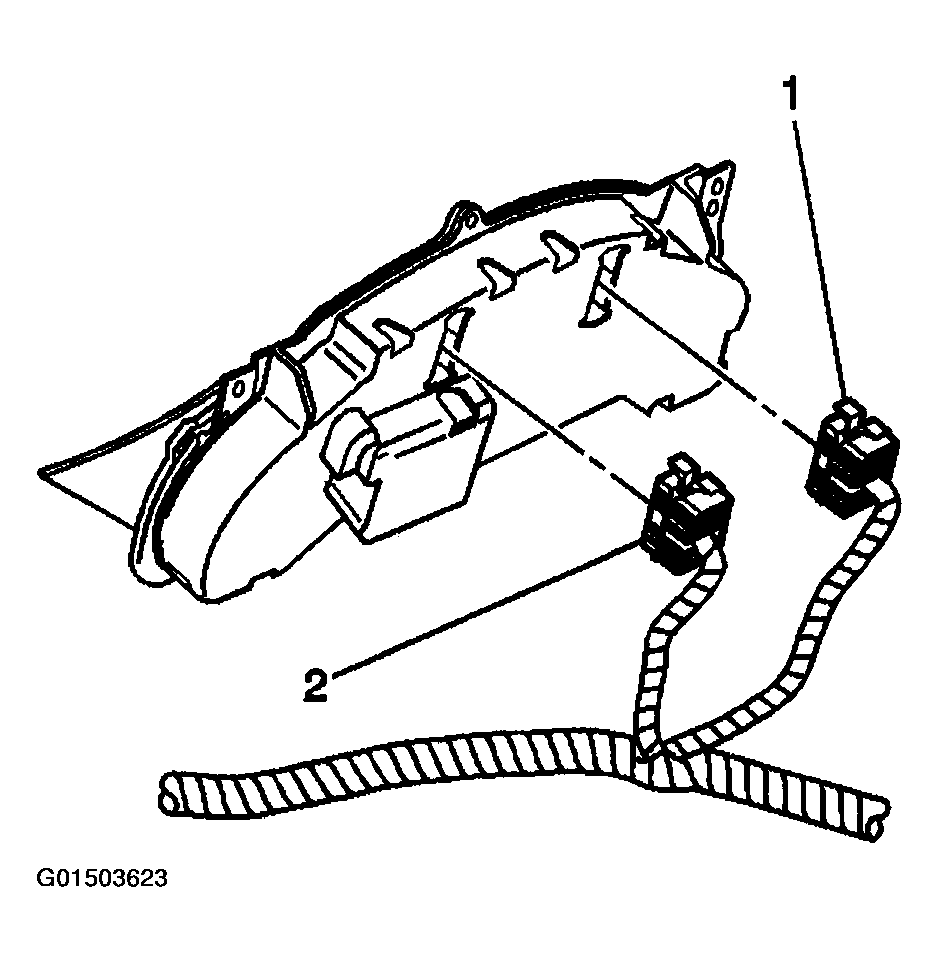

    Fig 2: Disconnecting Electrical Connectors From Instrument Panel Cluster
    G01503623Courtesy of GENERAL MOTORS CORP.
