Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the IPC:
    • The black electrical connector (1)
    • The natural electrical connector (2)

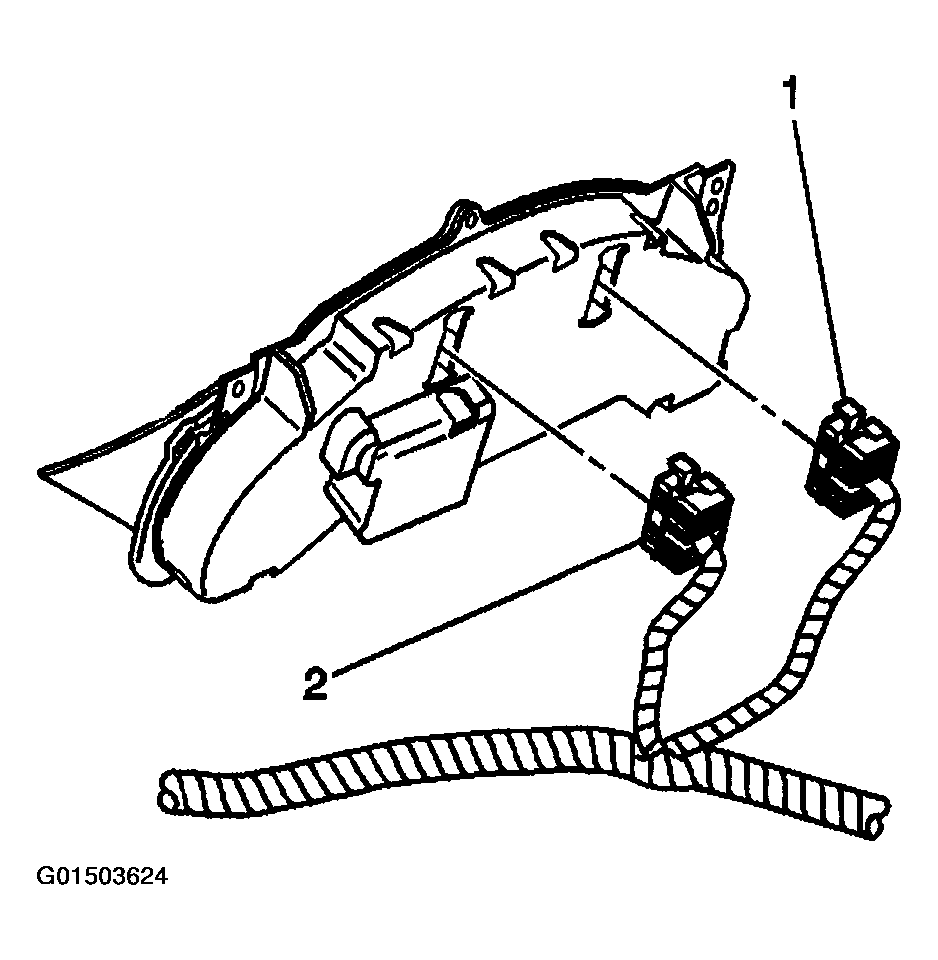

    Fig 1: Connecting Electrical Connectors To Instrument Panel Cluster
    G01503624Courtesy of GENERAL MOTORS CORP.
  2. Position the locating pins to the locating pin receivers in the IP.
  3. Install the IPC by rotating the top of the IPC inward.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the IPC screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the IPC trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

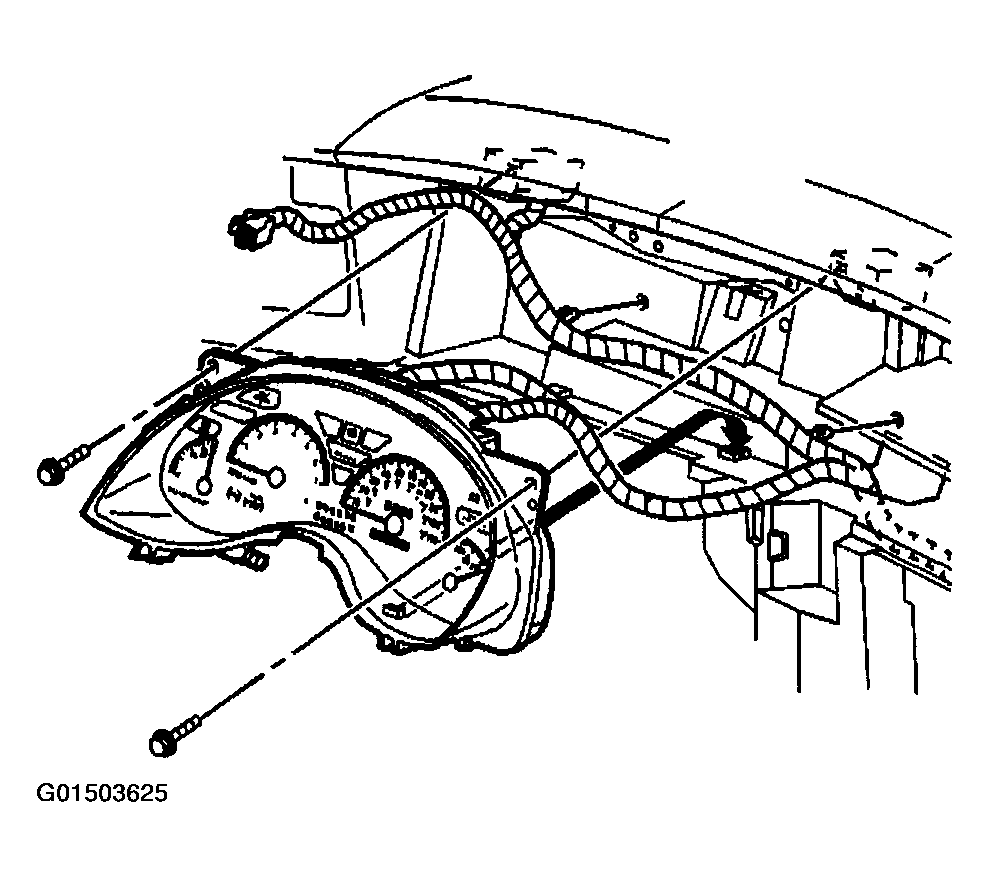

    Fig 2: Installing Instrument Panel Cluster Screws
    G01503625Courtesy of GENERAL MOTORS CORP.
