Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the rubber knob from the trip meter reset stem by pulling rearward.

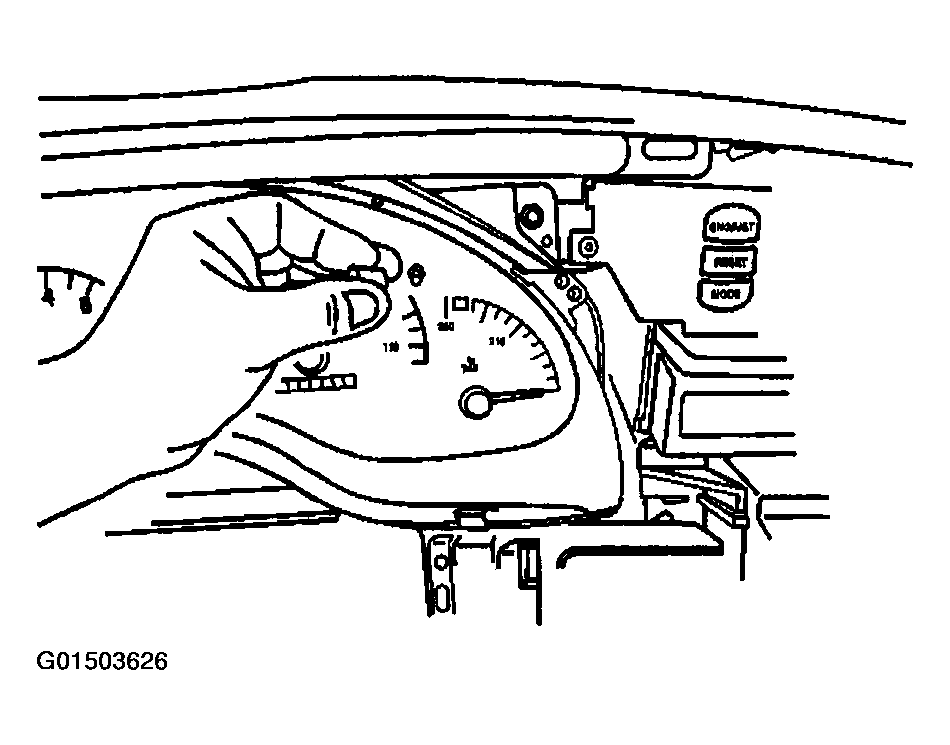

    Fig 1: Removing Rubber Knob From Trip Meter Reset Stem
    G01503626Courtesy of GENERAL MOTORS CORP.
  3. Remove the IPC lens screws.

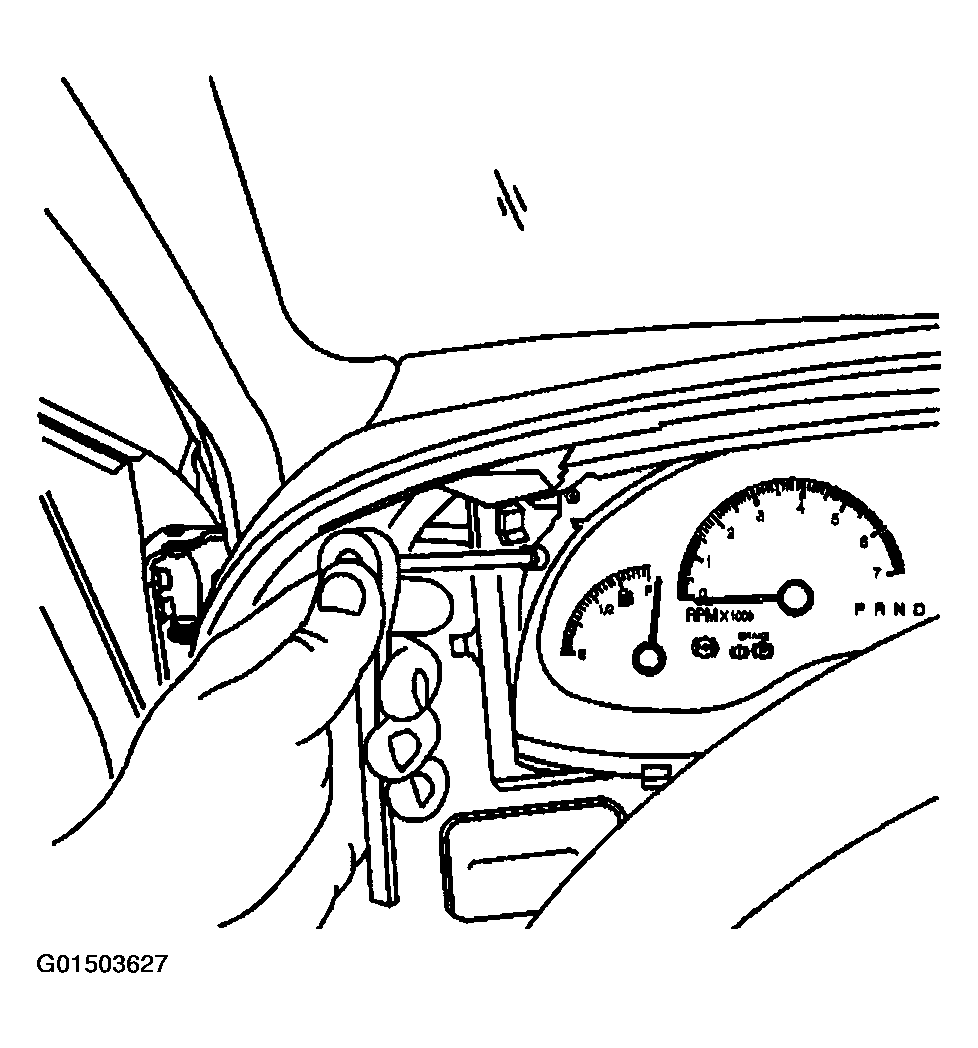

    Fig 2: Removing Instrument Panel Cluster Lens Screws
    G01503627Courtesy of GENERAL MOTORS CORP.
  4. Remove the IPC lens.

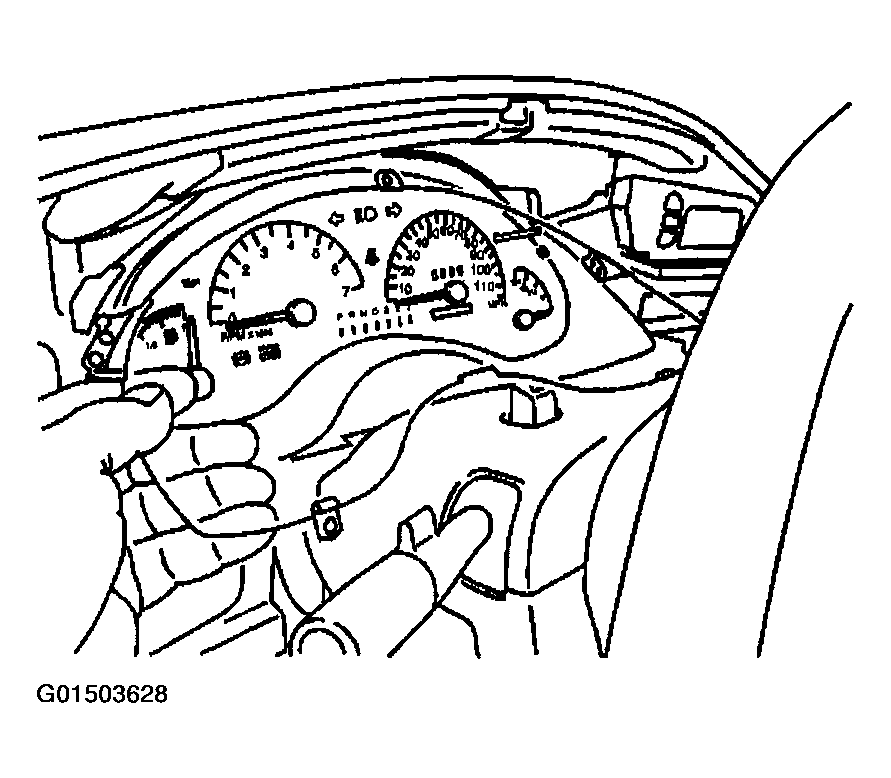

    Fig 3: Removing Instrument Panel Cluster Lens
    G01503628Courtesy of GENERAL MOTORS CORP.
