Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lens to the IPC.

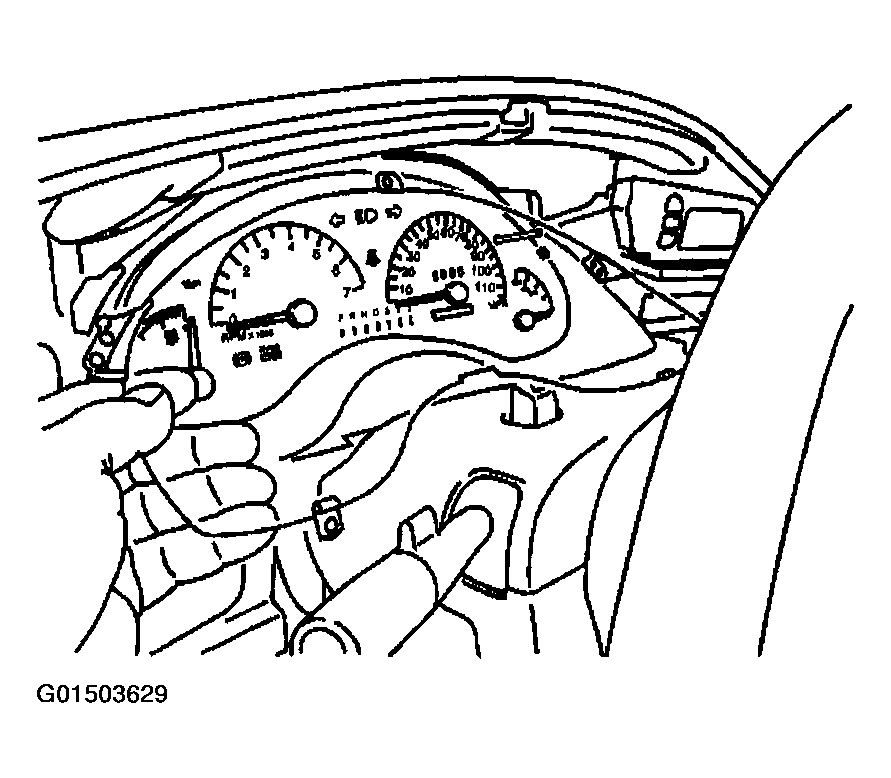

    Fig 1: Installing Instrument Panel Cluster Lens
    G01503629Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice FASTENER NOTICE in Cautions and Notices.
  2. Install the IPC lens screws.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

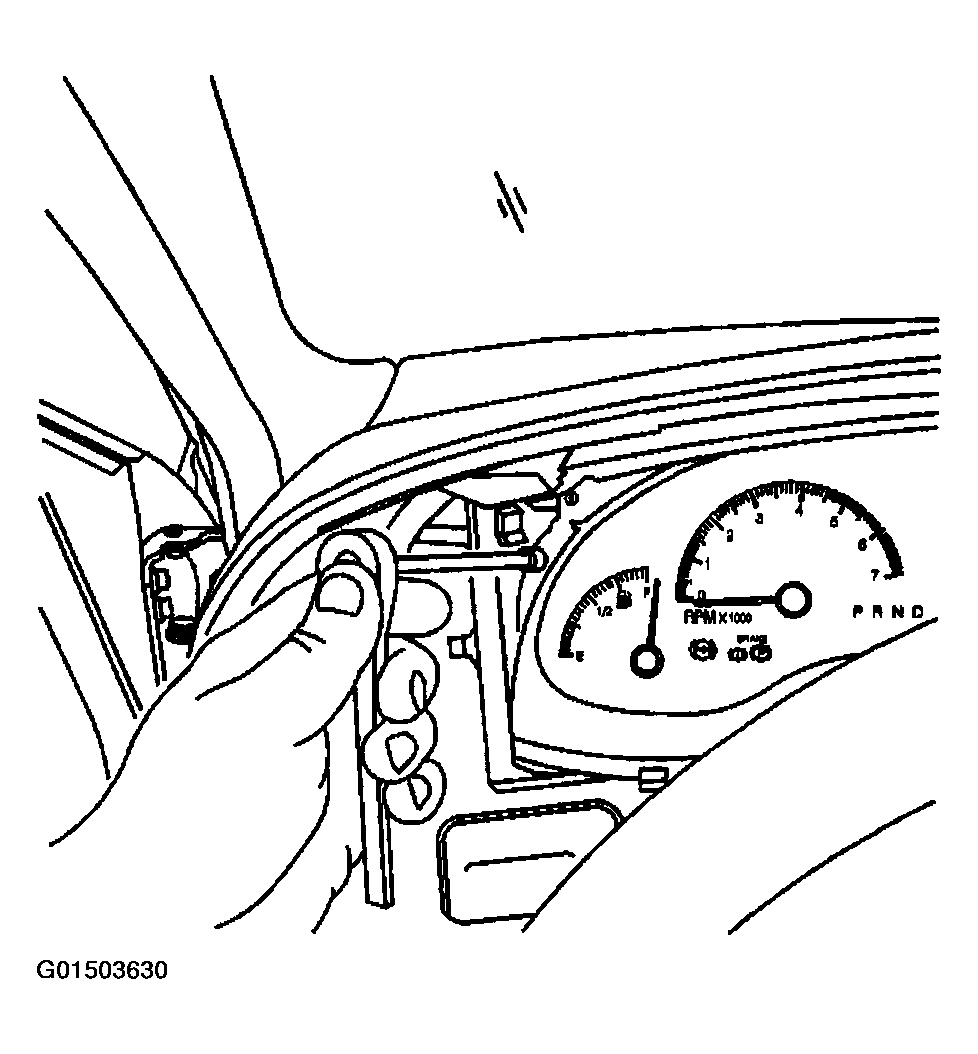

    Fig 2: Installing Instrument Panel Cluster Lens Screws
    G01503630Courtesy of GENERAL MOTORS CORP.
  3. Remove the protective cover from the instrument cluster lens, if new.

    Push the rubber knob onto the trip meter reset stem.

  4. Install the IPC trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

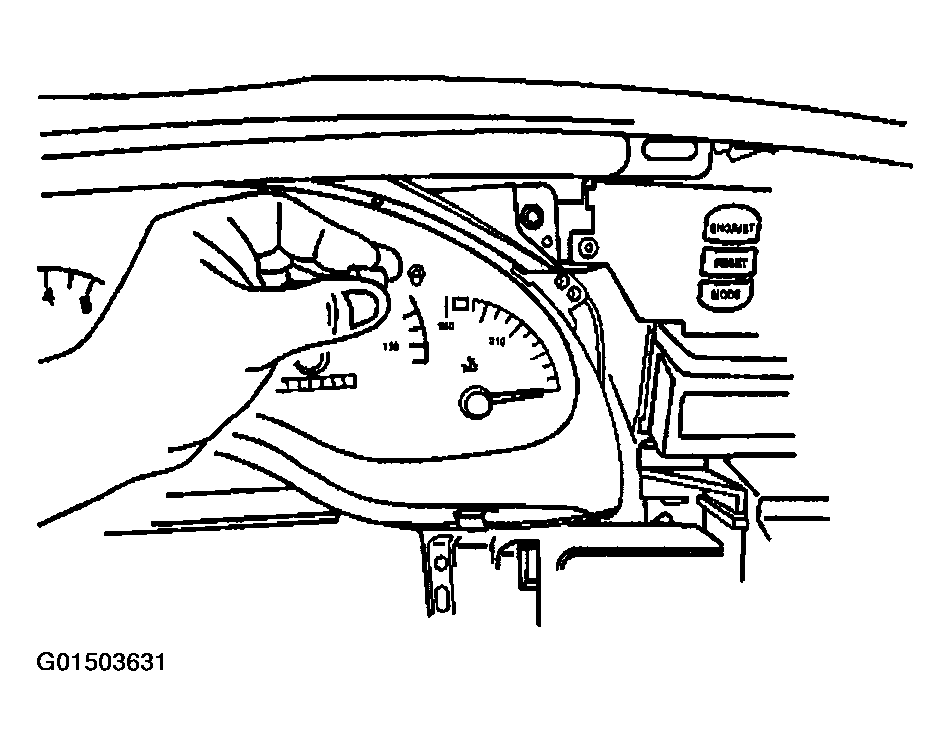

    Fig 3: Installing Rubber Knob Onto Trip Meter Reset Stem
    G01503631Courtesy of GENERAL MOTORS CORP.
